3.14 Modifying parameters

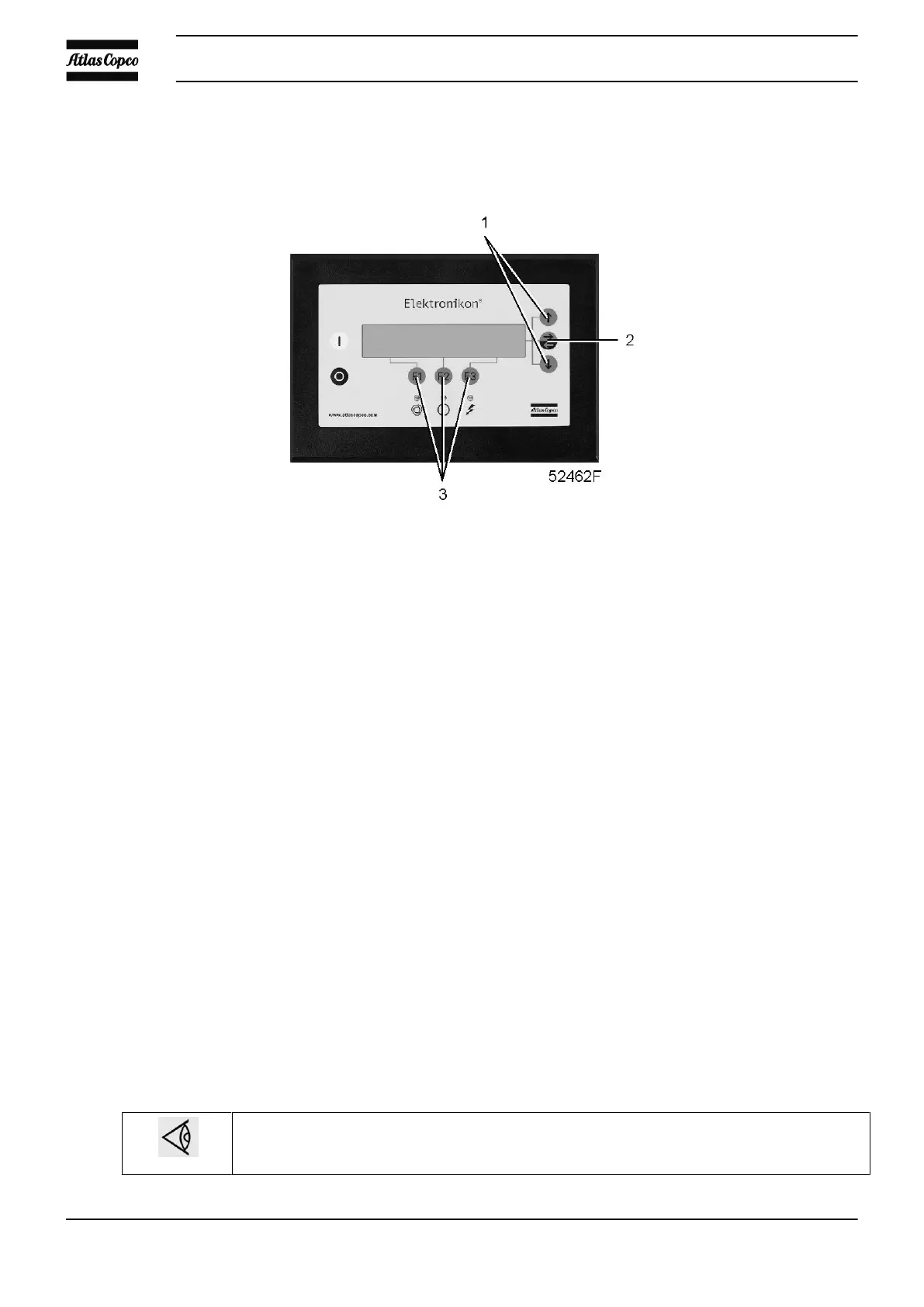

Control panel
Function
To modify a number of parameters. Consult the menu flow in section Control programs.
Procedure
Starting from the Main screen (see Main screen menu):
• Press the key “Menu” (F1).
• Press the arrow down key (1) until “Modify Parameters” is followed by a horizontal arrow.
• Activate the menu by pressing the tabulator key (2).
• The first item “Parameters” will be followed by a horizontal arrow.
• Press the tabulator key (2): the first items and their settings will appear.
• Press the arrow down key (1) until the parameter to be modified is followed by a horizontal arrow.
Modifying the loading pressure setpoint
If desired, the operator can program two pressure bands (Loading pressure/Unloading pressure and
Loading pressure 2/Unloading pressure 2).
• Consult the section Procedure to select “Loading Pressure”.
• The screen shows the current setting. To modify this setting, press the key “Modify” (F2); the setting will
blink.
• The key “Limits” (F2) can be used to find out the limitations for the parameter.
• Use the scroll keys (1) to change the setting.
• Press the key ”Program” (F1) to program the new value or the key “Cancel” (F3) to cancel the modification
operation.
• The procedure to modify other parameters pressure is similar.
The regulator will not accept new values beyond the limitations. Press the key “Limits” to check
the limitations for the parameter. Consult Programmable settings for the most important
settings.
Instruction book
38 2920 1475 06
