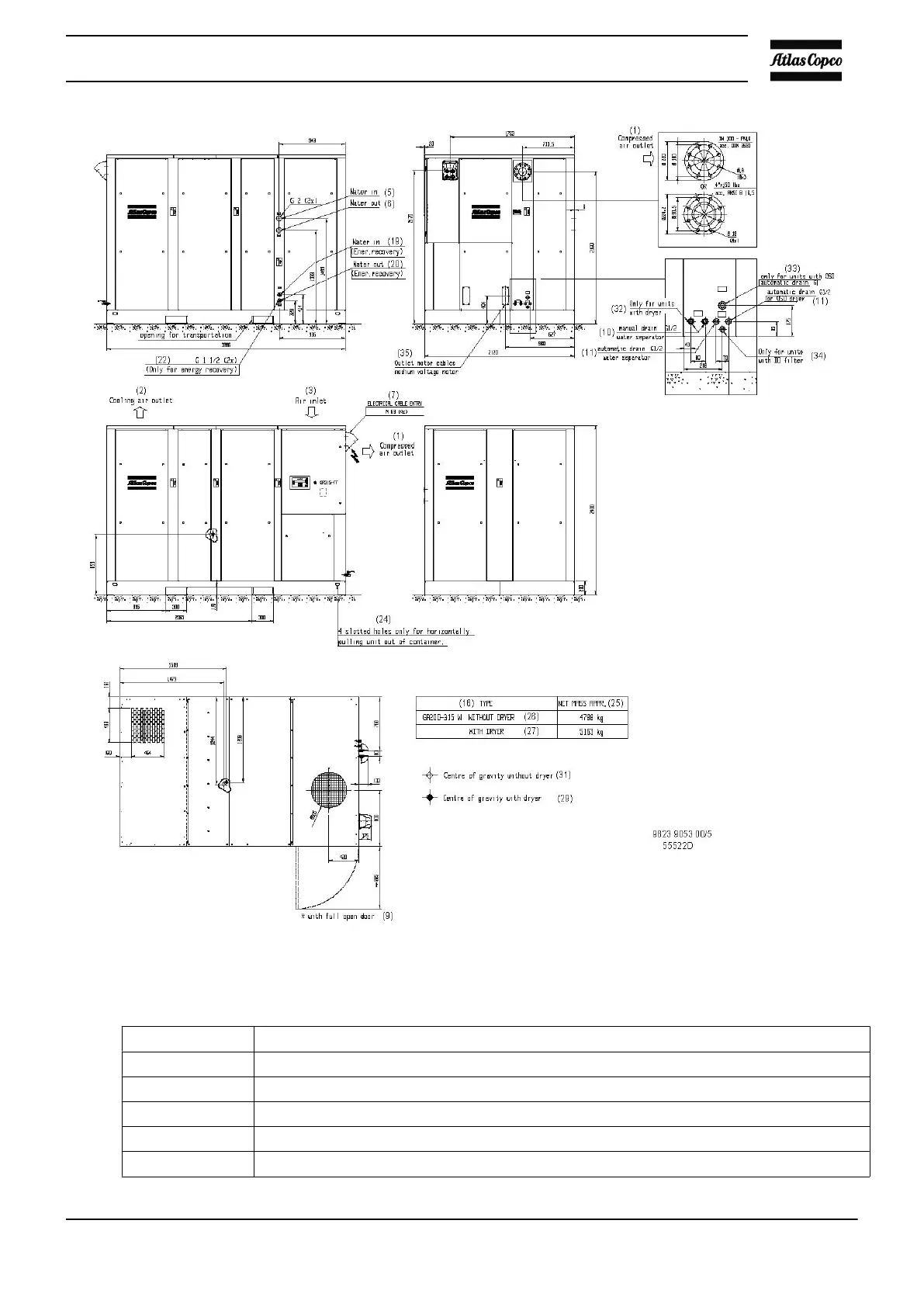

Dimension drawing of GA200/250 and GA315 60 Hz, water-cooled
Text on drawing
Reference Designation
(1) Compressed air outlet
(2) Cooling air outlet
(3) Air inlet
(4) Cooling air inlet
(5) Water in
Instruction book
2920 1475 06 59
