Installation EN MINI-REG, MIDI-REG, MAXI-REG
6
© Atlas Copco Industrial Technique AB - 9839 1513 01

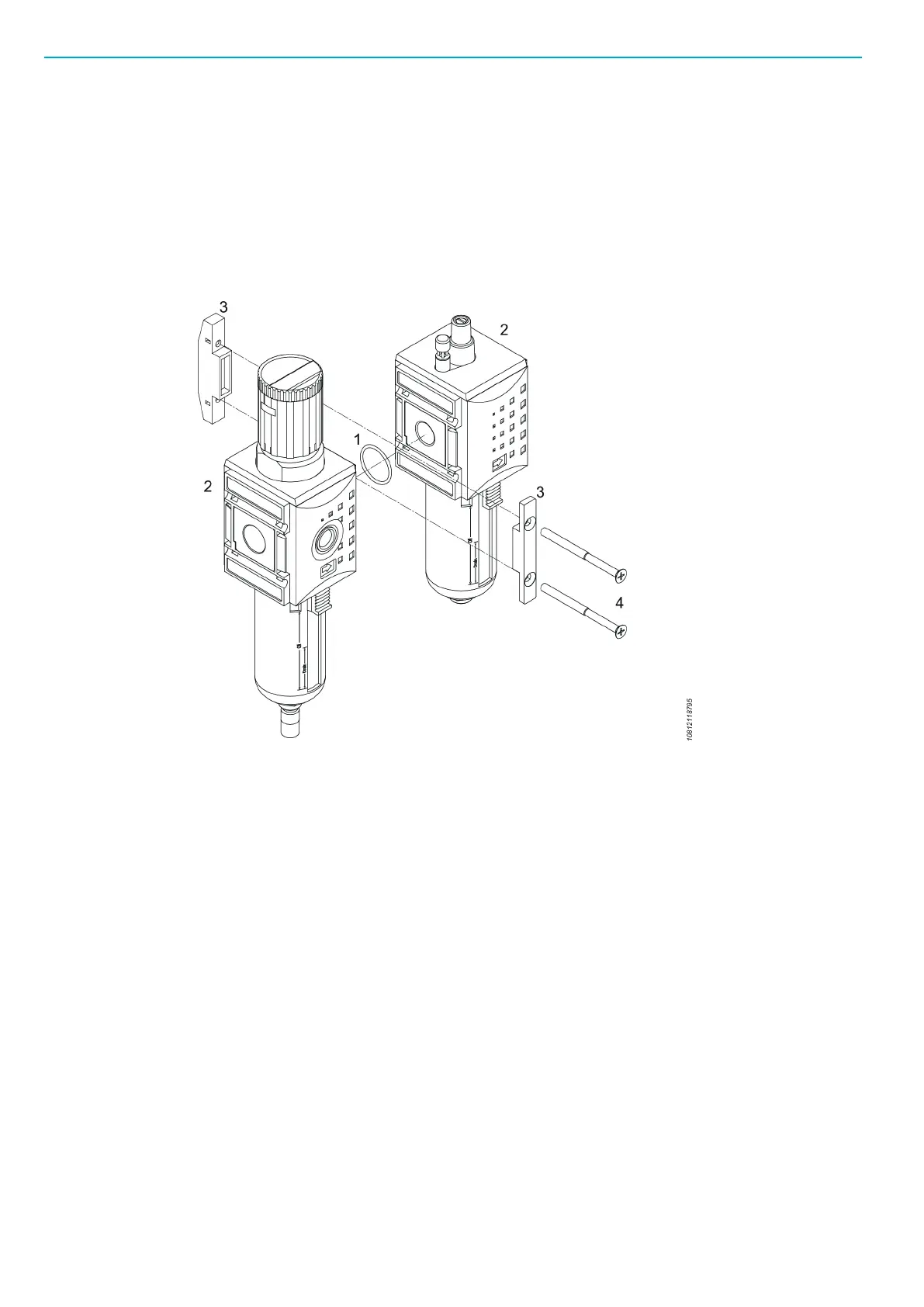

2. Place the modules on the sides.
3. Push the two parts of the coupling kit together.
4. Tighten the two screws manually. Use maximum tightening torque depending on the model, as fol-
lows:
■ MINI: 0.5 Nm (4.4 in.lbs)
■ MIDI: 2.5 Nm (22 in.lbs
■ MAXI: 3.0 Nm (26.6 in.lbs)
Mounting the wall bracket
To mount the wall bracket:
1. Insert the sealing ring.
2. Place the wall bracket onto the side of the module.
3. Push on the coupling element from the front.
