MINI-REG, MIDI-REG, MAXI-REG EN Installation
© Atlas Copco Industrial Technique AB - 9839 1513 01
7

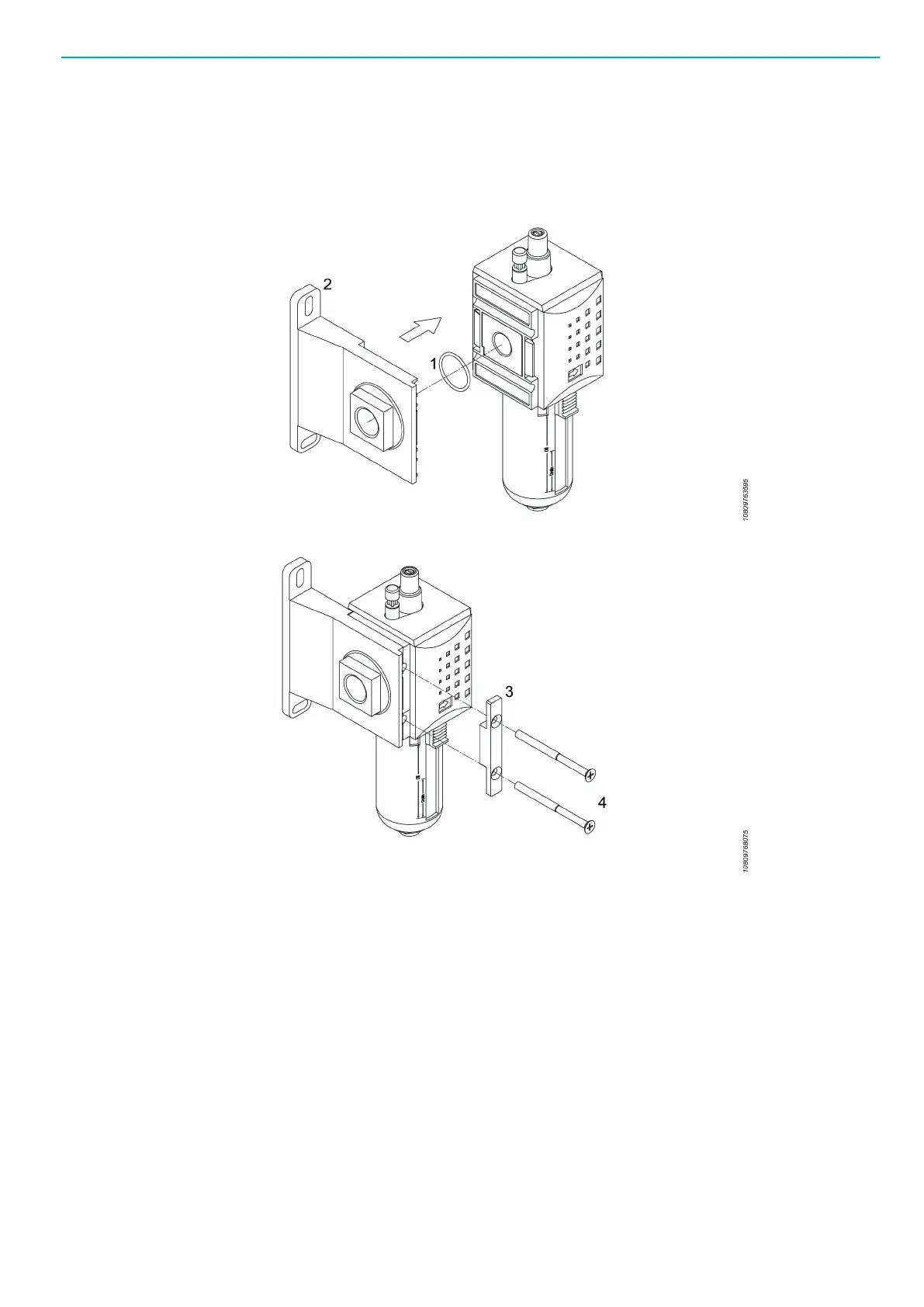

4. Tighten the two screws. Use maximum tightening torque depending on the model, as follows:
■ MINI: 0.5 Nm (4.4 in.lbs)
■ MIDI: 2.5 Nm (22 in.lbs
■ MAXI: 3.0 Nm (26.6 in.lbs)
Installing the mounting plate and control panel nut
1. Guide the module (pressure regulator or filter pressure regulator) through the hole of the mounting
plate.
2. Guide the control panel nut over the setting knob.
3. Tighten the control panel nut to a maximum tightening torque depending on the model, as follows:
■ MINI: 8 Nm (70.8 in.lbs)
■ MIDI: 10 Nm (88.5 in.lbs)
■ MAXI: 10 Nm (88.5 in.lbs)
