Atlas Copco TPS Control User Manual

TPS Control EN User guide
© Atlas Copco Industrial Technique AB - 9836 5819 01
51
It is possible to save a printout as a file on the PC. This function is activated before you trigger the print-
out.
1. In PC, select Transfer>Capture Text. A new window will appear.
2. Name the text file and choose a location in which to store it. Click Start.
3. In TPS Control, go to the submenu Print-out in Service.
4. Determine whether you want to print parameters, jobs or all collected information.

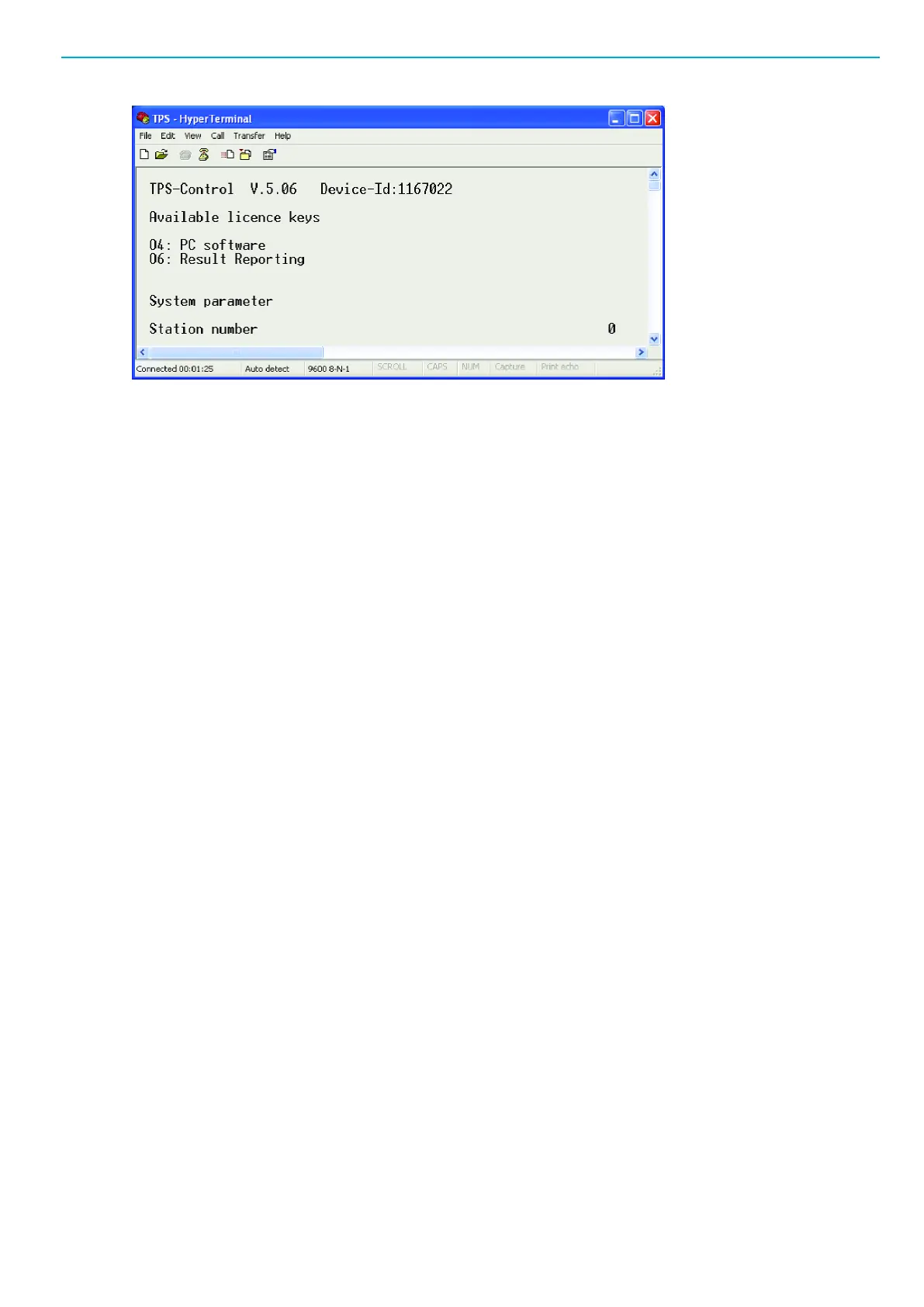

5. The selected option triggers a printout in the HyperTerminal window.
6. In PC, select Transfer>Capture Text and click Stop.

Atlas Copco TPS Control Specifications

General

Brand	Atlas Copco
Model	TPS Control
Category	Controller
Language	English
