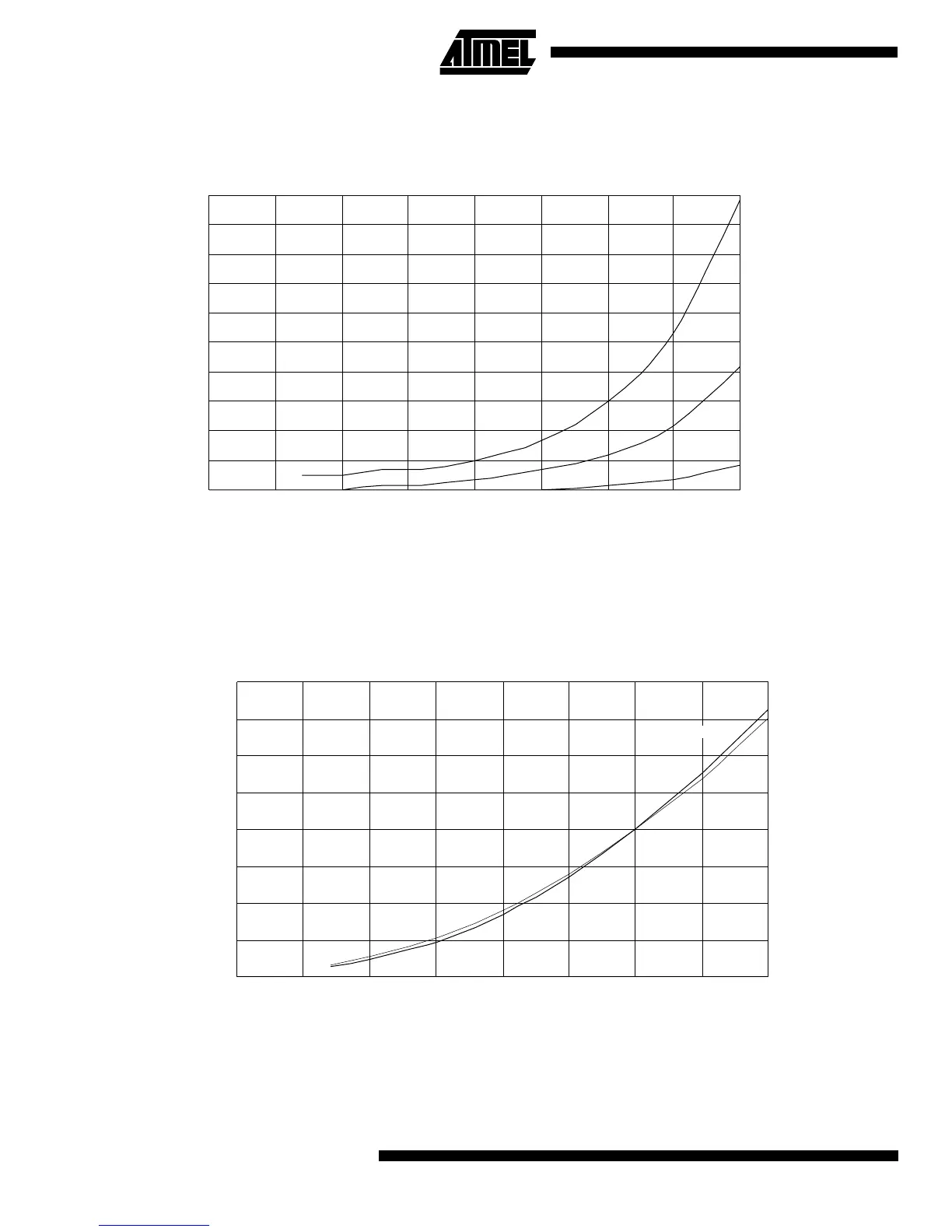

Figure 61. Power Down Supply Current vs. V
CC
Figure 62. Power Down Supply Current vs. V
CC
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2 2.5 3 3.5 4 4.5 5 5.5 6
T = 85˚C
A
T = 25˚C
A
POWER DOWN SUPPLY CURRENT vs. V
cc
I
cc
(µΑ)
V
cc
(V)
WATCHDOG TIMER DISABLED
T = 45˚C
A
T = 70˚C
A
0
20
40
60
80
100
120
140
160
2 2.5 3 3.5 4 4.5 5 5.5 6
T = 85˚C
A
T = 25˚C
A
POWER DOWN SUPPLY CURRENT vs. V
cc
I
cc
(µΑ)
V
cc
(V)
WATCHDOG TIMER ENABLED
