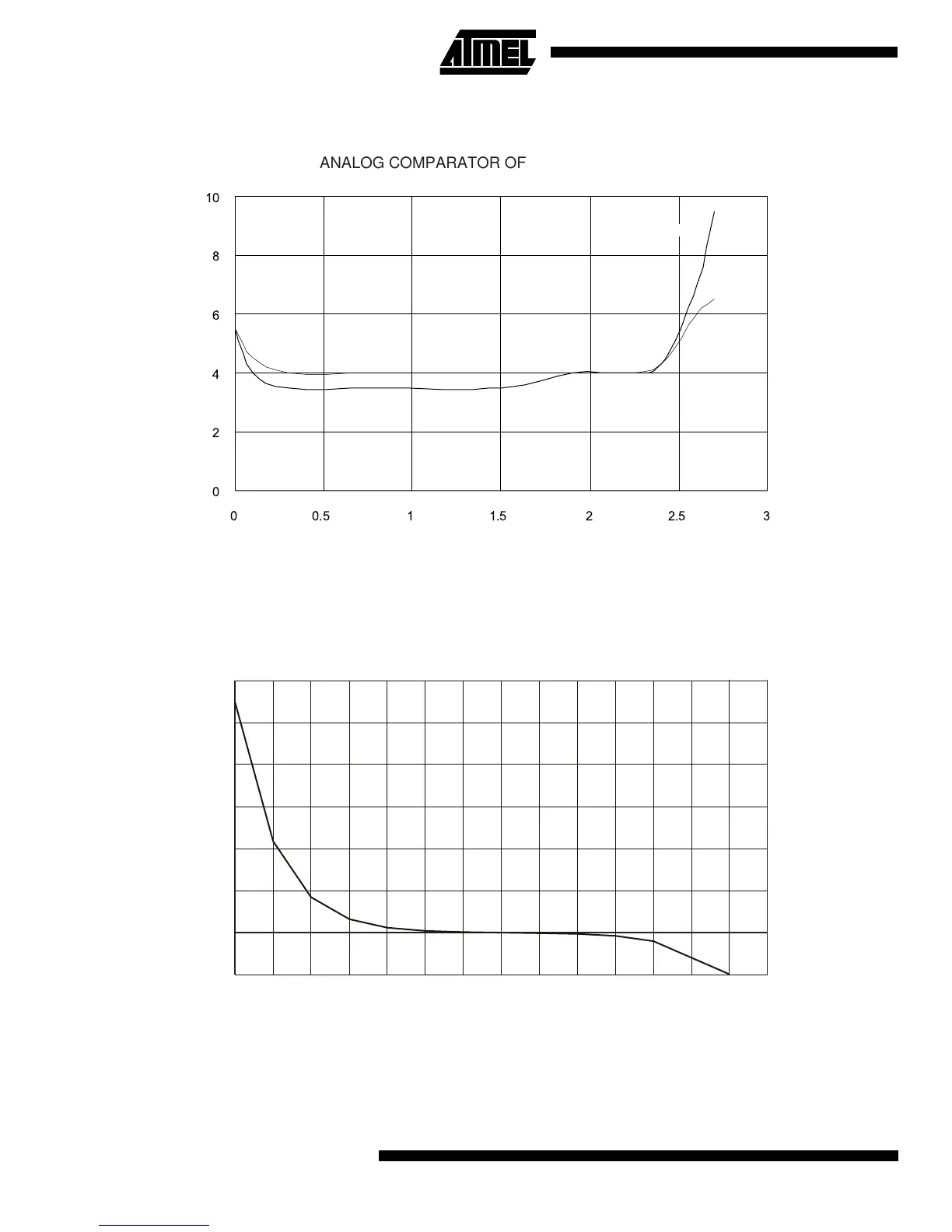

Figure 65. Analog Comparator Offset voltage vs. Common Mode Voltage
Figure 66. Analog Comparator Input Leakage Current
0
2
4
6
8
10
0 0.5 1 1.5 2 2.5 3
ANALOG COMPARATOR OFFSET VOLTAGE vs.
COMMON MODE VOLTAGE
Common Mode Voltage (V)
Offset Voltage (mV)
V = 2.7V
cc
T = 85˚C
A
T = 25˚C
A
60
50
40
30
20
10
0
-10
0 0.5 1.51 2 2.5 3.53 4 4.5 5 6 6.5 75.5
ANALOG COMPARATOR INPUT LEAKAGE CURRENT
T = 25˚C
A
I (nA)
ACLK
V (V)
IN
V = 6V
CC
