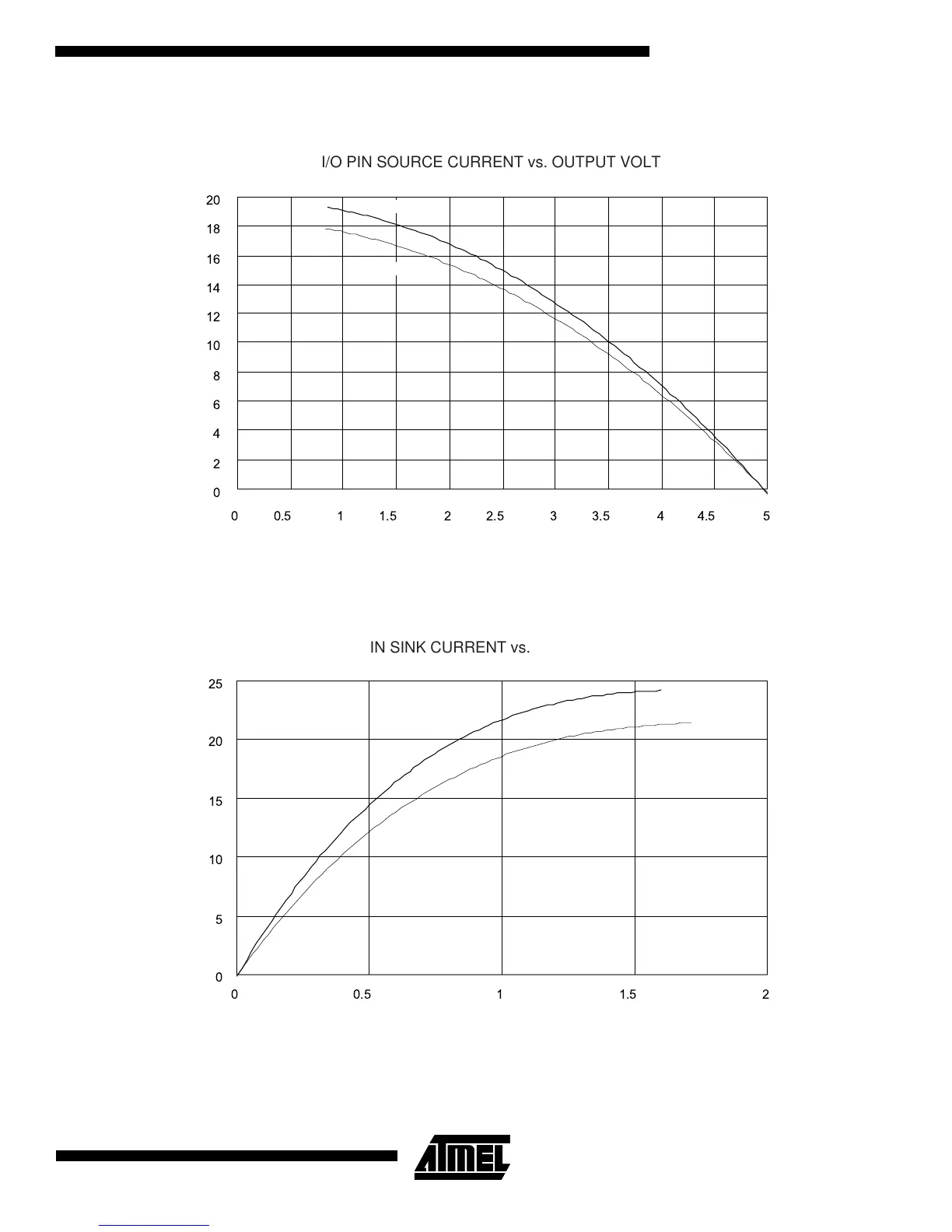

Figure 71. I/O Pin Source Current vs. Output Voltage
Figure 72. I/O Pin Sink Current vs. Output Voltage
0
2
4
6
8
10
12
14
16
18
20
0 0.5 1 1.5 2 2.5 3 3.5 4 4.5 5
I/O PIN SOURCE CURRENT vs. OUTPUT VOLTAGE
V = 5V
cc
I (mA)
OH
V (V)
OH
T = 85˚C
A
T = 25˚C
A
0
5
10
15
20
25
0 0.5 1 1.5 2
I (mA)
OL
V (V)
OL
T = 85˚C
A
T = 25˚C
A
I/O PIN SINK CURRENT vs. OUTPUT VOLTAGE
V = 2.7V
cc
