AT90S4414/8515
89

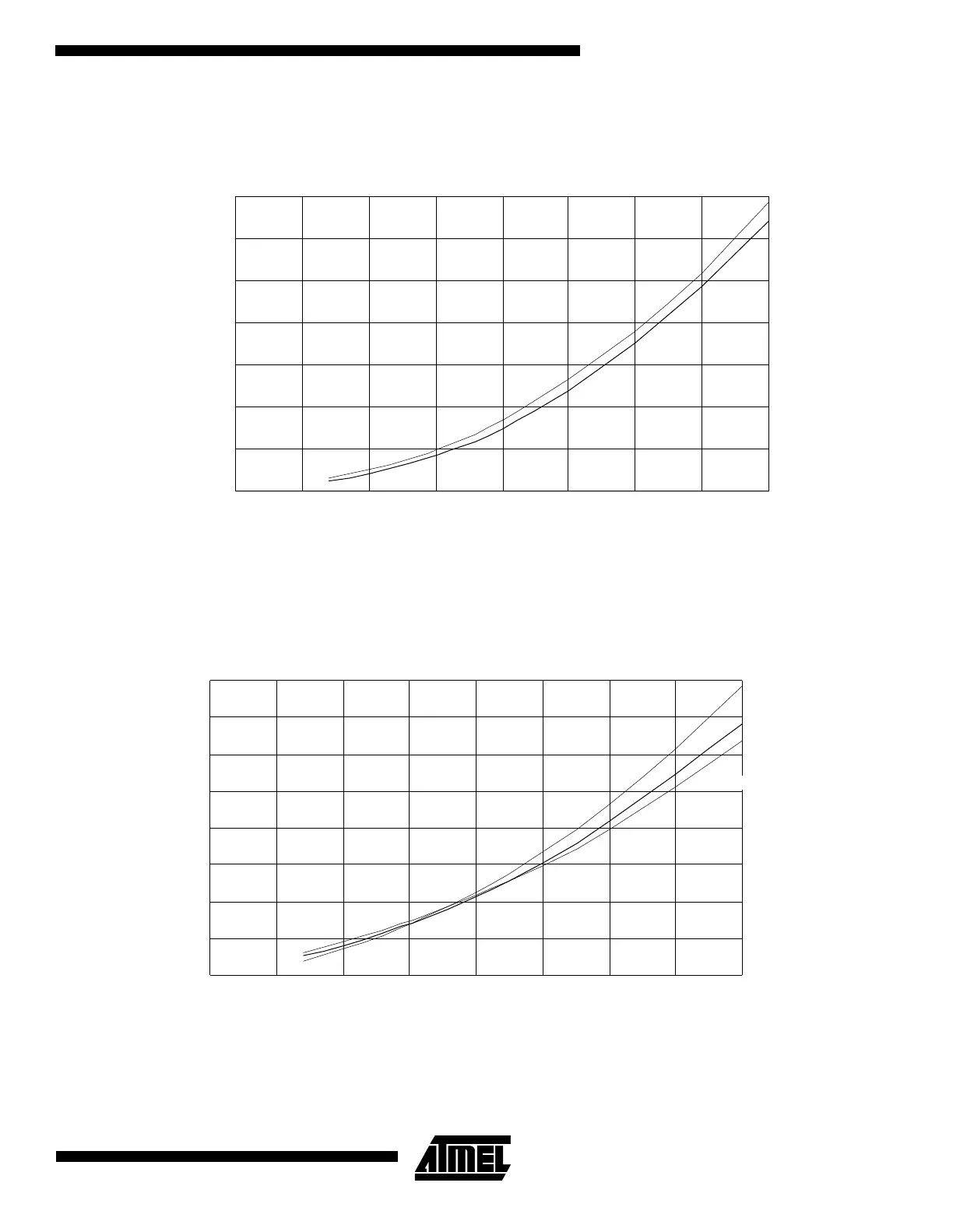

Figure 74. Power Down Supply Current vs. V
CC
Figure 75. Analog Comparator Current vs. V
CC
0
20
40
60
80
100
120
140
2 2.5 3 3.5 4 4.5 5 5.5 6
T = 85 ˚ C
A
T = 25 ˚ C
A
POWER DOWN SUPPLY CURRENT vs. V
cc
I
cc
(µΑ)
V
cc
(V)
WATCHDOG TIMER ENABLED
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
2 2.5 3 3.5 4 4.5 5 5.5 6
ANALOG COMPARATOR CURRENT vs. V
cc
I
cc
(mA)
V
cc
(V)
T = 25˚C
A
T = 85˚C
A
T = -40˚C
A
