Atmel ATmega8535L - Page 293

293
ATmega8535(L)
2502K–AVR–10/06

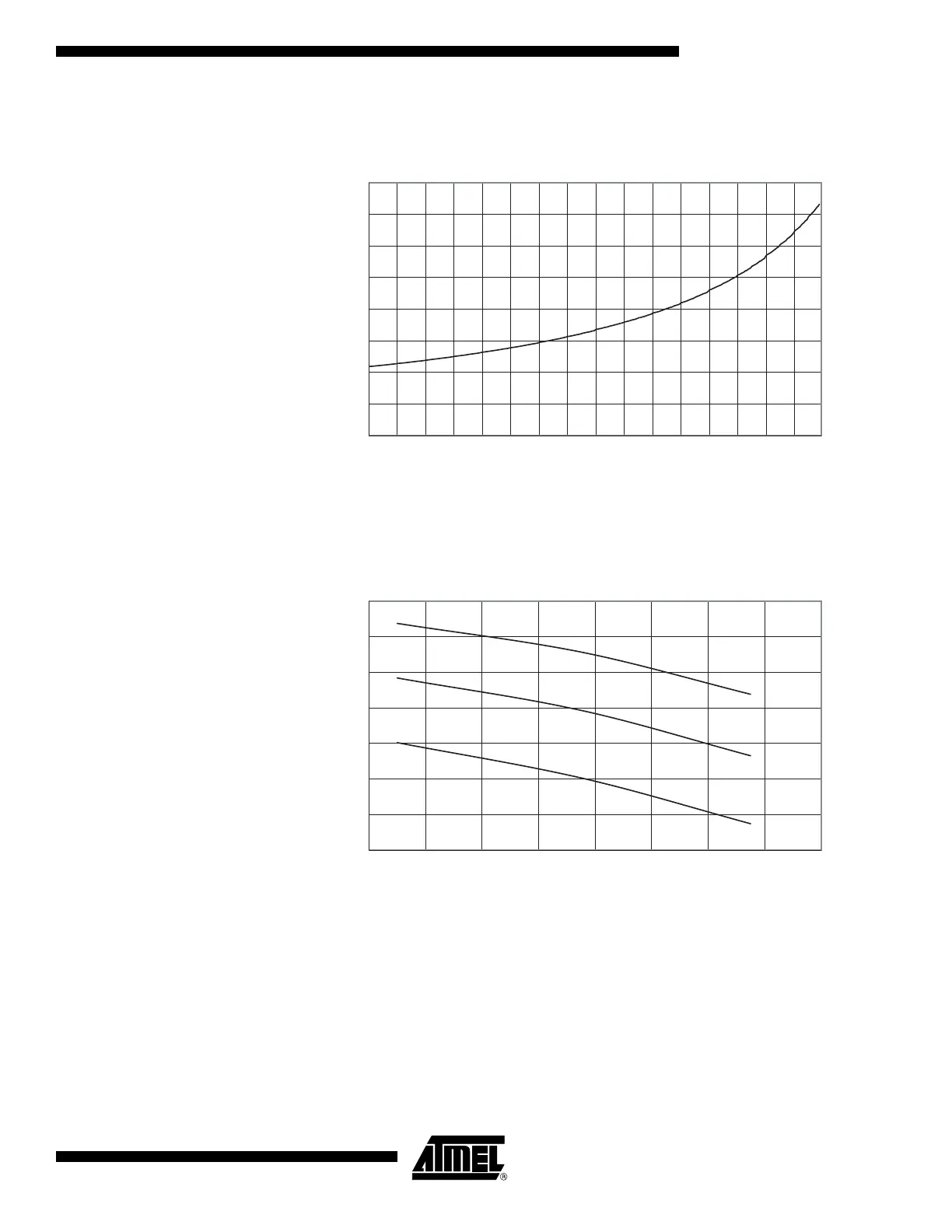

Figure 183. Calibrated 2 MHz RC Oscillator Frequency vs. Osccal Value
Figure 184. Calibrated 1 MHz RC Oscillator Frequency vs. Temperature
CALIBRATED 2 MHz RC OSCILLATOR FREQUENCY vs. OSCCAL VALUE
0
0.5
1
1.5
2
2.5
3
3.5
4
0 163248648096 112 128 144 160 176 192 208 224 240
OSCCAL VALUE
F
RC
(MHz)
CALIBRATED 1 MHz RC OSCILLATOR FREQUENCY vs. TEMPERATURE
0.9
0.92
0.94
0.96
0.98
1
1.02
1.04
-50 -30 -10 10 30 50 70 90 110
Temp (C˚)
F
RC
(MHz)
5.5V
2.7V
4.0V
