(2) Carefully push the sacrificial window onto the objective lens un-

til it stops. Turn the sacrificial window clockwise until it snaps into

place.



Perform the following procedure to install the LIF onto the objective

lens.



(1) Remove the container/wrench (Figure 1.3.) from the carrying

case pouch.

CAUTION





-



(2) If the objective lens cap or sacrificial window is on the objective

lens of the monocular, remove it.

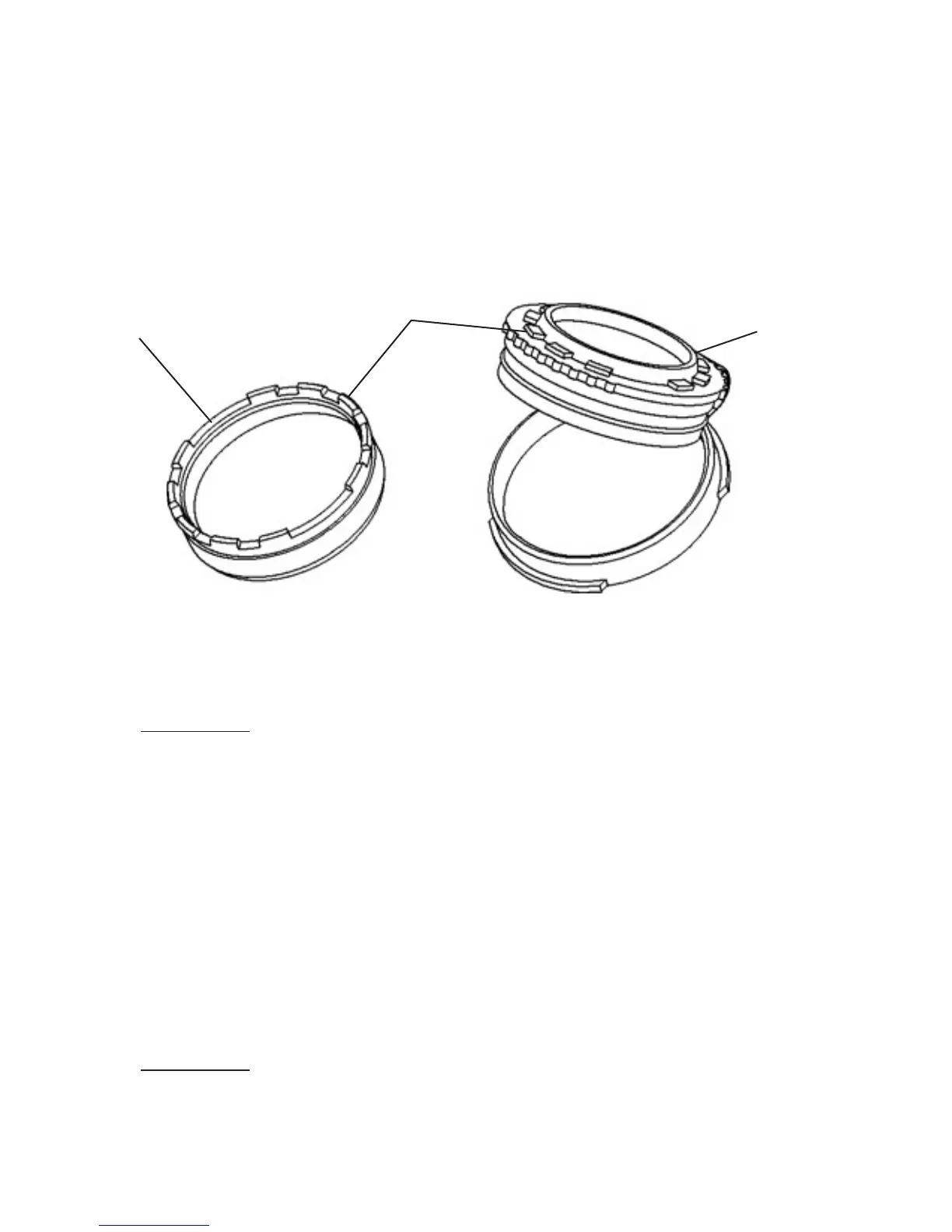

(3) Carefully open the container/wrench and remove the LIF. Refer

to Figure 2.9.

(4) Hold the LIF by the ridged end (see Figure 2.9.) and thread it

clockwise, into the end of the objective lens.

CAUTION



LIF

RIDGES

COUNTAINER/



ATN PVS-14 User Manual

Questions and Answers:
