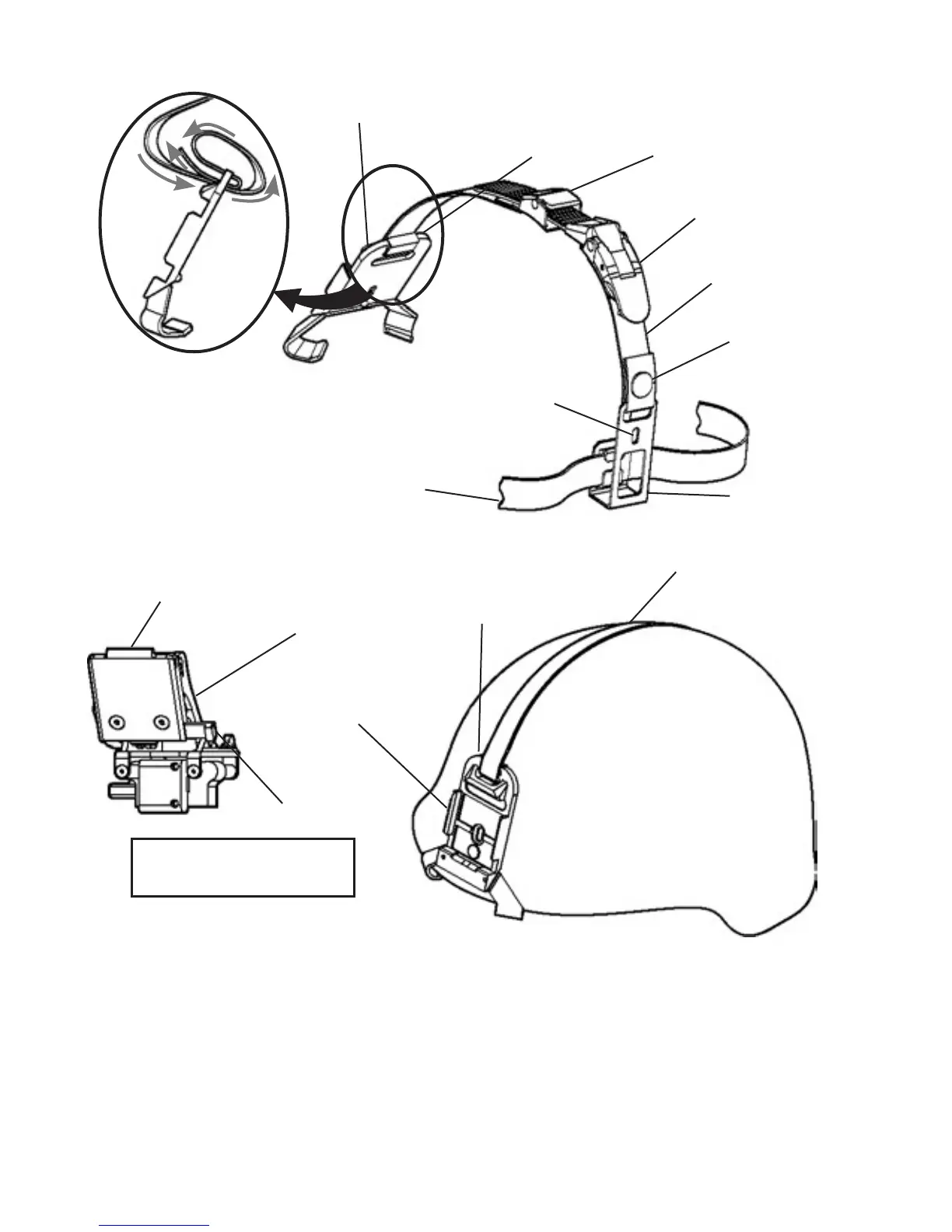

(5) Hook the rear bracket (see Figure 2.13.) on the center of the
back of the helmet and lay the strap with helmet mount bracket over
the top of the helmet.
(6) Hook the helmet mount bracket in the center of the front lip of the
helmet and hold it in place (see Figure 2.14.).
TOP EDGE
OF MOUNT
MOUNT
RELEASE
KEEPER
HELMET
MOUNT
BRACKET
STRAP
MOUNT IS ROTATED
90° FOR CLARITY
KEEPER
HELMET
MOUNT
BRACKET
CATCH
BUCKLE
LEVER
STRAP
REAR
SNAP
REAR
MOUNTING
HOLE
REAR
BRACKET
NAPE
STRAP
