OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
17

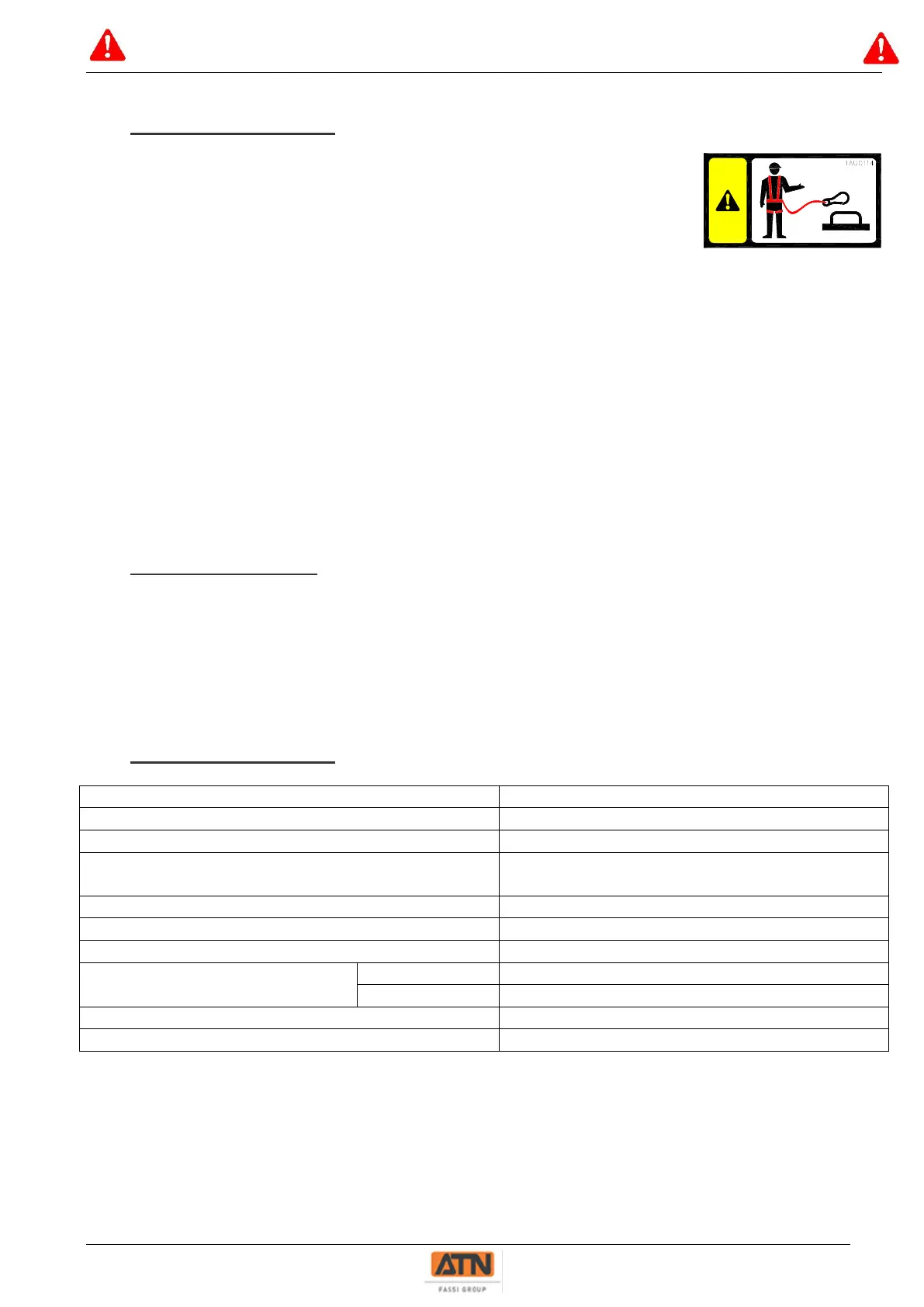

2.5. FALLING HAZARDS
• It is recommended that anyone on the platform wears a safety
harness connected to one of the hooking points provided for this
purpose on the work platform. Only attach one harness to one
hooking point.
• Check the condition of the guard rail before you use the machine. Check that the access rail
drops back correctly into closed position.
• Keep both feet flat on the platform floor at all times. Do not sit or climb onto the guard rails.
Do not use a ladder or climb onto any objects on the platform to reach a greater height.
• When the platform is in raised position, do not use the lifting structure to leave the platform.
• Do not leave or access the work platform until it is fully lowered.
• Remove all debris, grease or any other slippery substance from shoes and from the toe-
boards and floor of the platform.
• Always face the machine when accessing or leaving the machine. Keep 3 contact points with
the machine at all times: both hands and one or both feet and one hand.
2.6. OTHER HAZARDS
• During welding operations from the platform, do not use the machine as earth.
• During welding or metal cutting operations, make sure that you protect the machine's
components from projections of fusing metal (control station, electric cables, hydraulic hoses,
cylinders, etc.). Avoid any projection on/to the machine, in particular to the fuel tank.
2.7. OPERATION LIMITS
Model
Zebra 16
Max floor height
14.40 m
Maximum working height
16.40 m
Maximum number of people accepted on the
work platform
2
Maximum load on the platform (distributed)
230kg
Maximum wind speed
12.5m/s (45km/h)
Maximum manual force
400 Newton
Maximum tilt
Transversal
5 degrees
Longitudinal
5 degrees
Max slope (see Note)
45%
Usage temperature
-20 … +60°C
-NOTE-
Do not run the diesel engine for over 10 minutes with a tilt or slope of over 35%
