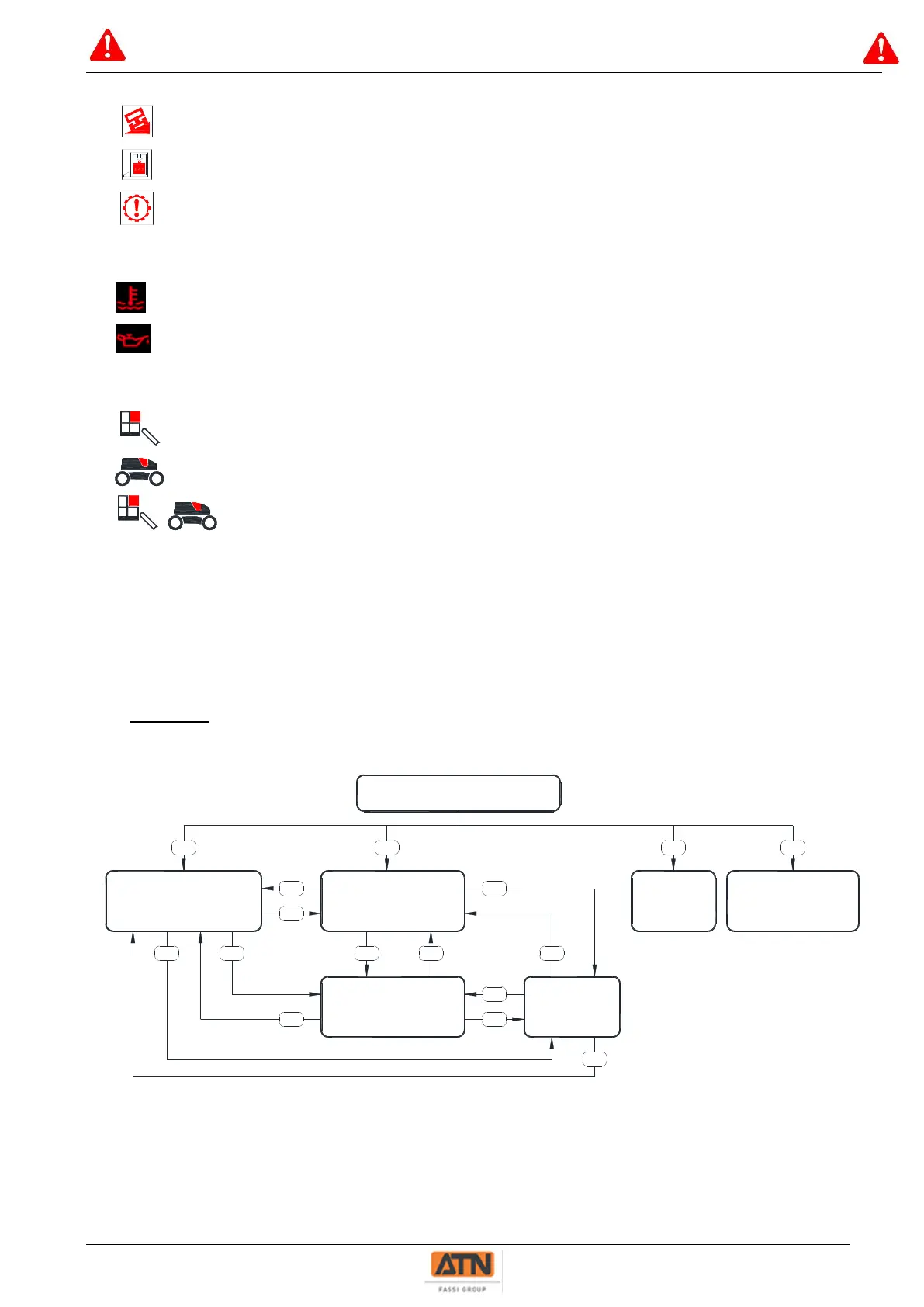

OPERATOR AND SAFETY MANUAL
1NO0035UK-05
Zebra 16
55
FAILURE
SELECTOR
FAILURE
SELECTOR
FAILURE
SELECTOR
Tilt
Overload
Hydraulic transmission fault:
- Hydraulic oil temperature above 100°C.
- Boost pressure lower than 15 bars.
Diesel engine temperature fault
Diesel engine oil pressure fault
6- Control station selection lights:
Selected platform control station.
Ground control station selected.
Control station selection fault.
7- Hourmeter (engine running).
8- Indication - Maintenance operation required
9- Menu / Function selection buttons
10- Scroll (Up / Down) / Validation buttons
11- Settings menu access button
12- Back to previous screen button.
8.2. MENUS
Ecran d'accueil
Direction
Transmission
Etat des
Commandes
Infos
Service
Diagnostic
F2
F3
F4
Moteur thermique
F1
F3
Etat des
Commandes
Poste Bas
F4
de la Plate-forme
F2
F2
Safeties
F3
F4
F2
F1
F3
F4
F1
F1
Diagnostic
Service
Platform
Command
Status
Welcome screen
Transmission
steering
Diesel engine
Ground Station
Command
Status
