7.2. LUBRICATION
7.2.1 LUBRICANT SPECIFICATIONS - CAPACITIES
CODE
DESCRIPTION
CAPACITY
NOTES
GR
Multi-Use grease
-
Adhesive grease, resistant to water and
extreme pressures
HM
Engine oil (15W40)
7 l
See Section 7.1.3- Engine oil
H46
Hydraulic oil H46
85 l
Fluid for Hydraulic circuits
Kinematic viscosity 46mm²/s @ 40°C
D
Fuel for Diesel engine
60 l
GNR type (Non Road Diesel)

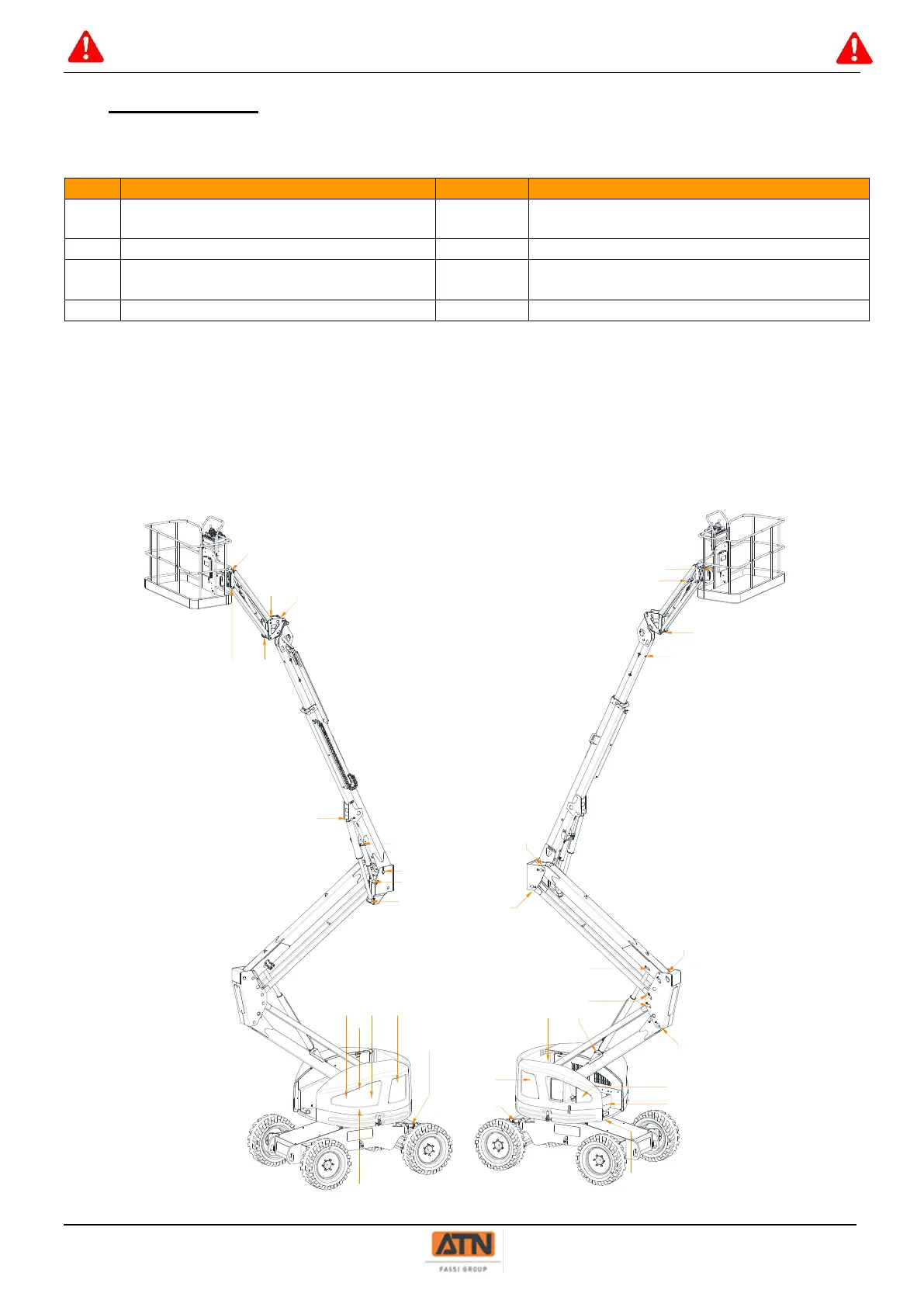

7.2.2 LUBRICATION AND MAINTENANCE POINTS
-NOTE-
Lubrication and maintenance intervals must be reduced if the machine is used
intensively or in a dusty environment.
