• From the work platform control station
1- Depress the enable pedal.
2- Within 5 seconds, tilt the orientation control joystick to the right or to the left to move the
structure in the corresponding direction.
The orientation movement speed is proportional to the joystick displacement.
3- To stop the movement, return the joystick to neutral and release the enable pedal.
4.4.6 WORK PLATFORM ROTATION
• From the ground control station
1- Activate and hold down the validation button. The validation button must be activated
before a movement is commanded.
2- Tilt the rotation command lever up to move the platform to the right or down to move the
platform to the left.
3- To stop the movement, release the command lever or the validation button.
• From the work platform control station
1- Activate the validation pedal.
2- Within 5 seconds, tilt the rotation command lever to the right or left to move the platform
in the corresponding direction.
The rotation movement speed may be adjusted using the speed adjustment gauge.
3- To stop the movement, release the command lever or the validation button.

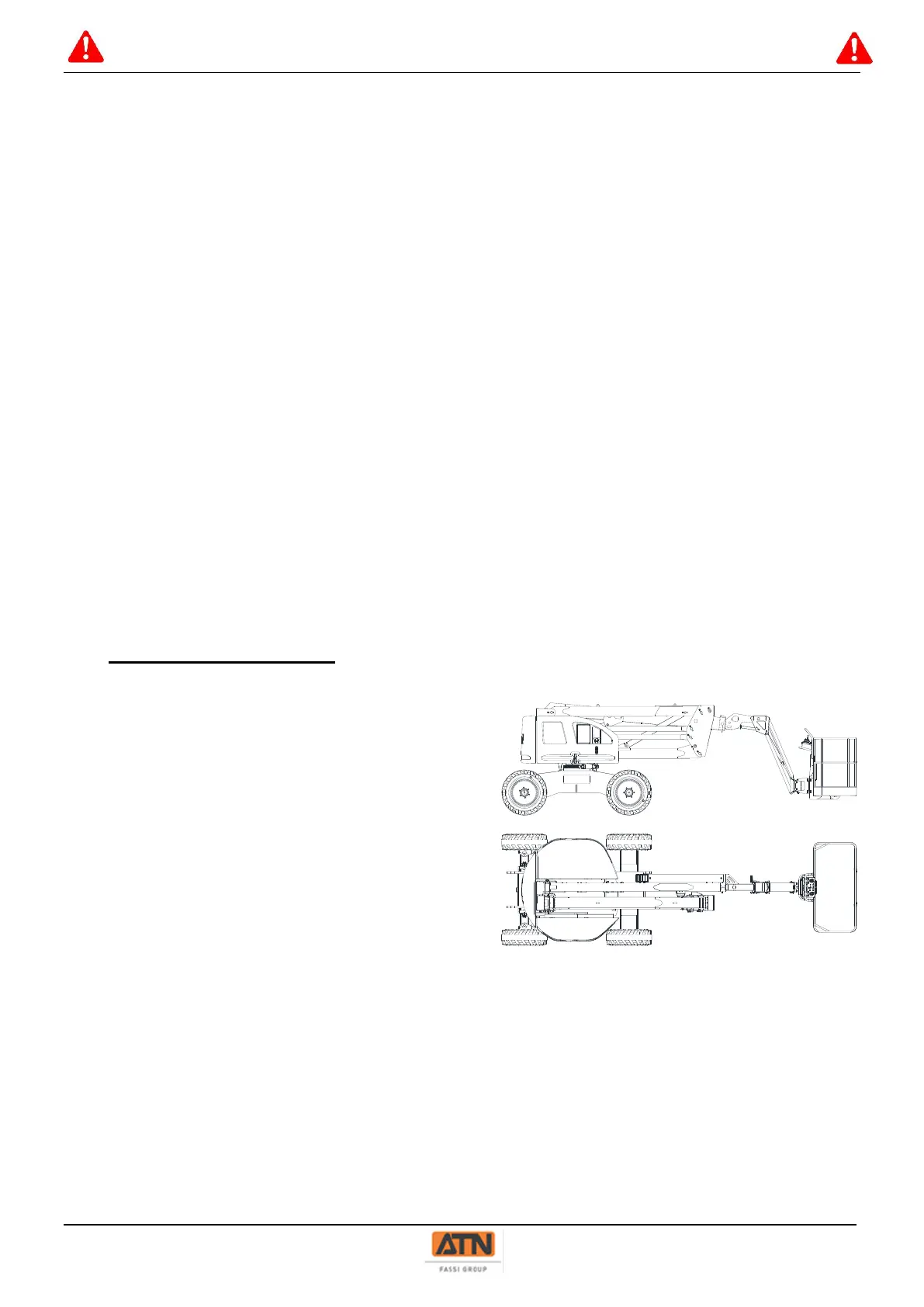

4.5. PARKING - STORAGE
• Park the machine on horizontal ground in
a well protected and ventilated area.
• Take the platform in low position. Position
the structure above the rear axle. Position
the work platform in the axis.
• Straighten up the wheels.
• Place the control station selector to O
position and remove the key to prevent
any unauthorised use.
• Protect the command units if necessary as
well as the instruction or warning stickers
using covers.
• For extended storage:
- Disconnect the battery and set it to charge if necessary. See Section 7-5 Battery.
- Chock the machine's wheels.
• For storage, the machine's length may be reduced by folding back the work platform
under the arms.
1- Remove any material that might be on the work platform.
2- From the control station on the ground, lower arm 2, take the telescope back in, lower
arm 3 and position the work platform at 90° to the right (to the stop).
3- Raise arm 1 as indicated below:
