1.2 Controller wiring terminal description

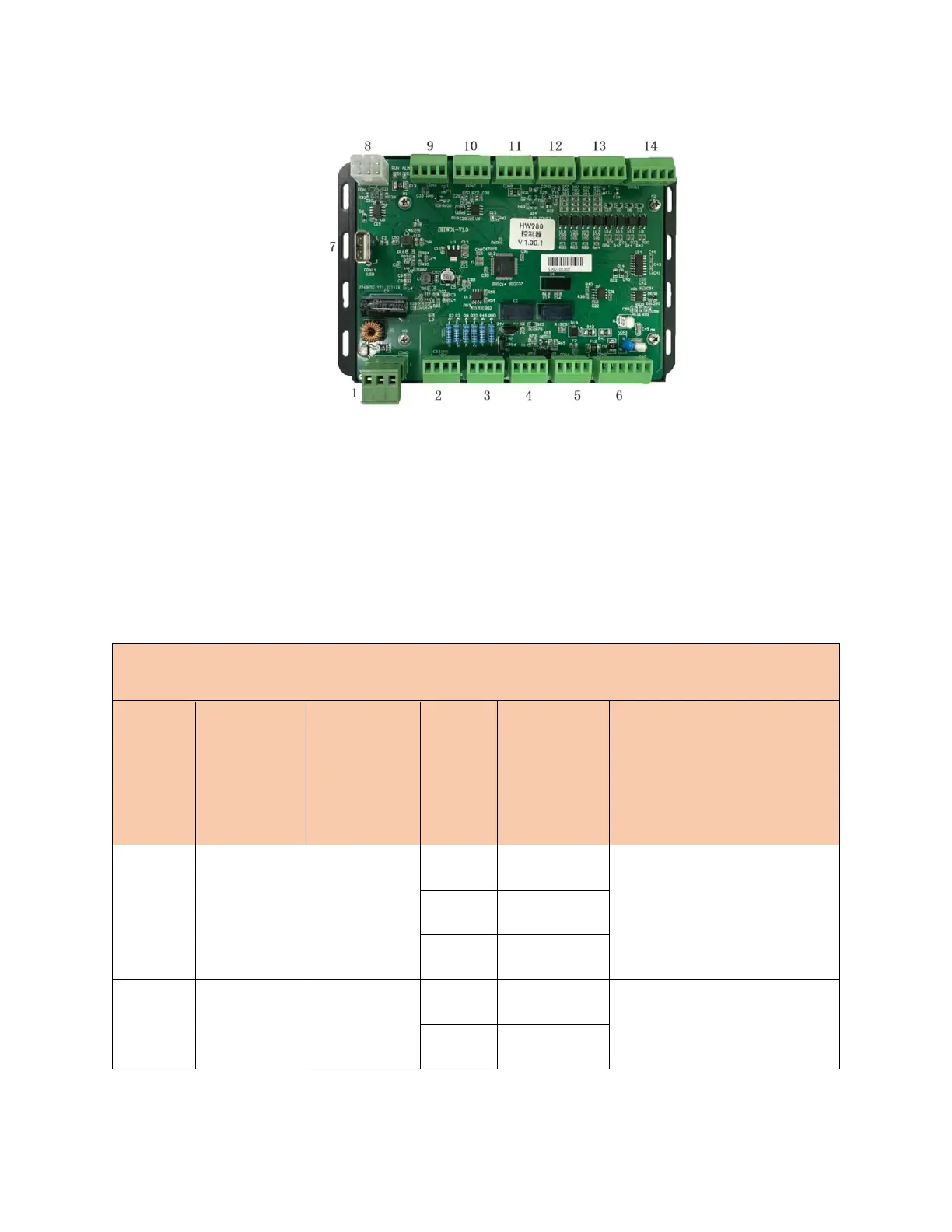

Controller wiring terminal
For detailed description of the controller terminals, please refer to the
table below.
Controller terminal description
NO
.
Port
screen
printing
Input/
Output
Pi
n
Pin
Definition
Terminal description
1
POWE
R
IN
1
24VI
Controller DC24V power
input
2
PGND
3
0V
2
CON1
OUT
1
PWM+
DC24V\DC5VPWM output
signal
2
PWM-
