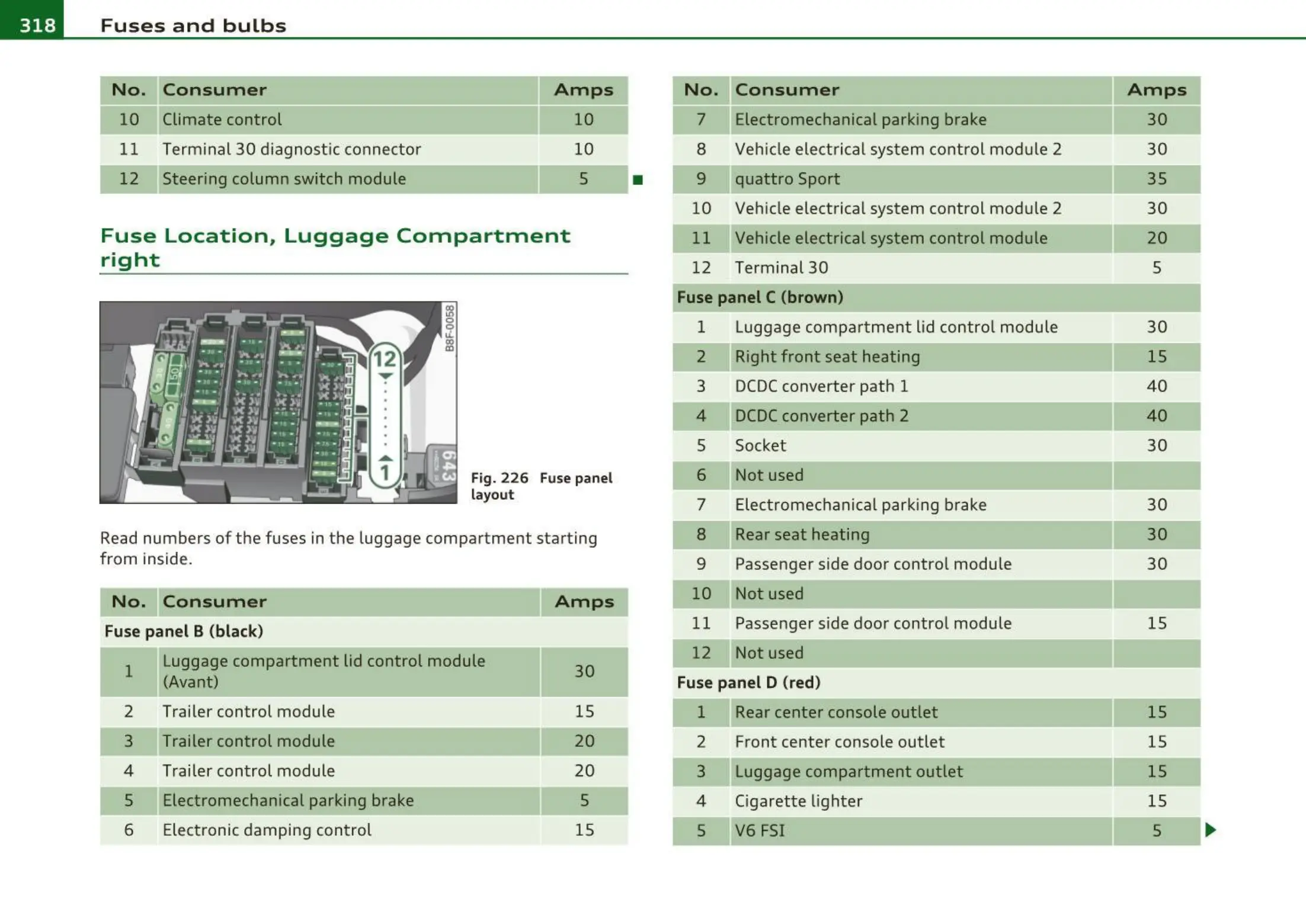

ffll.,___ F_u_ s_e_s_ a_n_d_b_u_l_b_s _______________________________________________ _
No. Consumer Amps
10 Climate control 10
11 Terminal 30 diagnost ic connector 10
12 Steering column switch module
5
Fuse Location, Luggage Compartment
right
Fig. 226 Fuse panel
layout
Read number s of t he fuses in t he lugg age com pa rtm en t sta rting
from inside .
No. Consumer Amps
Fuse panel B (black)
-
1
Luggage compartment lid control module
30
11
(Avant)
2
Tra iler control mod ule
15
3 Trailer control module 20
4 Trailer control module 20
5
Electromechanical parking brake
5
6
Electronic damping control
15
•
-
No. Con sumer Amps
7
Electromechanical parking brake
30
-
-
8 Vehicle elect rical system control mod ule 2 30
9
quattro Sport
35
10
Vehicle electric al system cont rol module 2
30
11 Vehicle electrical system control module 20
12 Terminal 30
5
Fuse panel C (brown )
1 Luggage compartment lid contro l module 30
2 Right front seat heating 15
3
DCDC converte r path 1
40
4 DCDC converter path 2 40
5 Socket
30
6 Not used
7 Electromechanica l parking brake 30
8
Rear seat heating 30
9
Passenger side door cont rol module
30
10 Not used
11 Passenger side door control module 15
12 Not used
Fuse panel D (red)
1 Rear center console outlet 15
2
Front cente r console outlet
15
3 Luggage compartment outlet 15
4 Cigarette lighter 15
5
V6 FSI
5
