Audio Technica AT-LP120-USB User Manual

10

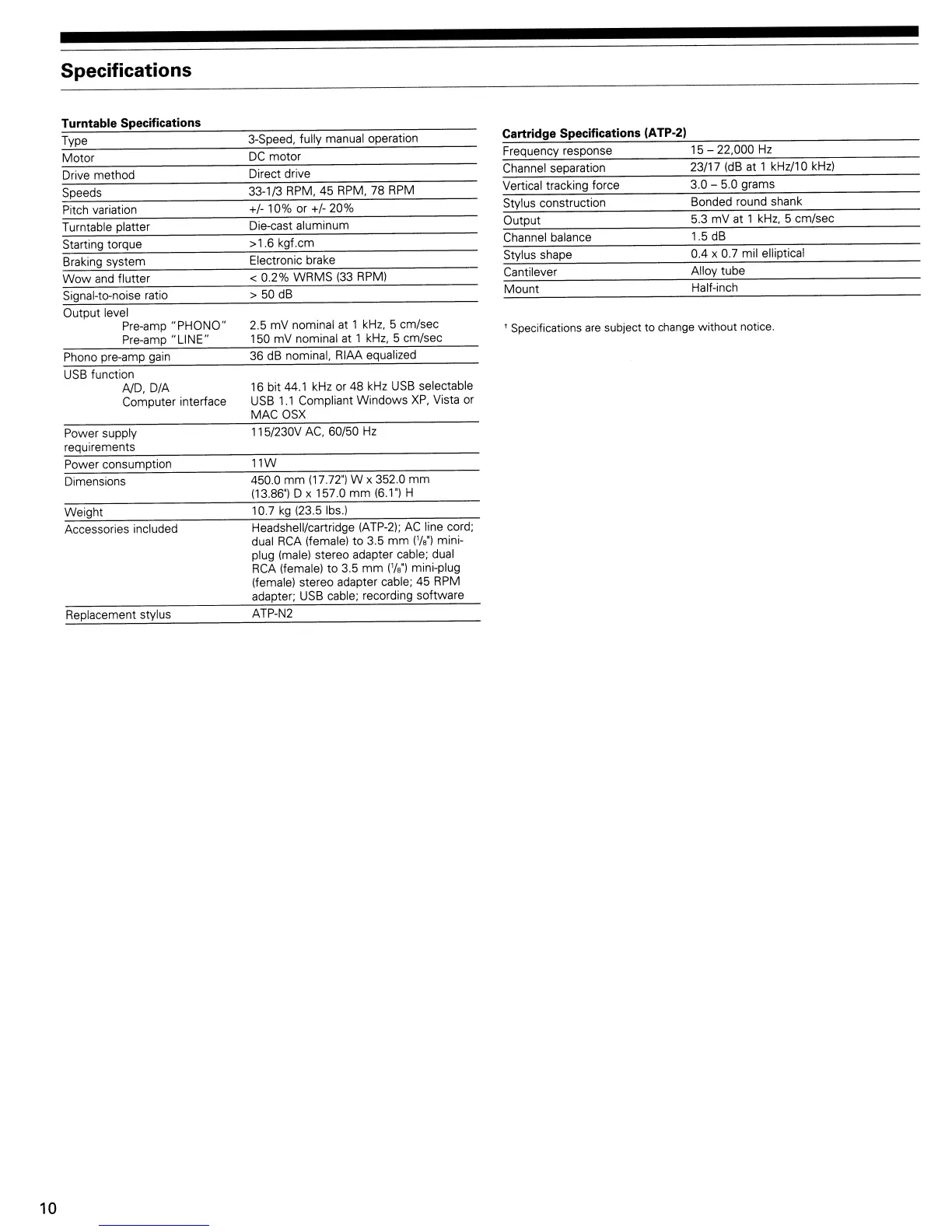

Specifications
Turntable Specifications
Type
Motor
Drive method
Speeds
Pitch variation
Turntable platter
Starting torque
Braking system
Wow and flutter
Signal-ta-noise ratio
Output level
Pre-amp "PHONO"
Pre-amp "LINE"
Phono pre-amp gain
USB function
AID, D/A
Computer interface
Power supply
requirements
Power consumption
Dimensions
Weight
Accessories included
Replacement stylus
3-Speed, fully manual operation
DC motor
Direct drive
33-1/3
RPM, 45 RPM, 78 RPM
+/- 10% or +/- 20%
Die-cast aluminum
>1.6 kgf.cm
Electronic brake
< 0.2% WRMS
(33 RPM)
> 50 dB
2.5 mV nominal at 1 kHz, 5 em/sec
150 mV nominal at 1
kHz, 5 em/sec
36
dB nominal. RIM equalized
16 bit 44.1 kHz or 48 kHz USB selectable
USB 1.1 Compliant Windows XP, Vista or
MAC
OSX
115/230V AC, 60/50 Hz
llW
450.0 mm (17.72") W x 352,0 mm
(13.86") 0 x 157.0 mm (6.1') H
10.7
kg (23.5 Ibs.)
Headshell/cartridge (ATP-2); AC line cord;
dual
RCA (female) to 3.5 mm ('/8) mini-
plug
(male) stereo adapter cable; dual
RCA (female) to 3,5 mm ('/8) mini-plug
(female) stereo adapter cable; 45
RPM
adapter; USB cable; recording software
ATP-N2
Cartridge Specifications (ATP-2)
Frequency response 15 - 22,000 Hz
Channel separation 23/17 (dB at 1 kHz/1 0 kHz)
Vertical tracking force 3,0 - 5.0 grams
Stylus construction Bonded round shank
Output 5,3 mV at 1
kHz, 5 em/sec
Channel balance 1,5
dB
Stylus shape 0.4 x 0,7 mil elliptical
Cantilever Alloy tube
Mount Half-inch
t Specifications are subject to change without notice.

Audio Technica AT-LP120-USB Specifications

General

Interface	USB, Analog
Signal-to-Noise Ratio (SNR)	50 dB
AC adapter frequency	50/60 Hz
AC adapter input voltage	115 - 230 V
Power consumption (typical)	11 W

Weight and Dimensions

Weight	10700 g
Product dimensions (WxHxD)	450 x 352 x 157 mm
