Replacing the belt
6. Using your hands, rotate the platter ten times.
•
Raise the tonearm lift control lever to lift the tonearm. Slowly rotate the turntable
ten times by hand in the direction of the arrow.
When the turntable is moved
Using the product's original packing materials, wrap the turntable in the
reverse order from when you unwrapped it. If you do not have the packaging
materials, take the following measures:
•
After disconnecting the power cable plug from the outlet, remove the rubber
mat and platter, and then wrap them so that they do not get damaged.
•
Use a string or something similar to tie the tonearm to the rest so that it
does not move.
•
Remove the counterweight.
•
Remove the headshell from the tonearm with the protector attached to the
cartridge, and then wrap the entire headshell assembly so that it does not
get damaged.
•
Wrap the turntable body with paper or a soft cloth so that it does not get
damaged.

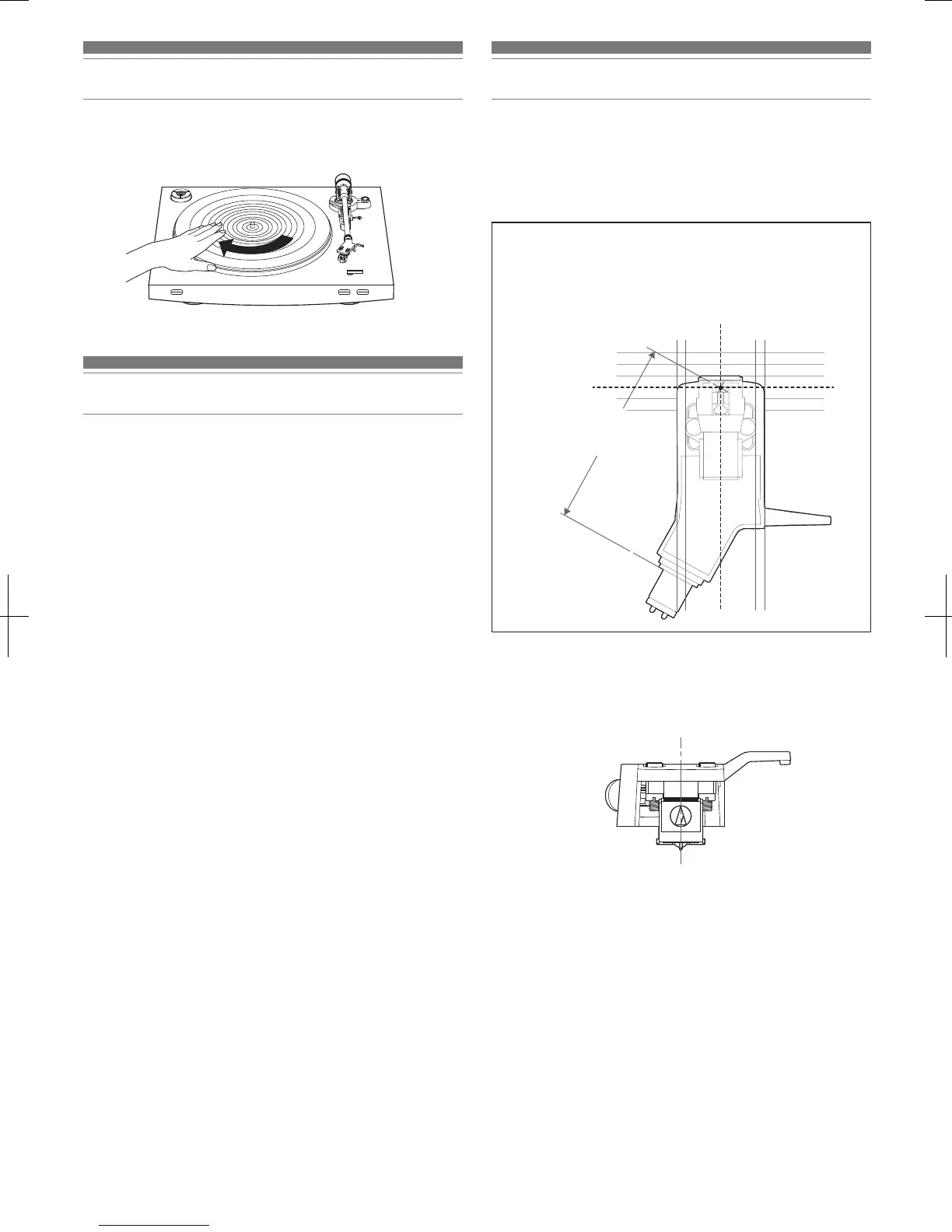

Adjusting the overhang
The position of the cartridge must be accurately determined (adjusting the
overhang) when mounting a cartridge or headshell other than the one provided.
1. Mount the cartridge so it is parallel to the headshell.
•
Match up the positions of the cartridge and headshell to the figure below and
mount the cartridge so it is parallel to the headshell.
2. Mount the cartridge it is perpendicular to the top of the
headshell.
Front of headshell
This illustration represents the actual size.
Place the headshell on the figure below, and then adjust the stylus tip of
the new cartridge along the lines for the "Stylus tip" of the cartridge.
Overhang adjustment guide
45.0 mm
Stylus tip
Underside of headshell
