Audio Technica AT-LP60XBT User Manual

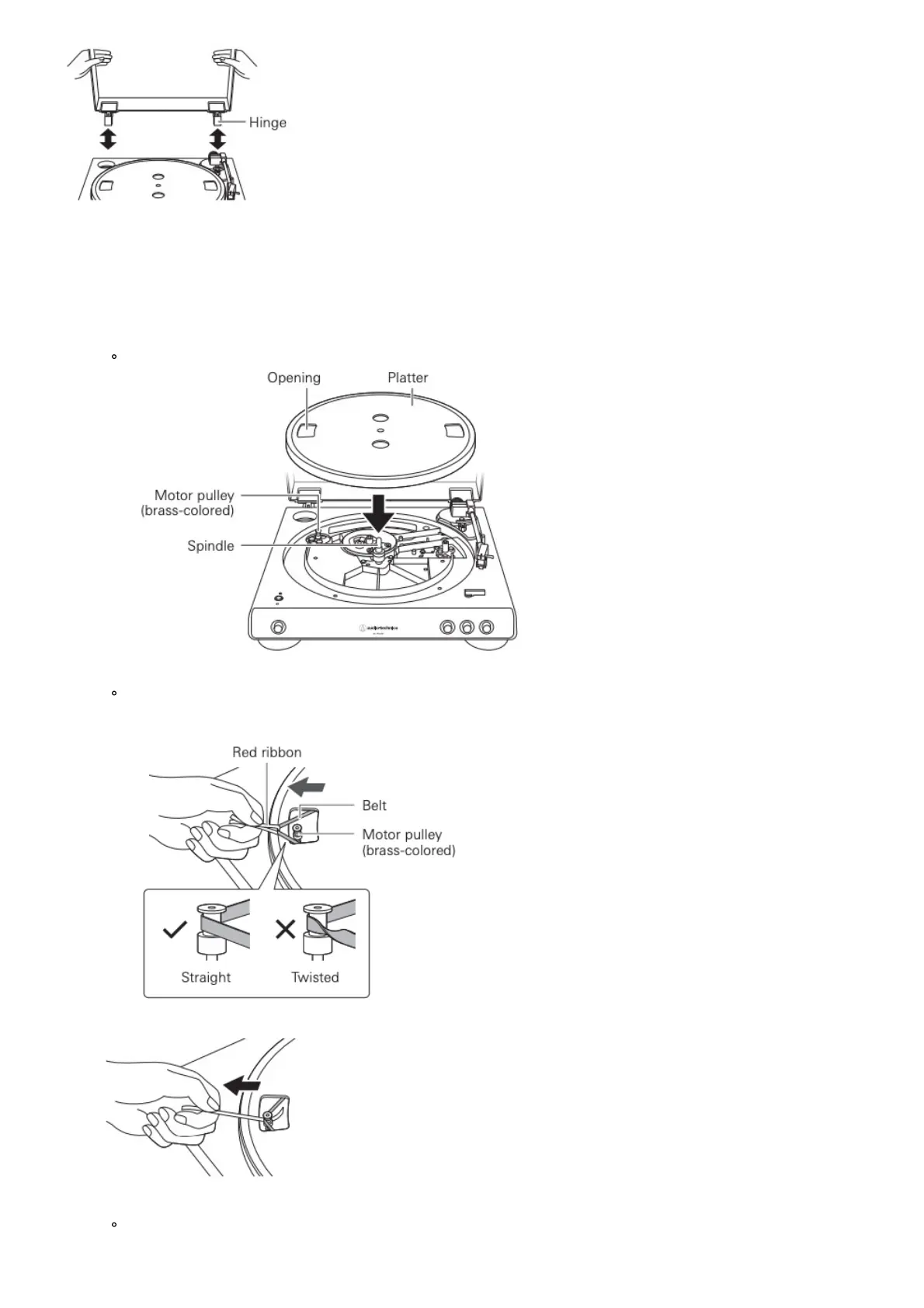

Assembling the product
This product requires some assembly before using it for the first time.
Do not connect the AC adapter until assembly is complete.
1. Set the platter on the spindle.
Make certain that the platter is fully seated on the spindle.
2. Place the belt on the motor pulley (brass-colored).
Align one of the platter openings with the brass motor pulley, and, while pulling both ends of the red ribbon
that comes attached to the belt, place the belt on the motor pulley, as per the diagram. When doing this,
be careful not to twist the belt.
3. Remove the red ribbon from the belt.
4. Set the felt mat on the platter.
After setting the felt mat, put the 45 RPM adapter into the space made for it on the upper left.

Audio Technica AT-LP60XBT Specifications

General

Type	Belt-drive audio turntable
Operation	Fully automatic
Motor type	DC servo motor
Drive system	V-belt
Output level	150 mV
Product color	Black
Wow & flutter	0.25 %
Nominal speeds	33 1/3, 45 RPM
Platter material	Aluminum
Built-in phono preamplifier	Yes
Signal-to-Noise Ratio (SNR)	50 dB
Power supply type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	115/230 V
Quantity	1
Cables included	Audio (3.5mm)
USB ports quantity	0

Weight and Dimensions

Depth	373.3 mm
Width	359.5 mm
Height	97.5 mm
Weight	2600 g
