Mediant 1000 Analog & Digital
Fast Track Guide 30 Document #: LTRT-83501

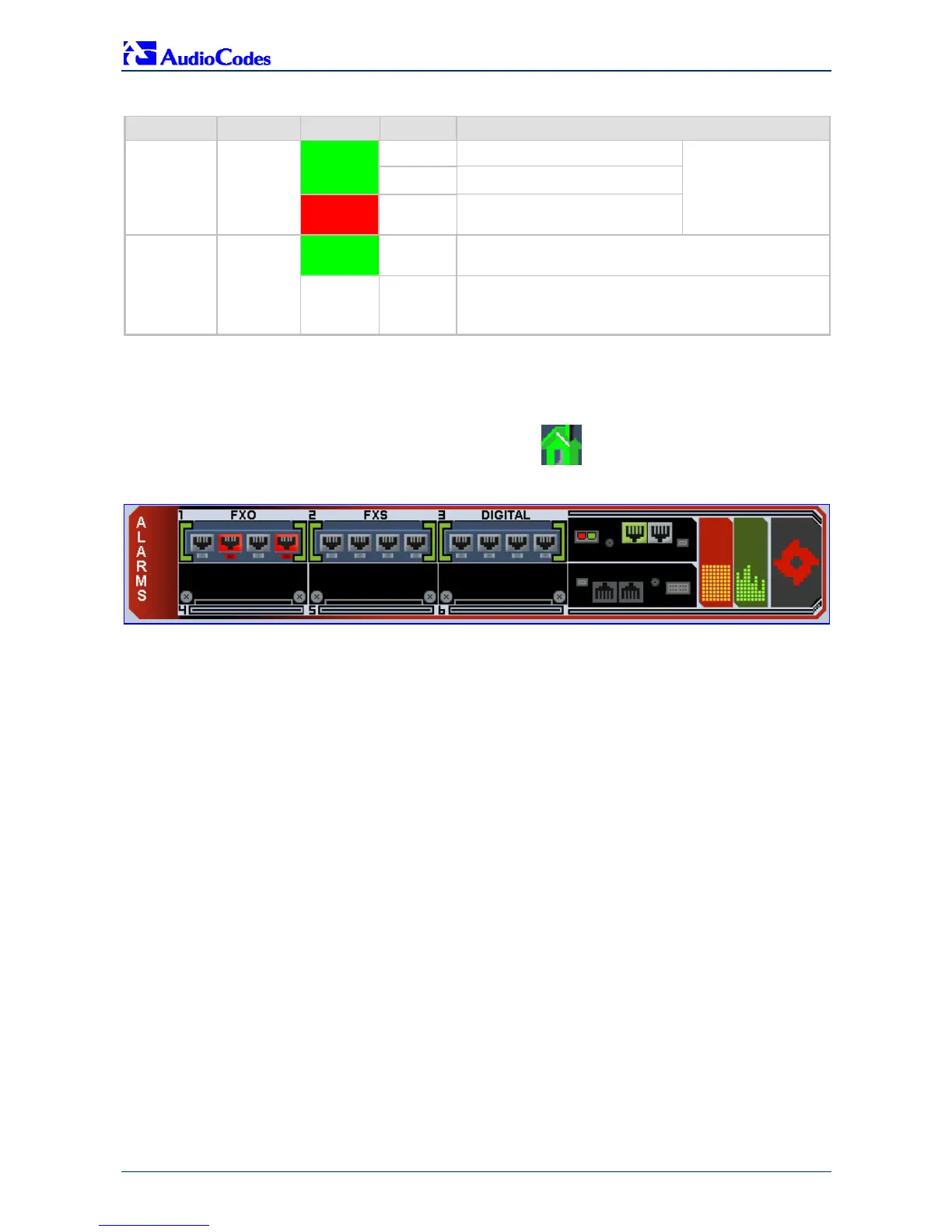

Table 6-1: Description of the Front Panel LEDs
LED Location Color State Description
On
Normal working condition.
Green
Blinking
Software load / initialization.
General
Purpose
4
Red
On
Failure. A fatal error has
occurred.
This general purpose
LED is used to
indicate the status of
the CPU, fans, etc.
Green
On
The LED of each AC power supply is lit green when the
power supply is operating correctly.
Power
Supply
5
-
Off
Failure or disruption in the AC power supply, or the
power is currently not being supplied to the Mediant
1000 through the AC power supply entry.
6.2 Monitoring the Mediant 1000 Trunks and Channels
¾ To monitor the status of the trunks and channels:
Open the Home page by clicking the Home icon
; the 'Alarms' screen is displayed.
Figure 6-2: 'Alarms' Screen
The color coding of the ports is described in Table
3-2 on page 25.
¾ To monitor the details of a channel, take these 3 steps:
1. In the ‘Alarms' screen, click the numbered icon of the specific channel whose detailed status
you want to view; a shortcut menu appears.
2. From the shortcut menu, choose Port Settings; the channel-specific ‘Channel Status’
screen appears.
3. Click the submenu links to view the channel’s parameter settings.
