Mediant 1000 Analog & Digital
Fast Track Guide 20 Document #: LTRT-83501
3.4.3 Configuring Basic SIP Parameters
After accessing the Embedded Web Server (refer to Section 3.3 on page 15), the SIP ‘Quick
Setup’ screen is displayed, shown in Figure
3-5.

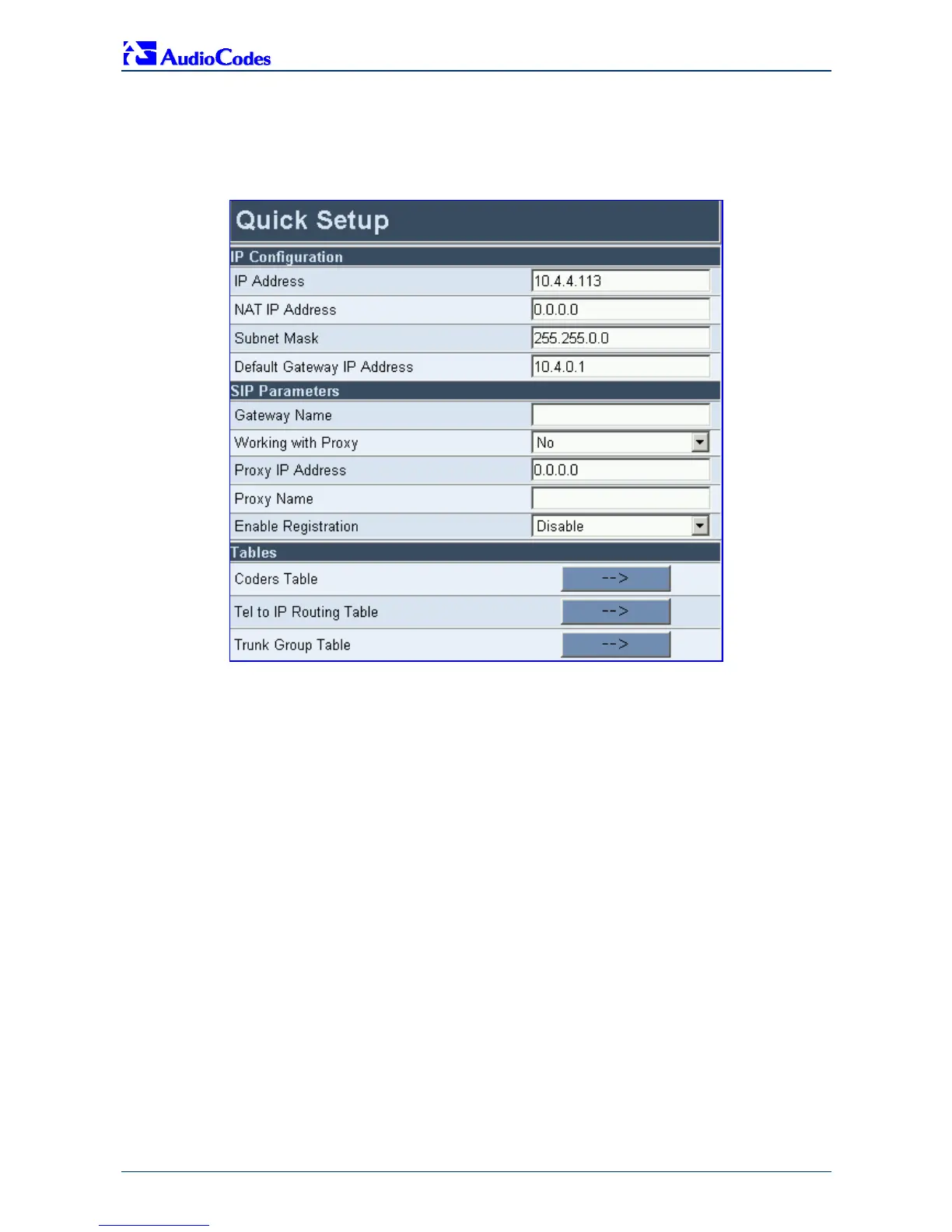

Figure 3-5: Mediant 1000/SIP 'Quick Setup' Screen
¾ To configure basic SIP parameters, take these 10 steps:
1. If the Mediant 1000 is connected to a router with NAT enabled, perform the following
procedure (if it isn’t, leave the ‘NAT IP Address’ field undefined):
a. Determine the “public” IP address assigned to the router (by using, for instance, router
Web management). Enter this public IP address in the ‘NAT IP Address’ field.
b. Enable the DMZ configuration on the residential router for the LAN port where the
Mediant 1000 gateway is connected. This enables unknown packets to be routed to the
DMZ port.
2. Under ‘SIP Parameters’, enter the Mediant 1000 domain name in the field ‘Gateway Name’.
If the field is not specified, the Mediant 1000 IP address is used instead (default).
3. When working with a Proxy server, set ‘Working with Proxy’ field to ‘Yes’, and then enter the
IP address of the primary Proxy server in the field ‘Proxy IP address’. When no Proxy is
used, the internal routing table is used to route the calls.
4. In the field ‘Proxy Name’, enter the Proxy name. If Proxy name is used, it replaces the Proxy
IP address in all SIP messages. This means that messages are still sent to the physical
Proxy IP address, but the SIP URI contains the Proxy name instead.
5. Configure ‘Enable Registration’ to ‘Yes’ or ‘No’:
• ‘No’ = the Mediant 1000 does not register to a Proxy server/Registrar (default).
• ‘Yes’ = the Mediant 1000 registers to a Proxy server/Registrar at power up and every
‘Registration Time’ seconds. For detailed information on the parameter ‘Registration
Time’ refer to the Mediant 1000
SIP User’s Manual.
