Version 5.6 17 November 2008
Installation Manual 2. Installing the Device
¾ To connect MP-11x to a PC, take these 2 steps:
1. Connect the PS/2 connector (refer to the figure below for connector pinouts) on one
end of the cable to the MP-11x RS-232 port (labeled RS-232).
2. Connect the DB-9 connector at the other end of the cable to either the COM1 or COM2
RS-232 communication port on your PC.

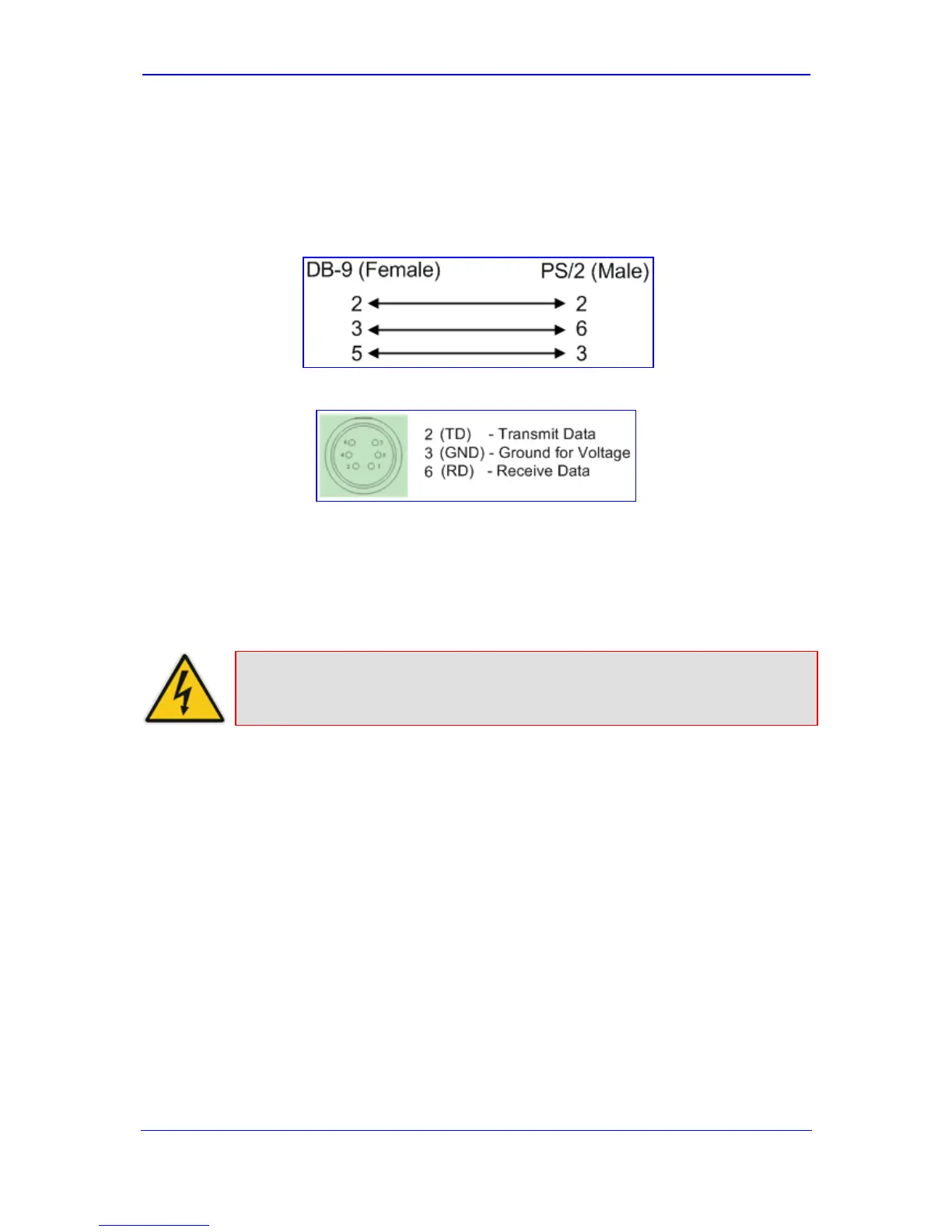

Figure 2-9: PS/2 Connector Pinouts
For information on establishing a serial communications link with MP-11x, refer to
Accessing the CLI.
2.1.4.5 Connecting MP-11x to Power
The MP-11x is powered from a standard AC electrical outlet.
Warning:
Units must be connected (by service personnel) to a socket-outlet with a
protective earthing connection.
¾ To connect MP-11x to the power supply:
Connect the MP-11x power socket to a standard electrical outlet using the supplied AC
power cord.
