Hardware Installation Manual 10 Document #: LTRT-59815
MediaPack Series
LED Color State Definition
Power Green
On Power is received by the device.
-
Off Failure / disruption in the AC power supply or power
is currently not being supplied to the device through
the AC power supply entry.
2.1.2 MP-11x Rear Panel (Ports Description)
The device's rear panel provides the ports for cabling the device to the various interfaces.
The figure below displays the rear panel of the MP-118 device (as an example).

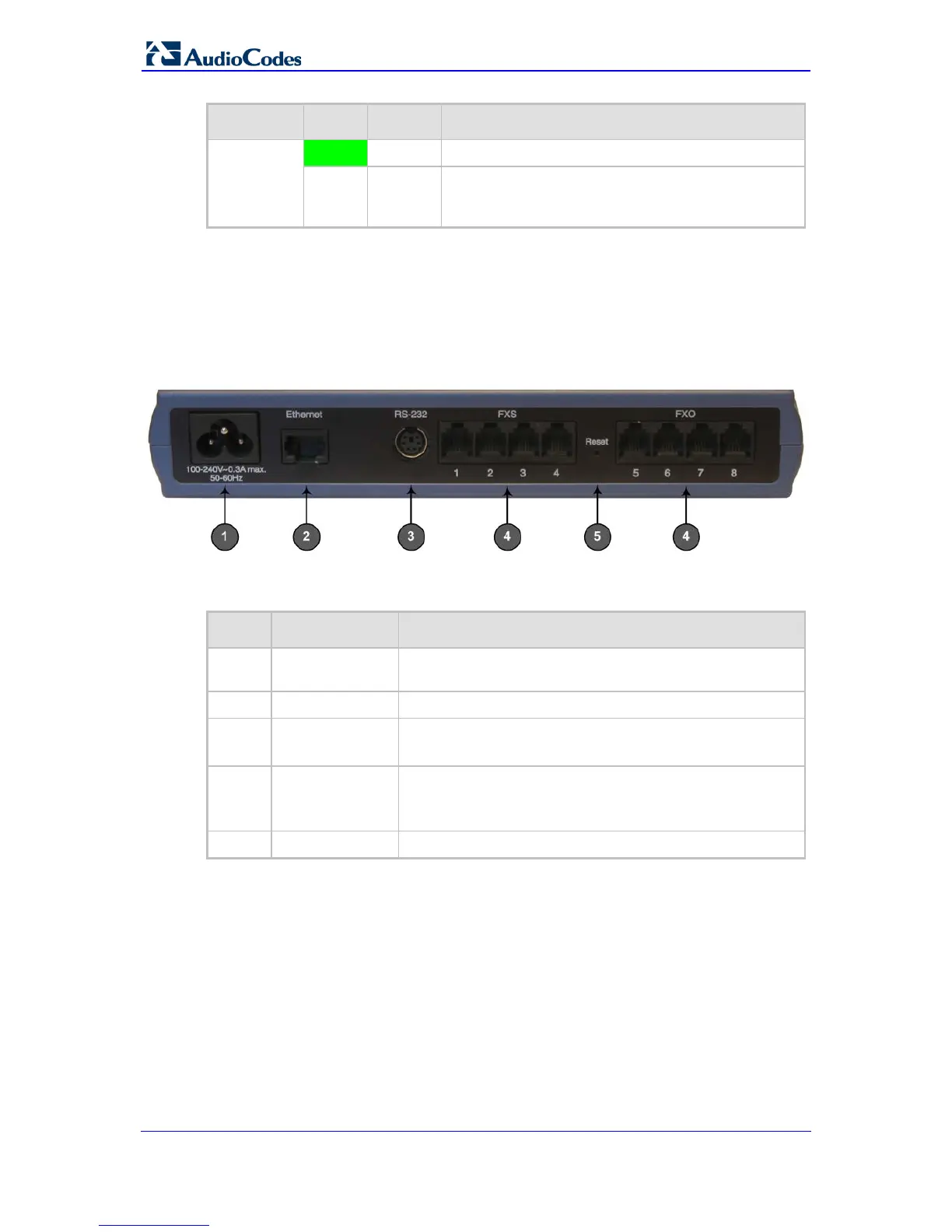

Figure 2-2: MP-11x Rear Panel (e.g., MP-118)
The table below describes the ports on the MP-11x rear panel:
Table 2-2: MP-11x Rear Panel Component Descriptions
Item # Label Component Description
1
100-240~0.3A
max. 50-60Hz
AC power supply socket.
2
Ethernet
10/100Base-TX Uplink port.
3
RS-232
RS-232 status port (requires a DB-9 to PS/2 adaptor).
Note: MP-112 does not provide a serial port.
4 FXS and/or FXO Provides two, four, or eight FXS/FXO ports (depending on
MediaPack model).
Note: MP-112 does not support FXO interfaces.
5
Reset
Reset button for resetting the device.
2.2 Unpacking and Checking Package Contents
Follow the procedure below for unpacking the carton in which MP-11x is shipped.
 To unpack MP-11x:
1. Open the carton and remove the packing materials.
2. Remove the MP-11x unit from the carton.
3. Check that there is no equipment damage.
