AudioCodes MediaPack Series MP-11x - Figure 2-17: Connecting the Serial Port

Version 6.6 19 April 2012
Hardware Installation Manual 2. MP-11x Hardware Installation
 To connect MP-11x to a computer for serial communication:
1. Connect the PS/2 connector on one end of the cable to the MP-11x RS-232 port
(labeled RS-232).

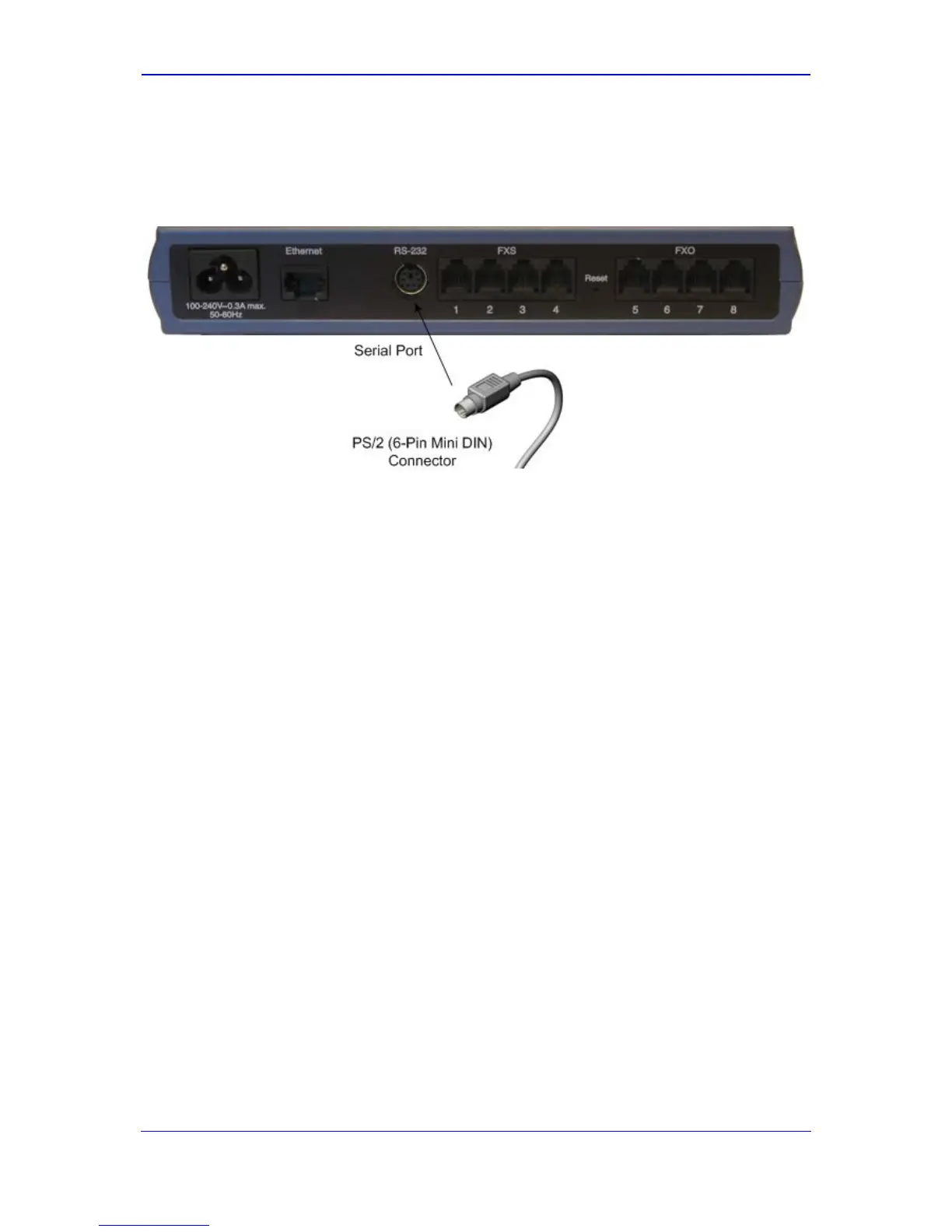

Figure 2-17: Connecting the Serial Port
2. Connect the DB-9 connector at the other end of the cable to either the COM1 or COM2
RS-232 communication port on your computer.
