MediaPack Series
 To cable the combined MP-11x FXS/FXO Lifeline:
1. Connect a fax machine, modem, or phone to each of the FXS ports.
2. Connect an analog PSTN line to each of the FXO ports.

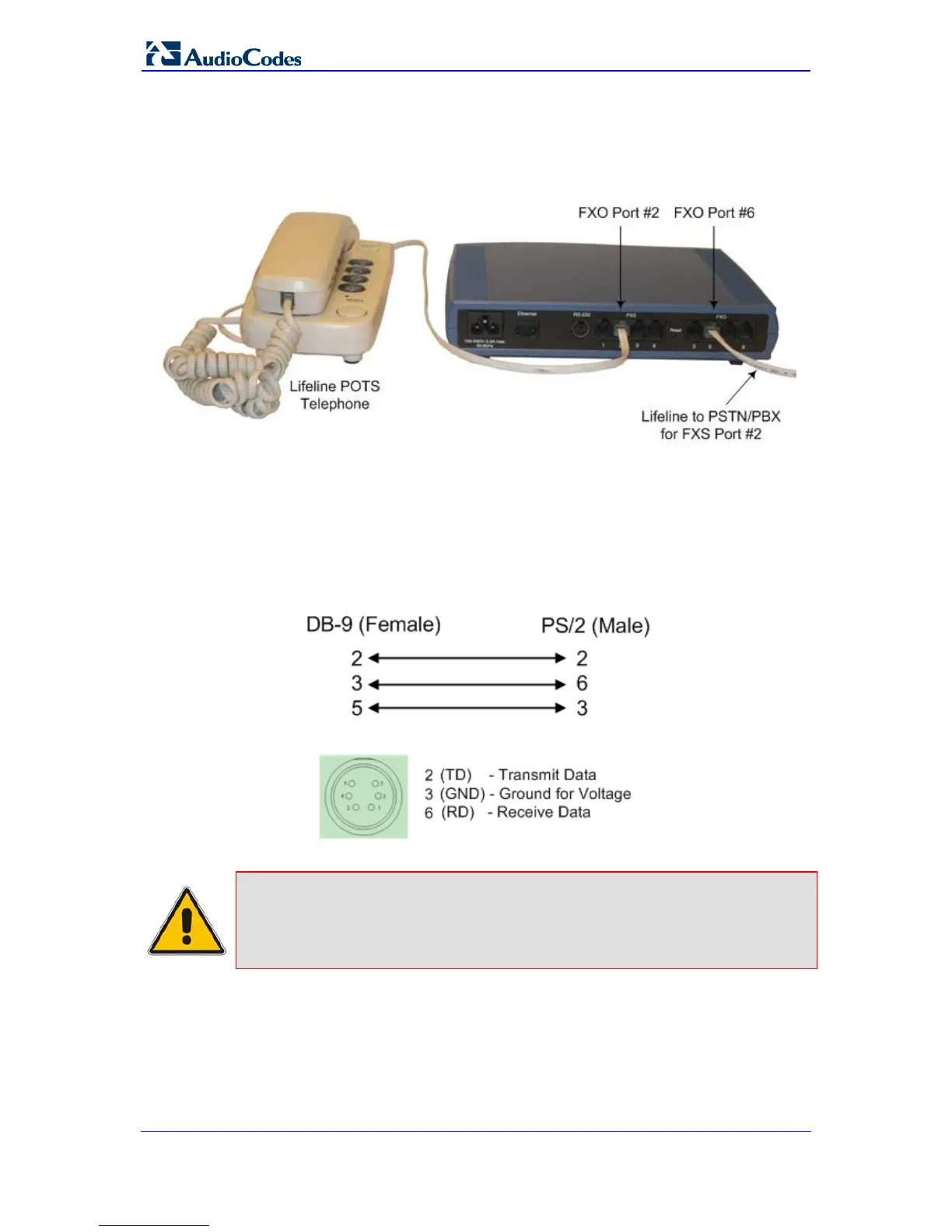

Figure 2-14: Lifeline Cabling for FXS and FXO Devices
2.4.5 Connecting MP-11x to Computer for Serial Communication
The procedure below describes how to connect the MP-11x serial (RS-232) interface to a
computer.
This cabling requires a straight-through PS/2 to DB-9 cable adaptor with the following
connector pinouts:
Figure 2-15: PS/2 to DB-9 Adaptor Connector Pinouts
Figure 2-16: PS/2 Connector Pinouts
Notes:
• This procedure is not applicable to MP-112 as this model does not
provide an RS-232 serial interface port.
• The PS/2 to DB-9 cable adaptor is not included in the MP-11x package.
