2.4 Cabling MP-11x
This section describes the MP-11x cabling procedures:
 To cable MP-11x:

Connecting to the Ethernet network – see 'Connecting MP-11x to the Network' on
page 14

Connecting to FXS/FXO devices – see 'Connecting MP-11x to FXS/FXO Devices' on
page 15

Cabling the FXS Lifeline – see 'Cabling MP-11x FXS Lifeline' on page 17

Serial connection to a computer – see 'Connecting MP-11x RS-232 Port to a PC' on
page 18

Connecting to the power supply – see 'Connecting MP-11x to Power' on page 20
2.4.1 Connecting MP-11x to the Ethernet Network
The procedure below describes how to connect MP-11x directly to the Ethernet network.
This cabling requires a crossover Ethernet cable with the following RJ-45 connector
pinouts:

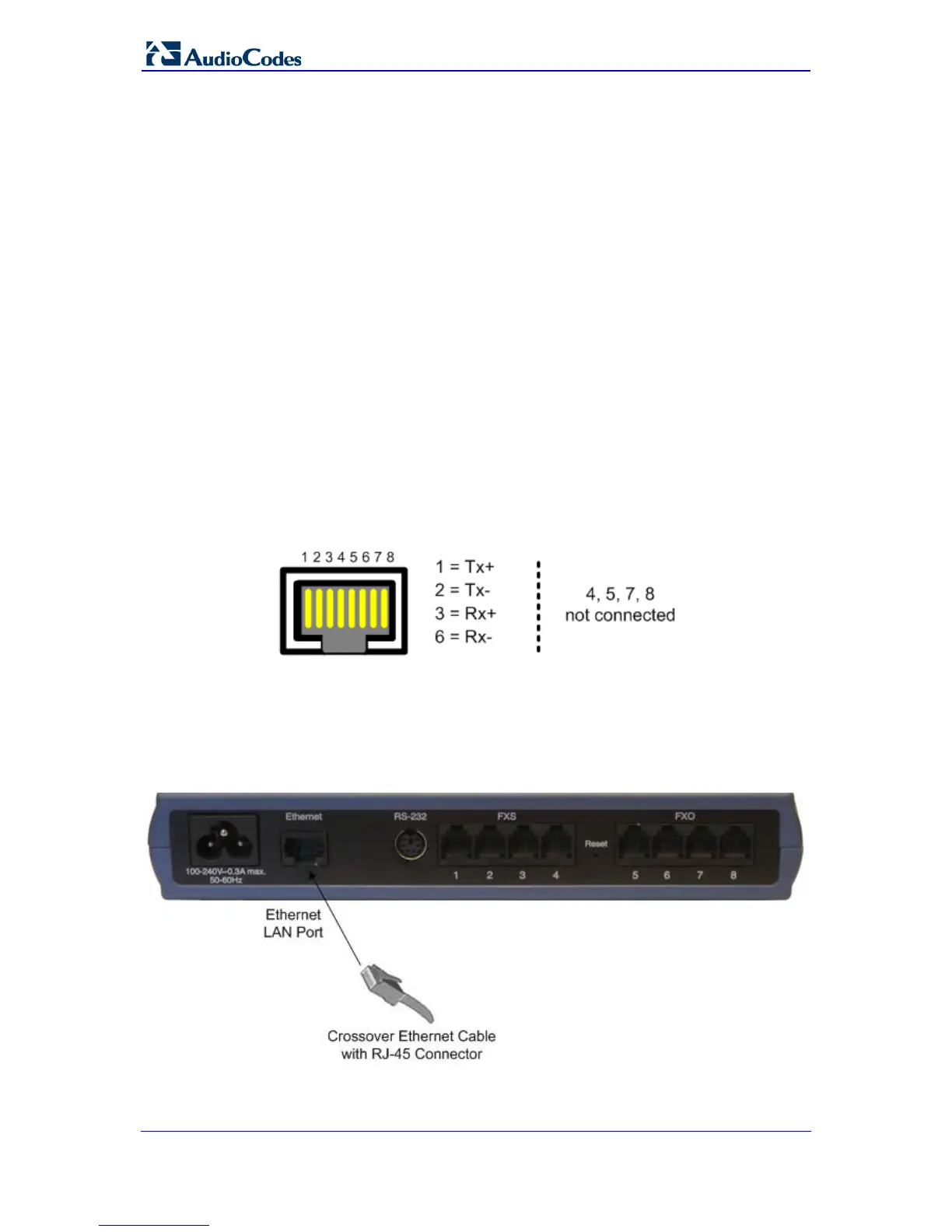

Figure 2-6: RJ-45 Connector Pinouts for Ethernet Connection
 To connect MP-11x directly to the Ethernet network:
1. Connect one end of a crossover RJ-45 Ethernet cable to the Ethernet port (labeled
Ethernet).
Figure 2-7: Connecting to the Ethernet
2. Connect the other end of the cable to the network.
