AudioCodes MediaPack Series MP-11x - Figure 2-5: MP-11 X Rack Mount Installation; Table 2-4: MP-11 X Rack Mount

Version 6.6 13 April 2012
Hardware Installation Manual 2. MP-11x Hardware Installation
 To install MP-11x in a 19-inch rack:
1. Attach one or two MP-11x devices to the shelf using the shelf-to-device screws
(supplied).
2. Position the shelf in the rack and align its side holes with the rack frame holes.
3. Attach the shelf to the rack using four standard rack screws (not supplied).

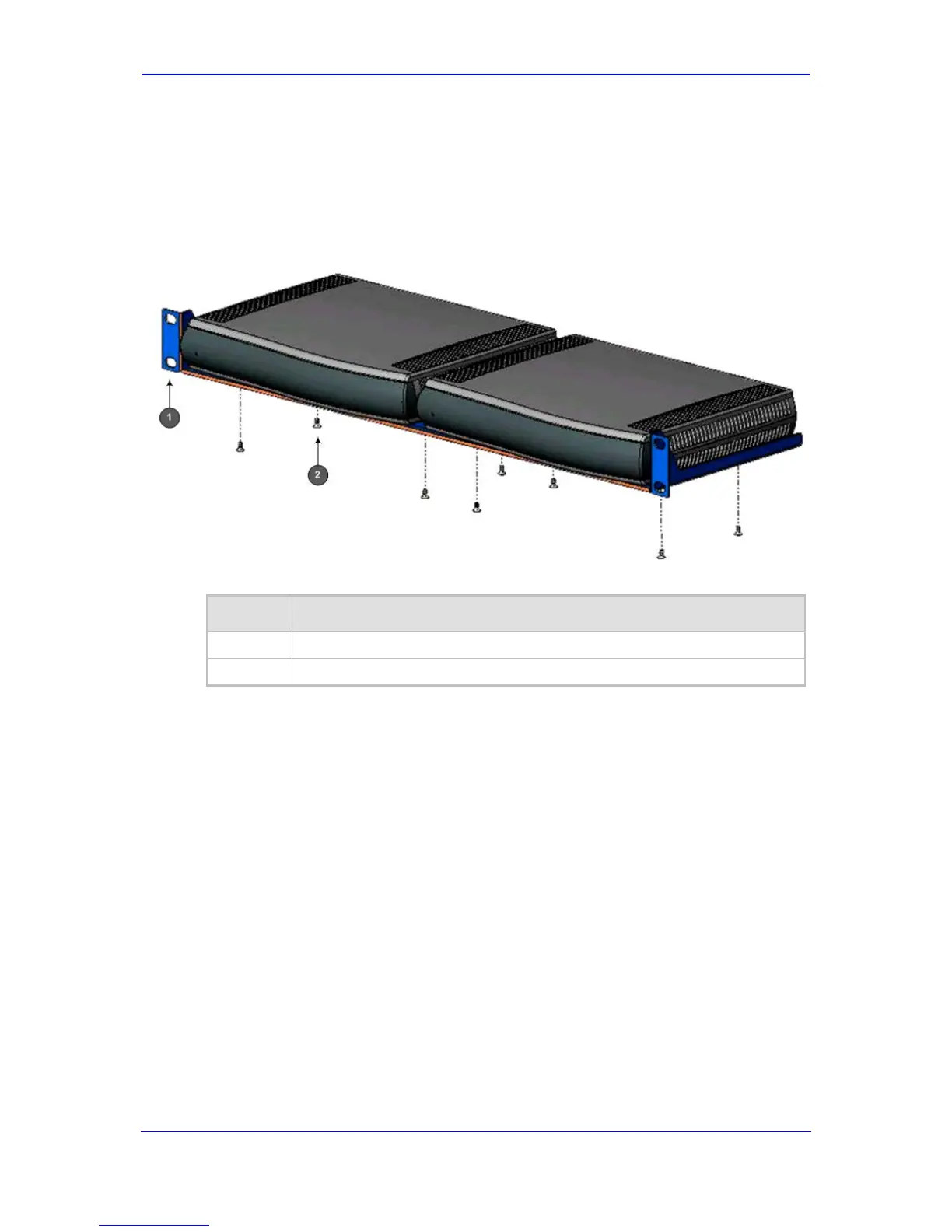

Figure 2-5: MP-11x Rack Mount Installation
Table 2-4: MP-11x Rack Mount
Item # Functionality
1
Standard rack holes used to attach the shelf to the rack.
2
Eight shelf-to-device screws.
