Installation Manual 2. Installing the Device
2 Installing the Device
This section describes the MP-11x (refer to 'Installing the MP-11x Series' on page 13) and
MP-124 (refer to 'Installing MP-124' on page 21) hardware in
stallation. This includes
physical description, unpacking the shipped package, and mounting and cabling
procedures.
2.1 Installing the MP-11x Series
This subsection describes the MP-11x hardware installation.
2.1.1 Physical Description
The subsections below provide a physical description of the front and rear panels of the
MP-11x.
2.1.1.1 MP-11x Front Panel
The device's front panel provides LEDs for indicating various operating statuses. The figure
below displays the front panel of the MP-118. This is similar to the MP-114 and MP-112
models, differing only in the number of Channel Status LEDs (corresponding to the
number of channels). For a description of the device's LEDs, refer to 'Monitoring Front-
Panel LEDs' on page 55.

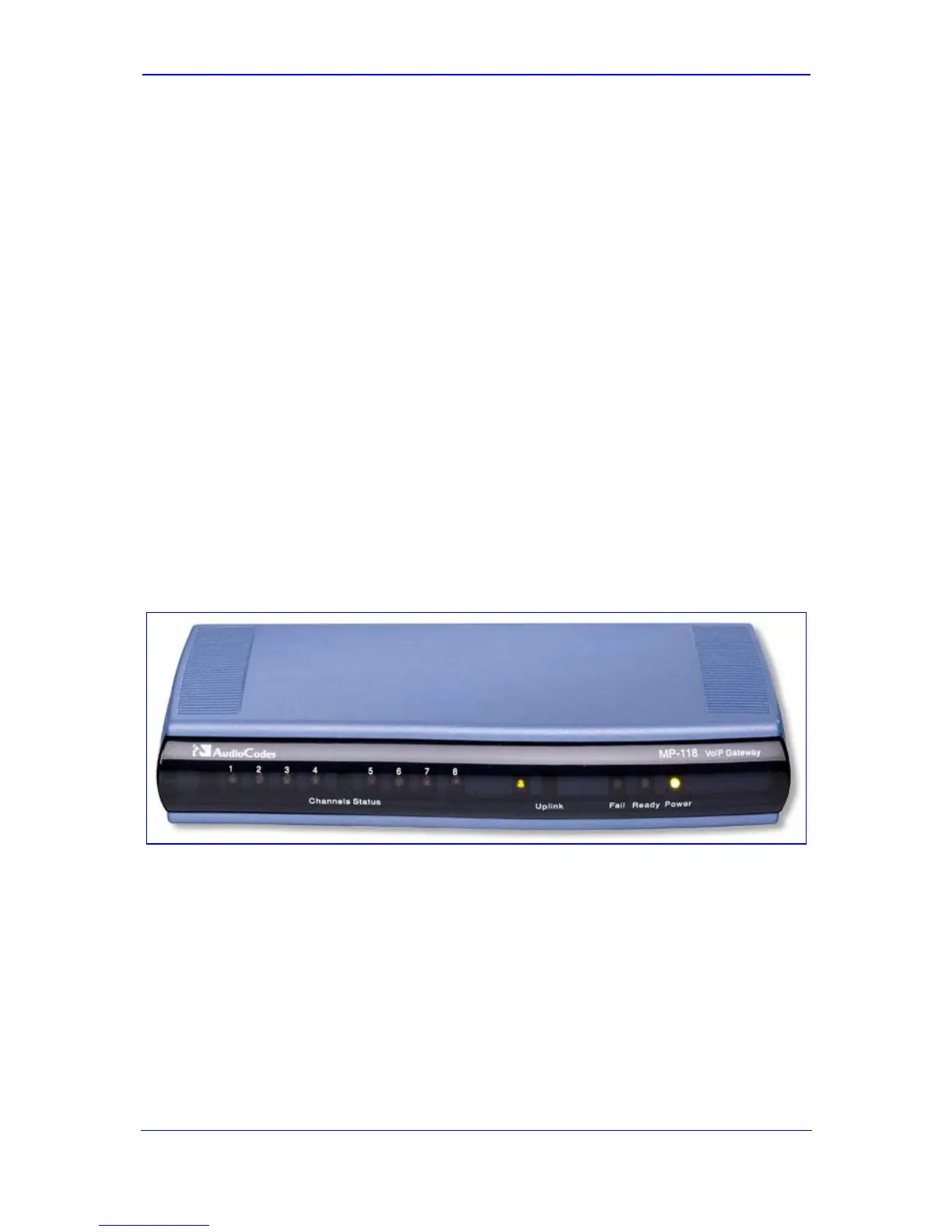

Figure 2-1:
MP-11x (e.g., MP-118) Front Panel

AudioCodes MediaPack Specifications

General

Fax Support	T.38, G.711 pass-through
Humidity	10% to 90% non-condensing
Model	MediaPack
Category	Gateway
Voice Channels	2, 4, 8, 24 (depending on the specific model)
Network Interfaces	Ethernet (10/100/1000 Mbps)
Protocols	SIP, MGCP
Voice Codecs	G.711, G.726, G.729, iLBC
Management	Web-based, SNMP, CLI
Security	TLS, SRTP, HTTPS, SSH
FXS Ports	Varies by model (e.g., 8, 16, 24)
FXO Ports	Varies by model (e.g., 8, 16, 24)
Ethernet Interfaces	10/100/1000 Mbps
Power Supply	AC 100-240V, 50-60Hz or DC (varies by model)
Dimensions	Varies by model (e.g., 1U, 2U rack mount)
Weight	Varies by model
Operating Temperature	0°C to 45°C (32° to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
