Version 6.0 29 March 2010
Installation Manual 2. Installing the Device
2.2.4.2 Connecting MP-124 to the Ethernet Network
Follow the procedure below for connecting MP-124 directly to the Ethernet network.
¾ To connect MP-124 directly to the Ethernet network:
Using a crossover Ethernet cable with RJ-45 connectors on either end, connect the
MP-124 Ethernet port (labeled ETHERNET), directly to the network. For RJ-45
connector pinouts, refer to the figure below:

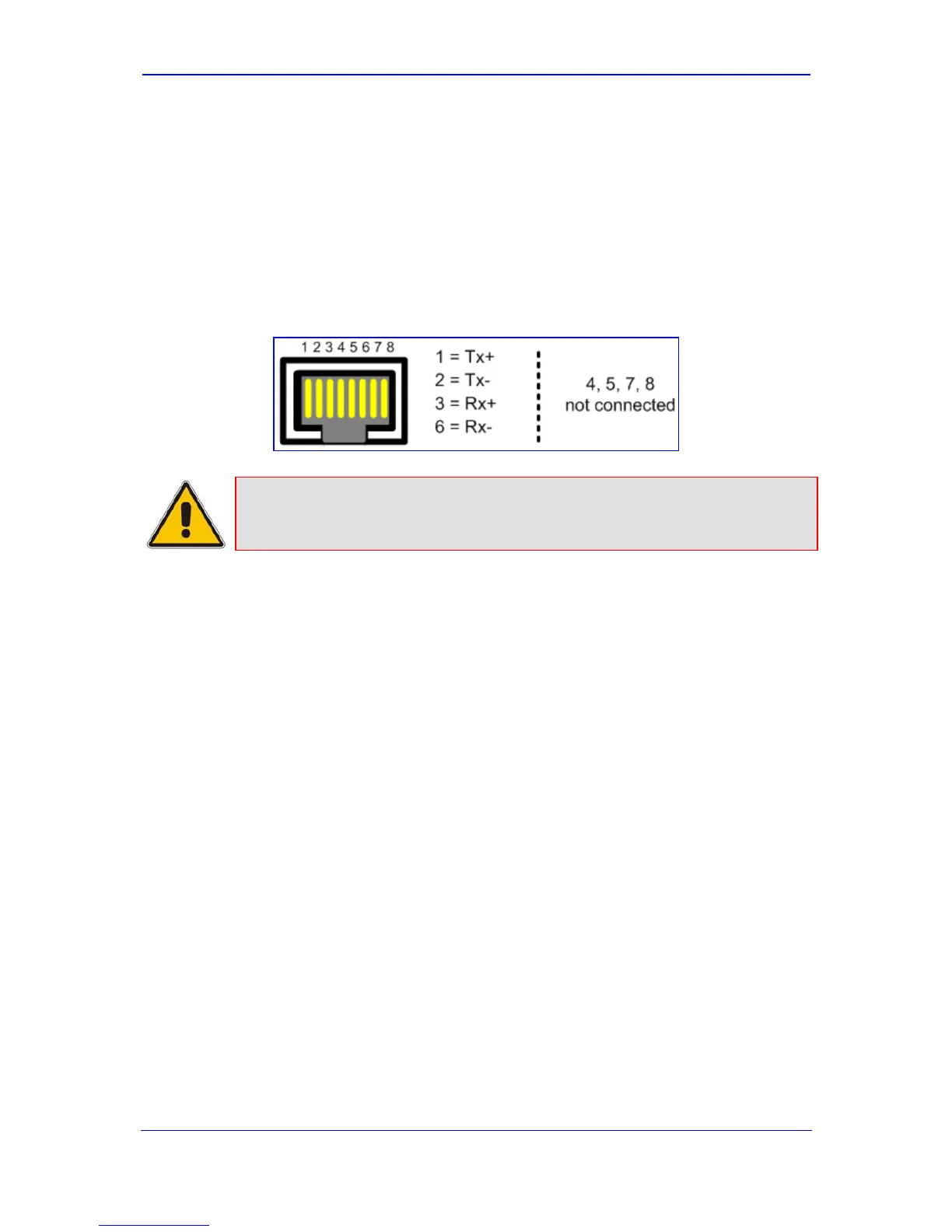

Figure 2-19: RJ-45 Connector Pinouts
Note: When assigning an IP address to the MP-124 using HTTP (refer to 'Assigning
an IP Address Using HTTP' on page 36), you may be required to disconnect
the Ethernet cable and re-cable it differently.
