Installation Manual 22 Document #: LTRT-59811
MediaPack Series
2.2 Installing MP-124
This subsection describes the MP-124 hardware installation.
2.2.1 Physical Description
The subsections below provide a physical description of the MP-124 front and rear panels.
2.2.1.1 MP-124 Front Panel
The MP-124 front panel (shown in the figure below) provides LEDs for indicating various
operating statuses. In addition, the front panel provides a reset button, described in the
table below. For a description of the device's LEDs, refer to 'Monitoring Front-Panel LEDs'
on page 55.

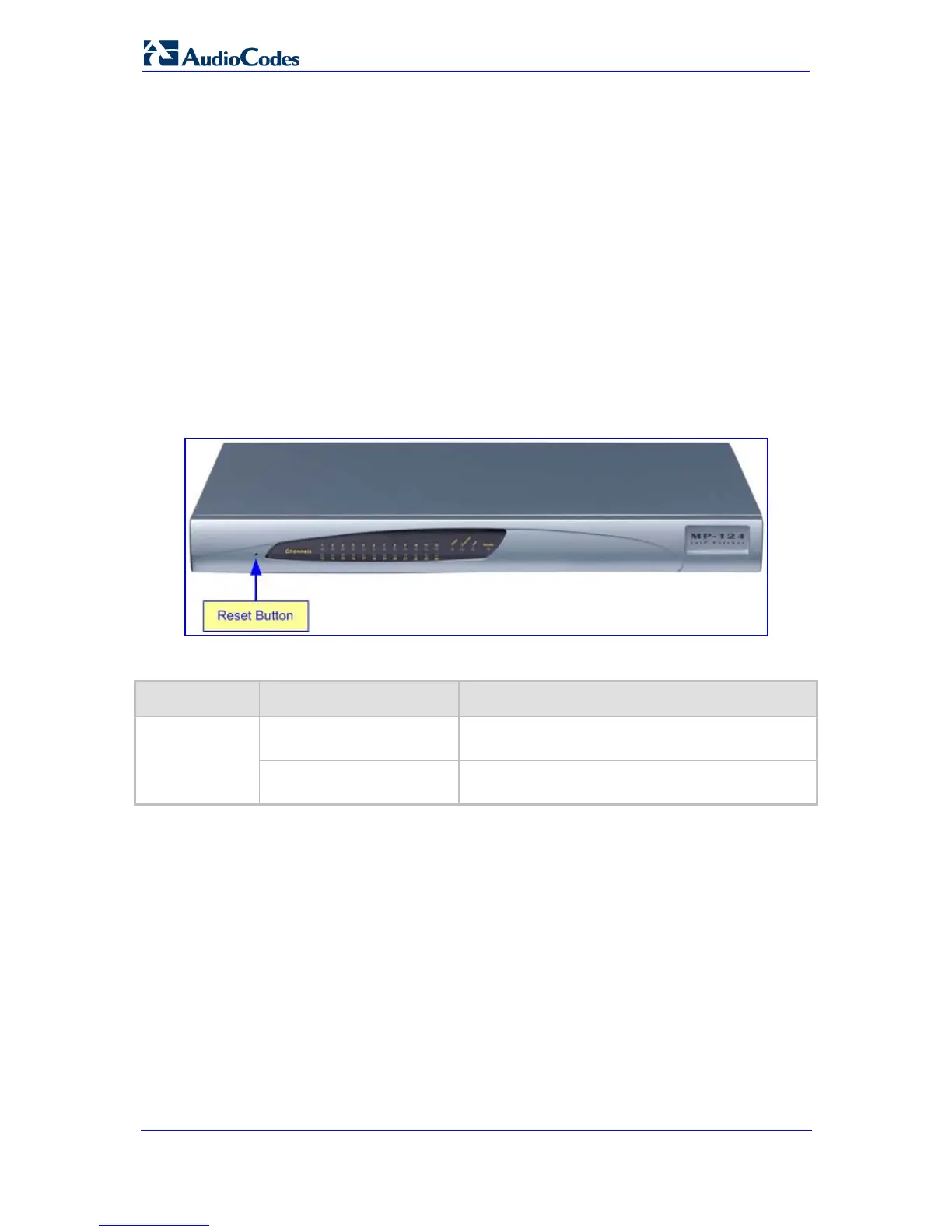

Figure 2-13:
MP-124 Front Panel
Table 2-4: Reset Button Description on MP-124 Front Panel
Type Function Comment
Reset button Resets MP-124. Press the reset button with a paper clip or any other
similar pointed object, until the device resets.
Restores MP-124 to factory
default values.
Refer to 'Restoring Factory Default Settings' on
page 48.
