Version 6.0 15 March 2010
Installation Manual 2. Installing the Device
4. Ensure that in addition to the MP-11x unit, the package contains the following items:
• AC power cable.
• Small plastic bag containing four anti-slide bumpers for desktop installation.
• Regulatory Information document.
5. Check, retain, and process any documents.
6. Notify AudioCodes or your local supplier of any damage or discrepancies.
2.1.3 Mounting the MP-11x
The device can be mounted in one of the following ways:
Desktop mounting (refer to 'Desktop Mounting' on page 15).
Wall mounting (refer to 'Wall Mounting' on page 16).
Standard 19-inch rack mounting (refer to '19-inch Rack Mounting' on page 16).
The figure below shows the mounting components on the underside of the MP-11x:

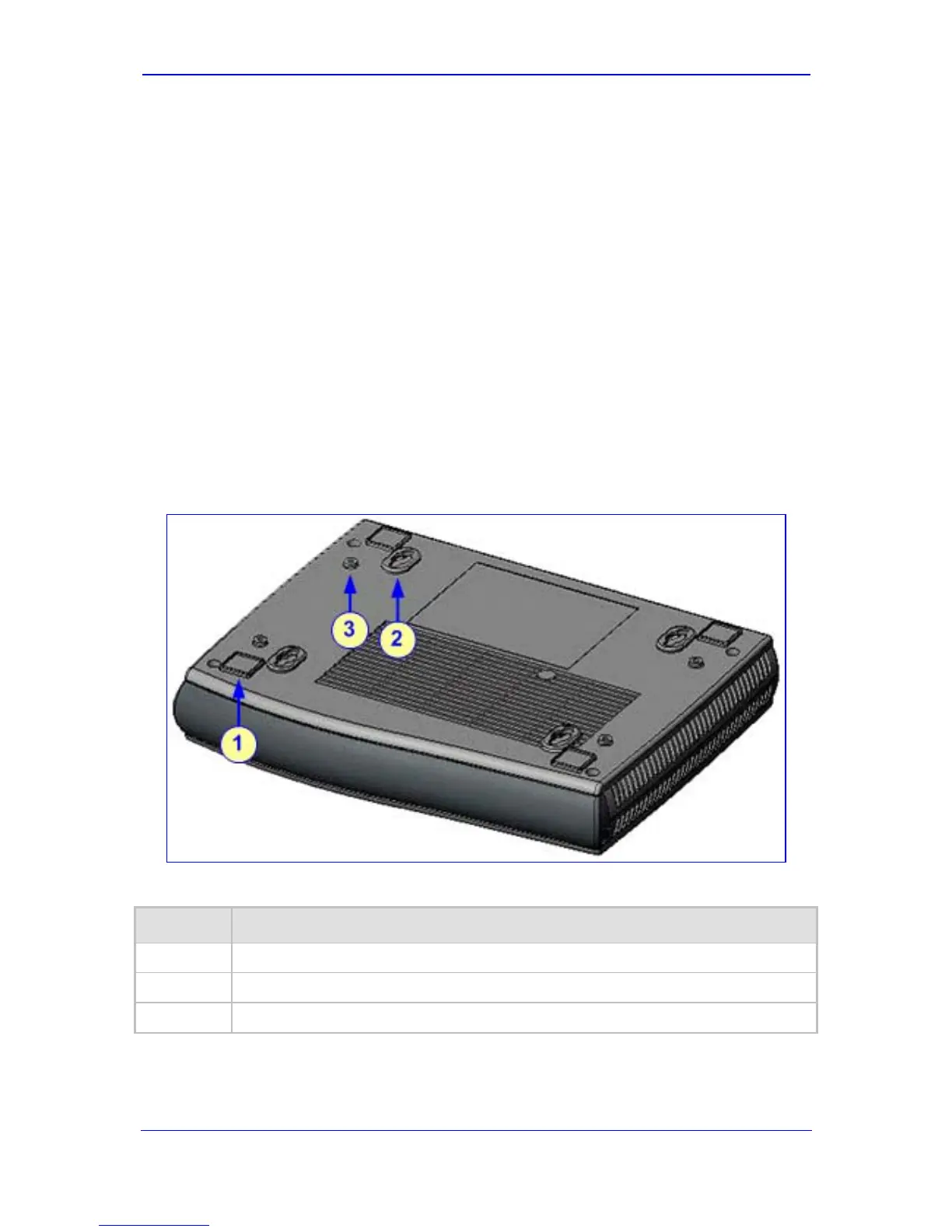

Figure 2-3: View of MP-11x Underside
Table 2-2: Mounting Components on MP-11x Underside
Item # Functionality
1
Square slot used to attach anti-slide bumpers (for desktop mounting).
2
Oval notch used to attach the MP-11x to a wall.
3
Screw opening used to attach the MP-11x to a 19-inch shelf rack.
