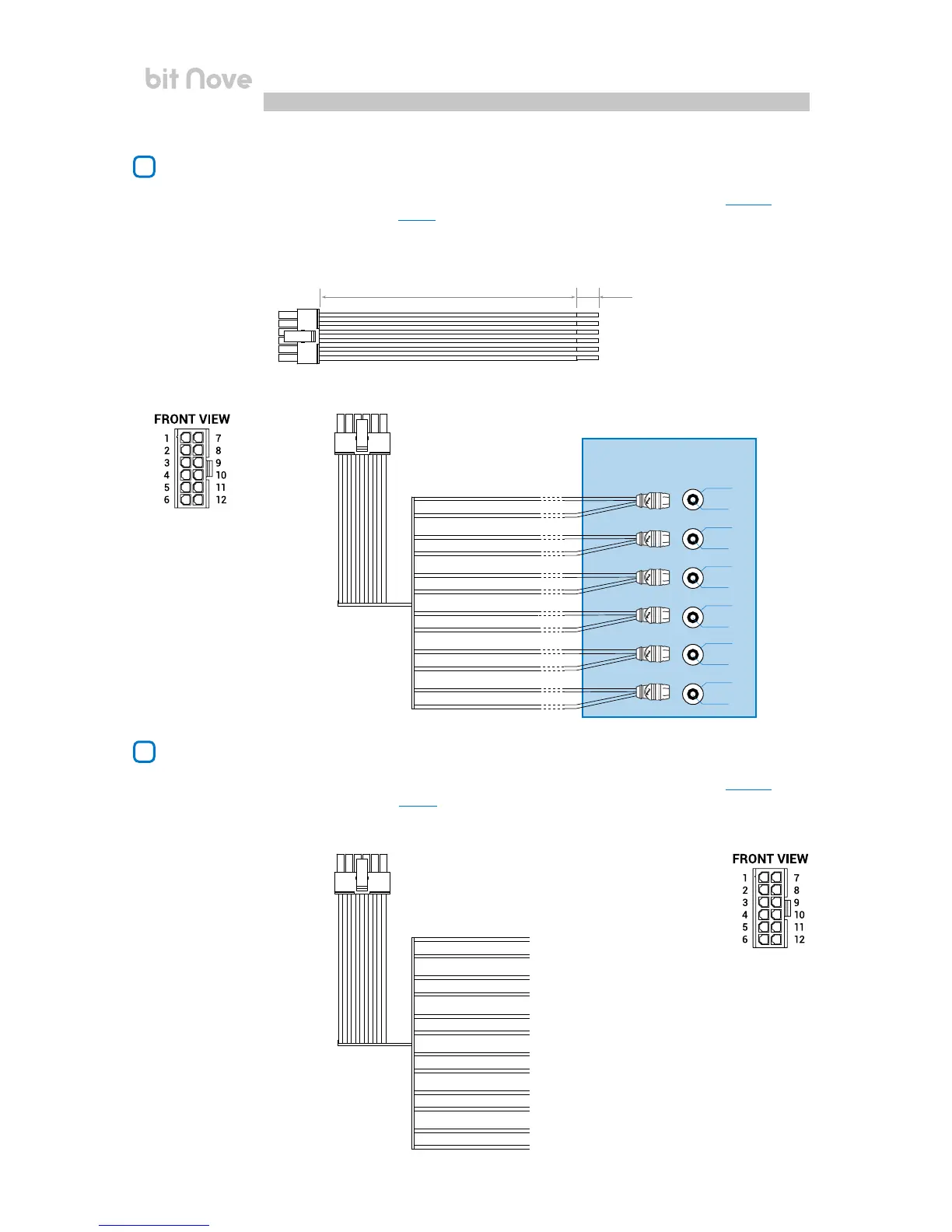

PRE INPUT
The bit Nove features 6 Pre IN signal inputs to connect the preamplified signal cables from the analog Master
source. The PC Software provides the ability to customize the inputs by assigning the desired input
(see 7.2.5).
Adjustable sensitivity from 1.2 to 8 V RMS
(see 4.8). The cable provided to be connected to the source Pre Out outputs
must be wired with RCA connectors, or replaced with an optional input cable.
SPEAKER INPUT
The bit Nove features 6 SPEAKER IN signal inputs to connect the amplified signal cables from the analog master
source. The PC Software provides the ability to customize the inputs by assigning the desired input
(see 7.2.5).
Adjustable sensitivity from 3 to 20 V RMS
(see 4.8).
3
4
200 mm 10 mm
12: white IN1+
IN1
RCA CABLE ADAPTER
(NOT SUPPLIED)
IN1-
IN2-
IN3-
IN4-
IN5-
IN6-
IN1+
IN2+
IN3+
IN4+
IN5+
IN6+
IN2
IN3
IN4
IN5
IN6
6: white/black IN1-
11: gray IN2+
10: green IN3+
9: violet IN4+
8: cyan IN5+
7: orange IN6+
5: gray/black IN2-
4: green/black IN3-
3: violet/black IN4-
2: cyan/black IN5-
1: orange/black IN6-
12: white IN1+
6: white/black IN1-
11: gray IN2+
10: green IN3+
9: violet IN4+
8: cyan IN5+
7: orange IN6+
5: gray/black IN2-
4: green/black IN3-
3: violet/black IN4-
2: cyan/black IN5-
1: orange/black IN6-
