Audison Bit Nove - Input Signals

10
USER’S MANUAL
bit Nove /
5.2 INPUT SIGNALS

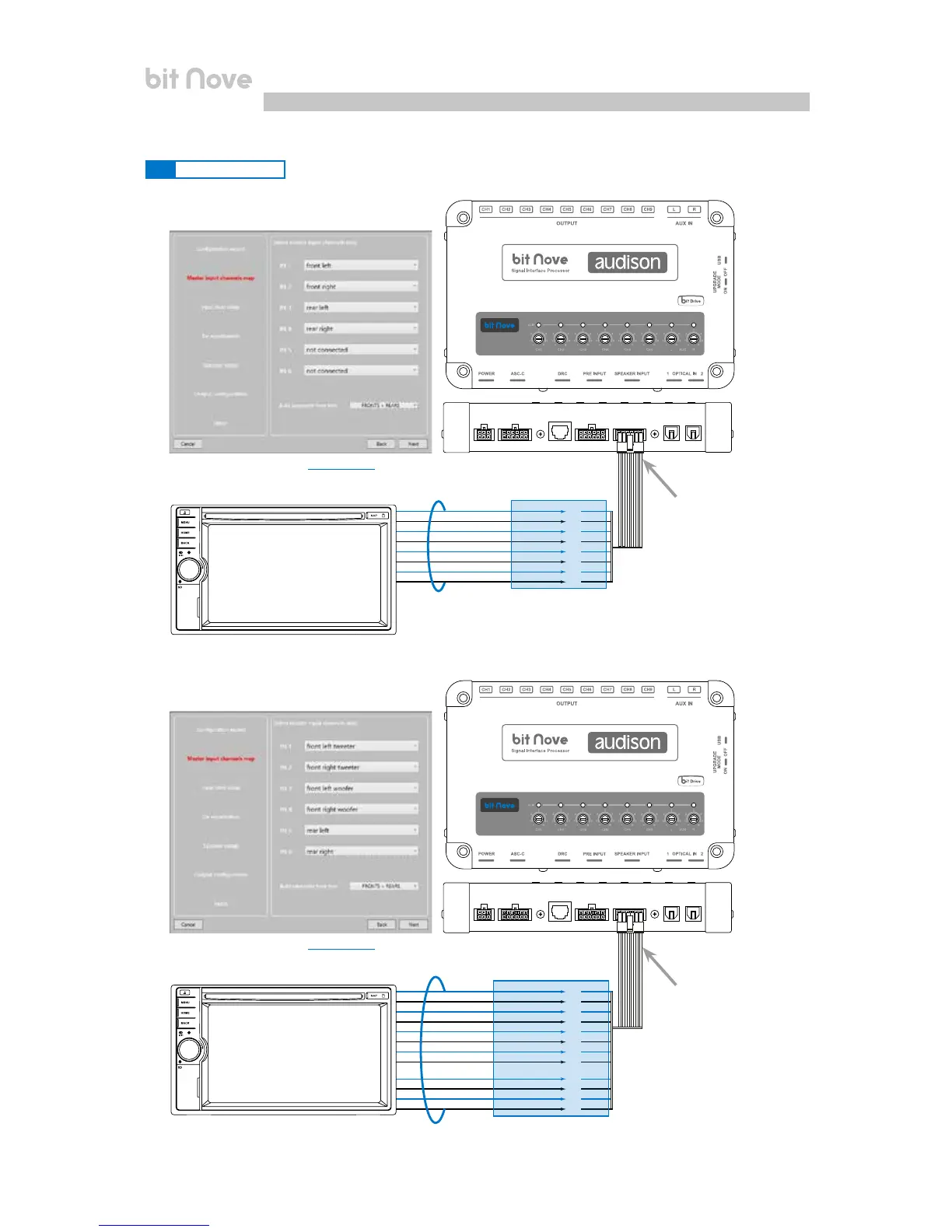

1. HI-LEVEL INPUTS FRONT + REAR
Front Left +
PCSoftwareconguration (see sec. 7.2.5)
PCSoftwareconguration (see sec. 7.2.5)
Front Left TW +
IN 1 +
IN 1 +
Front Left -
Front Left TW -
IN 1 -
IN 1 -
Front Right +
Front Right TW +
IN 2 +
IN 2 +
Front Right -
Front Right TW -
IN 2 -
IN 2 -
Rear Left +
Front Left WF +
Rear Left +
IN 3 +
IN 3 +
IN 5 +
Rear Left -
Front Left WF -
Rear Left -
IN 3 -
IN 3 -
IN 5 -
Rear Right +
Front Right WF +
Rear Right +
IN 4 +
IN 4 +
IN 6 +
Rear Right -
Front Right WF -
Rear Right -
IN 4 -
IN 4 -
IN 6 -
Hi-Level Speaker Output
Input sensitivity
3 ÷ 20 VRMS
Input sensitivity
3 ÷ 20 VRMS
HEAD UNIT
HEAD UNIT
Hi-Level Speaker Output
2. HI-LEVEL INPUTS TWO WAY FRONT + REAR
