USER’S MANUAL
bit Nove /

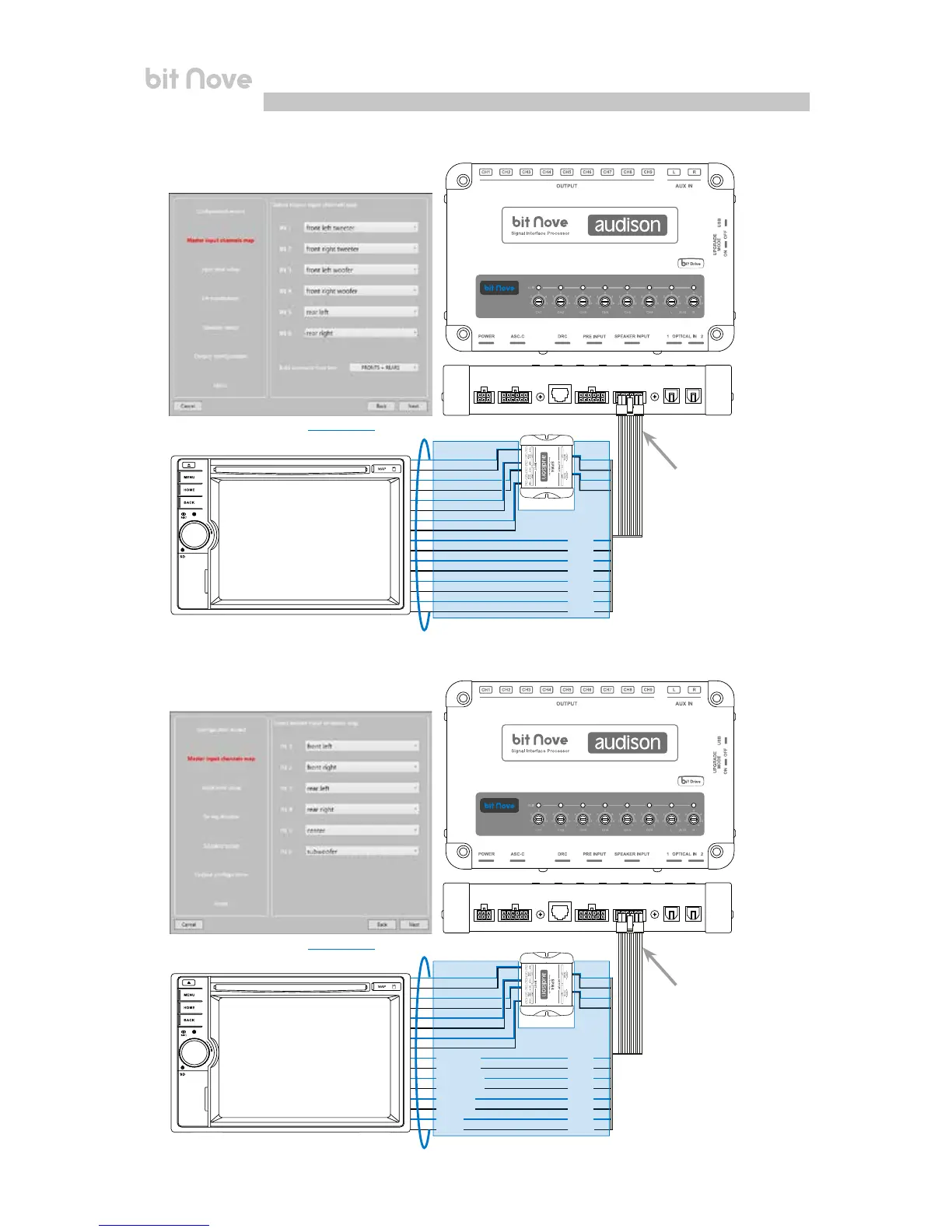

4. HI-LEVEL INPUTS TWO WAY FRONT + REAR + CENTER + SUB
Front Left TW +
Front Left TW +
Front Left WF +
Rear Left +
IN 1 +
IN 1 +
Front Left TW -
Front Left TW -
Front Left WF -
Rear Left -
IN 1 -
IN 1 -
Front Right TW +
Front Right TW +
Front Right WF +
Rear Right +
IN 2 +
IN 2 +
Front Right TW -
Front Right TW -
Front Right WF -
Rear Right -
IN 2 -
IN 2 -
Front Left Mid +
Front Left WF +
Rear Left +
Center +
IN 3 +
IN 3 +
IN 5 +
IN 5 +
Front Left Mid -
Front Left WF -
Rear Left -
Center -
IN 3 -
IN 3 -
IN 5 -
IN 5 -
Front Right Mid +
Front Right WF +
Rear Right +
Sub +
IN 4 +
IN 4 +
IN 6 +
IN 6 +
Front Right Mid -
Front Right WF -
Rear Right -
Sub -
IN 4 -
IN 4 -
IN 6 -
IN 6 -
Hi-Level Speaker Output
Hi-Level Speaker Output
3. HI-LEVEL INPUTS THREE WAY FRONT + REAR
PCSoftwareconguration (see sec. 7.2.5)
PCSoftwareconguration (see sec. 7.2.5)
Input sensitivity
3 ÷ 20 VRMS
Input sensitivity
3 ÷ 20 VRMS
HEAD UNIT
HEAD UNIT
SPM 4
SPM 4
