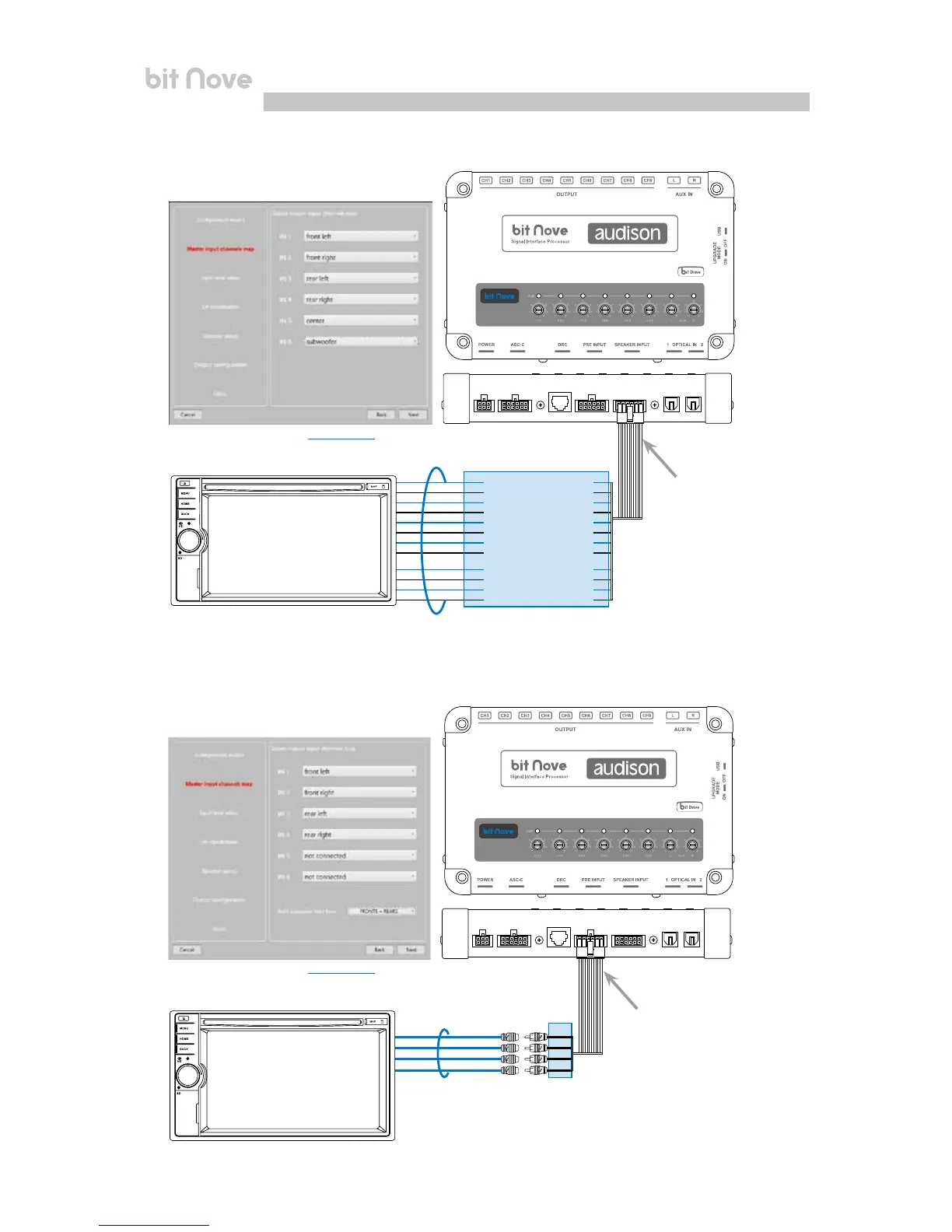

5. HI-LEVEL INPUTS FRONT + REAR + CENTER + SUB
Hi-Level Speaker Output
Front Left TW + IN 1 +
Front Left TW - IN 1 -
Front Right TW + IN 2 +
Front Right TW - IN 2 -
Front Left WF +
Rear Left +
IN 3 +
IN 5 +
Front Left WF -
Rear Left -
IN 3 -
IN 5 -
Front Right WF +
Rear Right +
IN 4 +
IN 6 +
Front Right WF -
Rear Right -
IN 4 -
IN 6 -
6. PRE INPUTS FRONT + REAR
Front Left IN 1
Front Right
IN 2
Rear Left
Rear Right
IN 3
IN 4
PRE OUT
PCSoftwareconguration (see sec. 7.2.5)
PCSoftwareconguration (see sec. 7.2.5)
Input sensitivity
3 ÷ 20 VRMS
Input sensitivity
1.2 ÷ 8 VRMS
HEAD UNIT
HEAD UNIT
