4. Close eccentric disc again using a spanner (width across flats 10).
6.3. Mechanical position indicator: set

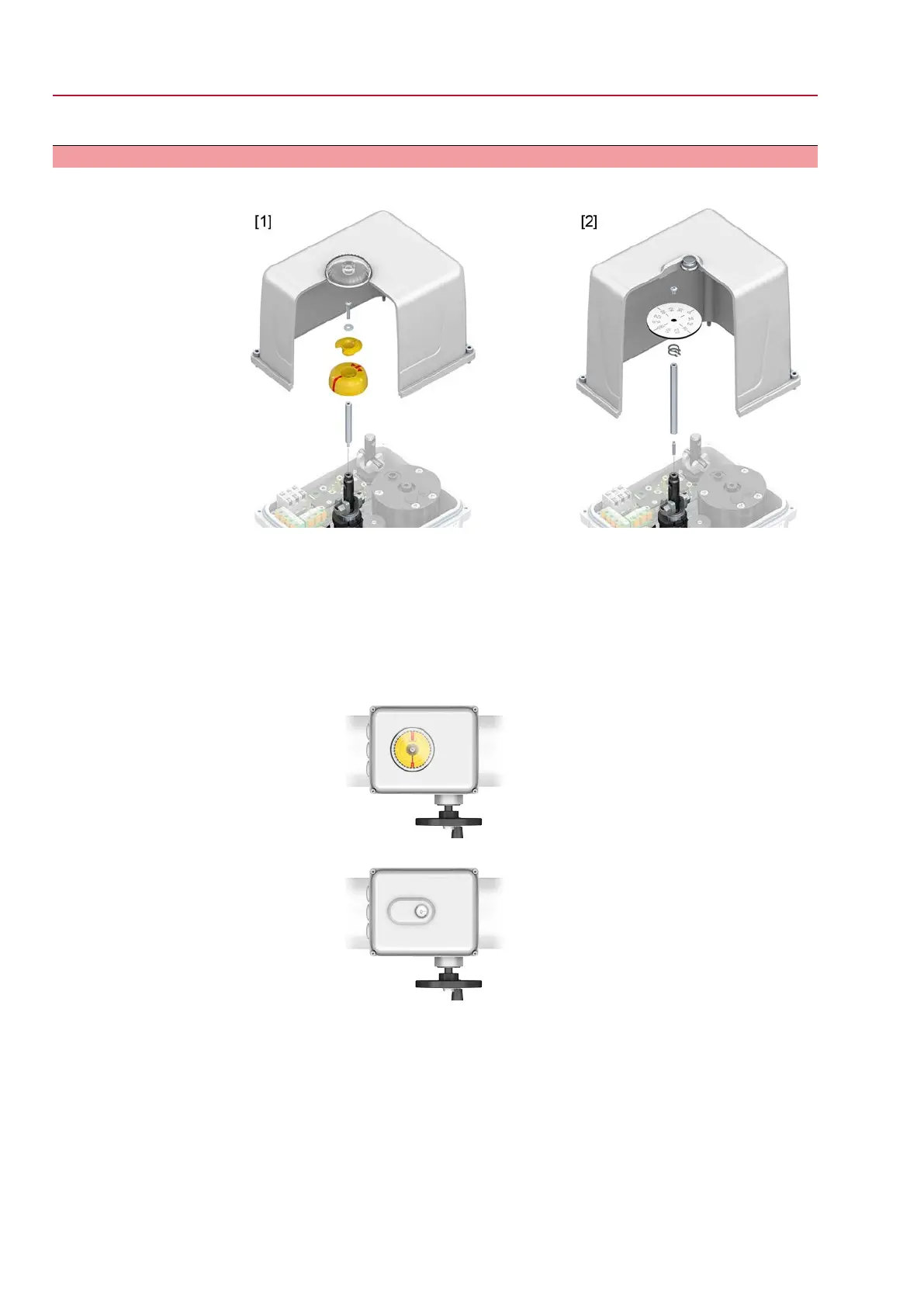

Figure 22: Versions mechanical position indicator
[1] Version with trailing pointer
[2] Version with rotation angle scale
The mechanical position indicator is located below the hood.
1. Operate actuator to end position CLOSED.
2. Loosen screw at trailing pointer or rotation angle scale.
3. Set trailing pointer or rotation angle scale:
→
Turn trailing pointer perpendicular to the pipe or until end stop.
→
Set rotation angle scale to 0° (for end position = CLOSED).
4. Fasten screw at trailing pointer or rotation angle scale.
Further information on indication: ➭ page 22, Mechanical position indicator
