2. Short description
Part-turn actuator
Definition in compliance with EN 15714-2/EN ISO 5211:
A part-turn actuator is an actuator which transmits a torque to the valve for less than
one full revolution. It need not be capable of withstanding thrust.

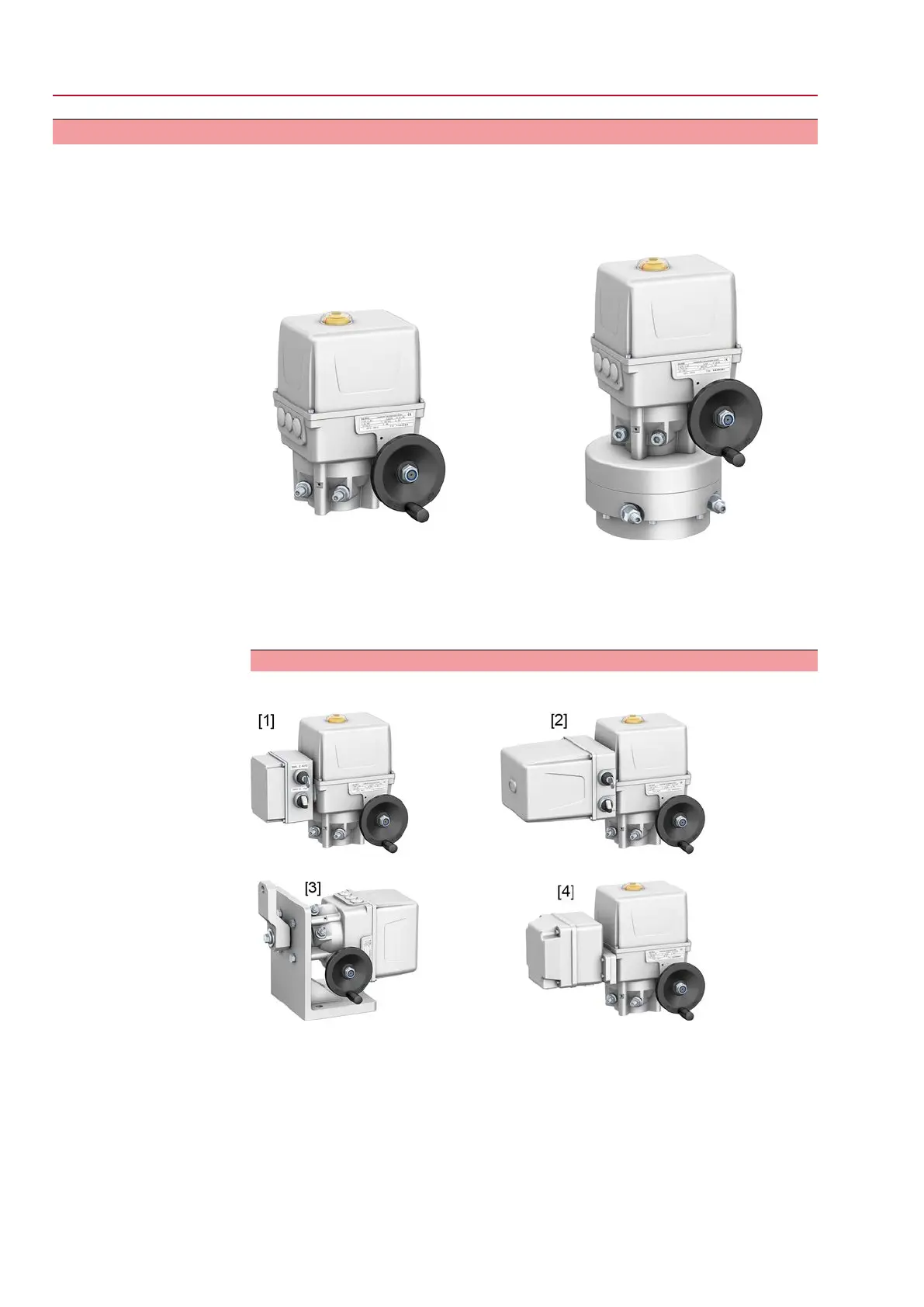

AUMA part-turn actuator Figure 1: AUMA part-turn actuator EQ 150 and EQ 600
AUMA part-turn actuators EQ 40 – EQ 600 are driven by an electric motor. For control
in motor operation and for processing the actuator signals, controls are integrated
within the housing. A handwheel is provided for occasional manual operation.
The swing angle is limited by internal end stops. Switching off in end positions may
be performed either by limit or torque seating.
Product variants
Figure 2:
[1] EQ with VSE local controls
[2] EQ with FSC20 emergency operation module/PEL-DS transformer housing
[3] EQ with base and lever
[4] EQ with KS1 compact connector
6
EQ 40 – EQ 150
Short description EQ 300 – EQ 600
