AUMA SAEx 16.2 Operation Instructions

Approval plate in explosion-proof version

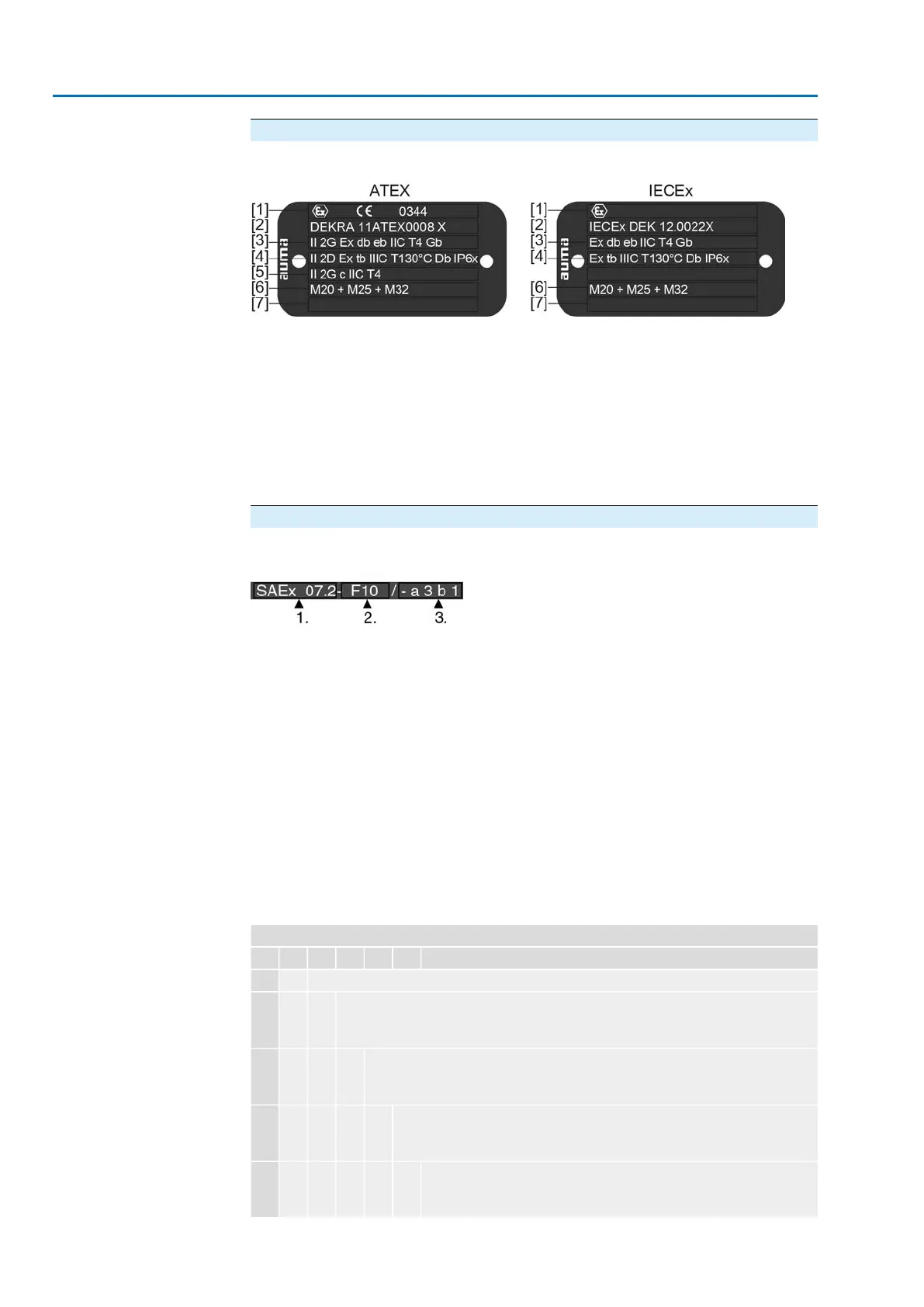

Figure 4: Approval plates in explosion-proof version (examples)
[1] Ex symbol, CE mark, number of test authority
[2] Ex certificate (number)
Classification:
[3] Electrical gas explosion protection
[4] Electrical dust explosion protection
[5] Non-electrical explosion protection
[6] Threads for line bushings at electrical connection
[7] Not used
Description referring to name plate indications
Type designation Figure 5: Type designation (example)
1. Type and size of actuator
2. Flange size
3. Ex marking
Type and size
These instructions apply to the following devices types and sizes:
●
Type SAEx: Multi-turn actuators for open-close duty
Sizes: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
Type SAREx = Multi-turn actuators for modulating duty
Sizes: 07.2, 07.6, 10.2, 14.2, 14.6, 16.2
●
Type ACExC = AUMATIC actuator controls
Sizes: 01.2
Ex marking
Table 1:
Marking for explosion protection (example of /-a3b1)
1b3a–
Not used–
Motor type
a = ADX or VDX: 3-phase AC motor
b = AEX, ACX, VEX, VCX: 1-phase AC motor
a
Protection type of electrical connection
3 = Terminal compartment Ex e increased safety
4 = Terminal compartment Ex d flameproof enclosure
3
Protection type of position transmitter
a = Without intrinsically safe electric circuit
b = Electric circuit Ex i Intrinsic safety (RWG 5020.2Ex)
b
Protection type of fieldbus
1 = Without intrinsically safe Ex ic fieldbus connection
3= Ex ic intrinsically safe fieldbus connection
1
10
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Identification ACExC 01.2 Non-Intrusive Profinet
