AUMA SAEx 16.2 Operation Instructions

Table 35:
Secondary fuses F3 (internal 24 V DC supply)
AUMA art. no.F3G fuse according to IEC 60127-2/III
5 x 20 mmSize
K006.1062.0 A T; 250 VVoltage output (power supply unit) = 24 V
K006.1062.0 A T; 250 VVoltage output (power supply unit) = 115 V
F4
Table 36:
Secondary fuse F4 (internal AC supply)
1)
AUMA art. no.F4G-fuse according to IEC 60127-2/III
5 x 20 mmSize
K001.1841.25 A T; 250 VVoltage output (power supply unit) = 24 V
——Voltage output (power supply unit) = 115 V
Fuse for: Switch compartment heater, reversing contactor control, PTC tripping device (at 24 V AC
only), at 115 V AC also control inputs OPEN, STOP, CLOSE
1)
F5
Automatic reset fuse as short-circuit protection for external 24 V DC supply for
customer (see wiring diagram)
11.3.2. Fuse replacement
11.3.2.1. Replace fuses F1/F2
Electric shock due to presence of hazardous voltage!
Failure to observe this warning results in death or serious injury.
→
Disconnect device from the mains before opening.
1. Remove electrical connection from actuator controls.

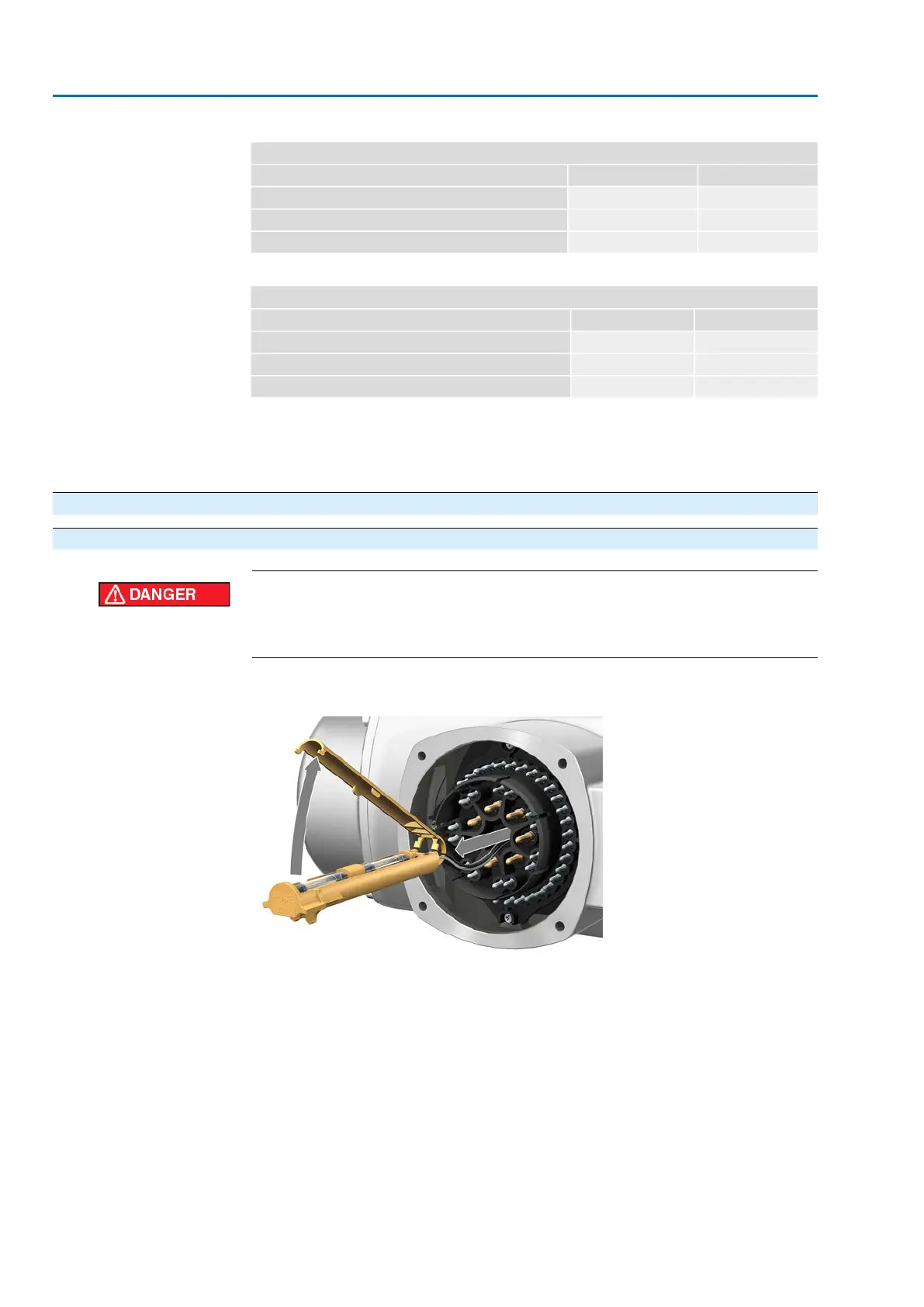

Figure 75:
2. Pull fuse holder out of pin carrier, open fuse cover and replace old fuses by
new ones.
78
SAEx 07.2 – SAEx 16.2 / SAREx 07.2 – SAREx 16.2 Control unit: electronic (MWG)
Corrective action ACExC 01.2 Non-Intrusive Profinet
