Set selector switch to position Remote control (REMOTE).
➥
Now, the actuator can be remote-controlled via fieldbus.
Information
For actuators equipped with a positioner, it is possible to change over between OPEN
- CLOSE control (Remote OPEN-CLOSE) and setpoint control (Remote SET-
POINT). For further information, please refer to the Manual (Operation and setting).
6.3. Menu navigation via push buttons (for settings and indications)
Menu navigation for display and setting is made via the push buttons [1 – 4] of the
local controls.
Set the selector switch [5] to position 0 (OFF) when navigating through the menu.
The bottom row of the display [6] serves as navigation support and explains which
push buttons [1 – 4] are used for menu navigation.

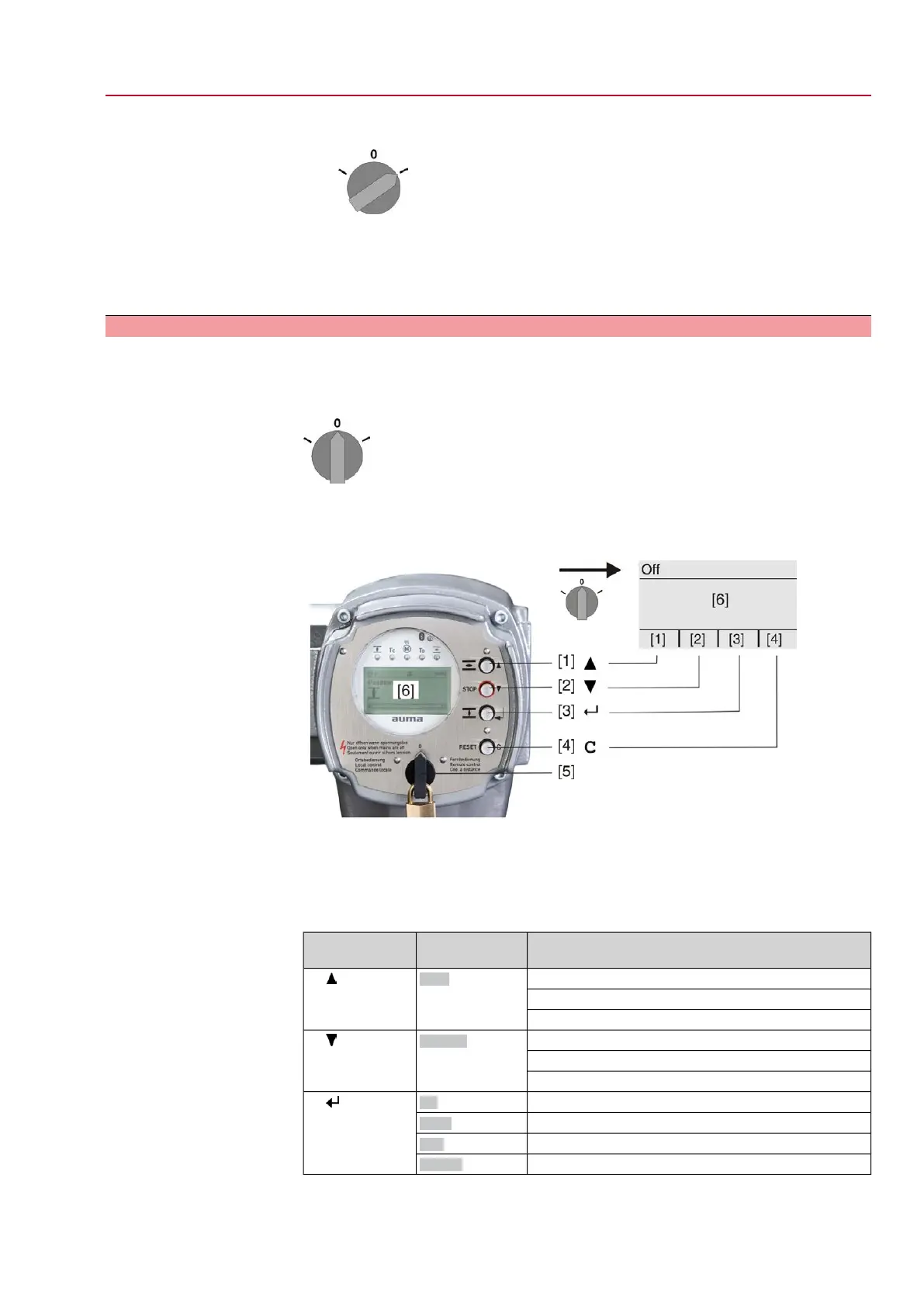

Figure 29:
[1–4] Push buttons or navigation support
[5] Selector switch
[6] Display
Table 20: Important push button functions for menu navigation
FunctionsNavigation sup-
port on display
Push buttons
Change screen/selection
Up ▲
[1]
Change values
Enter figures from 0 to 9
Change screen/selection
Down ▼
[2]
Change values
Enter figures from 0 to 9
Confirm selection
Ok
[3]
Save
Save
Enter <Edit> menu
Edit
Display more details
Details
35
SQ 05.2 – SQ 14.2 / SQR 05.2 – SQR 14.2 Control unit - electromechanical
AC 01.2 Intrusive Modbus RTU Operation
