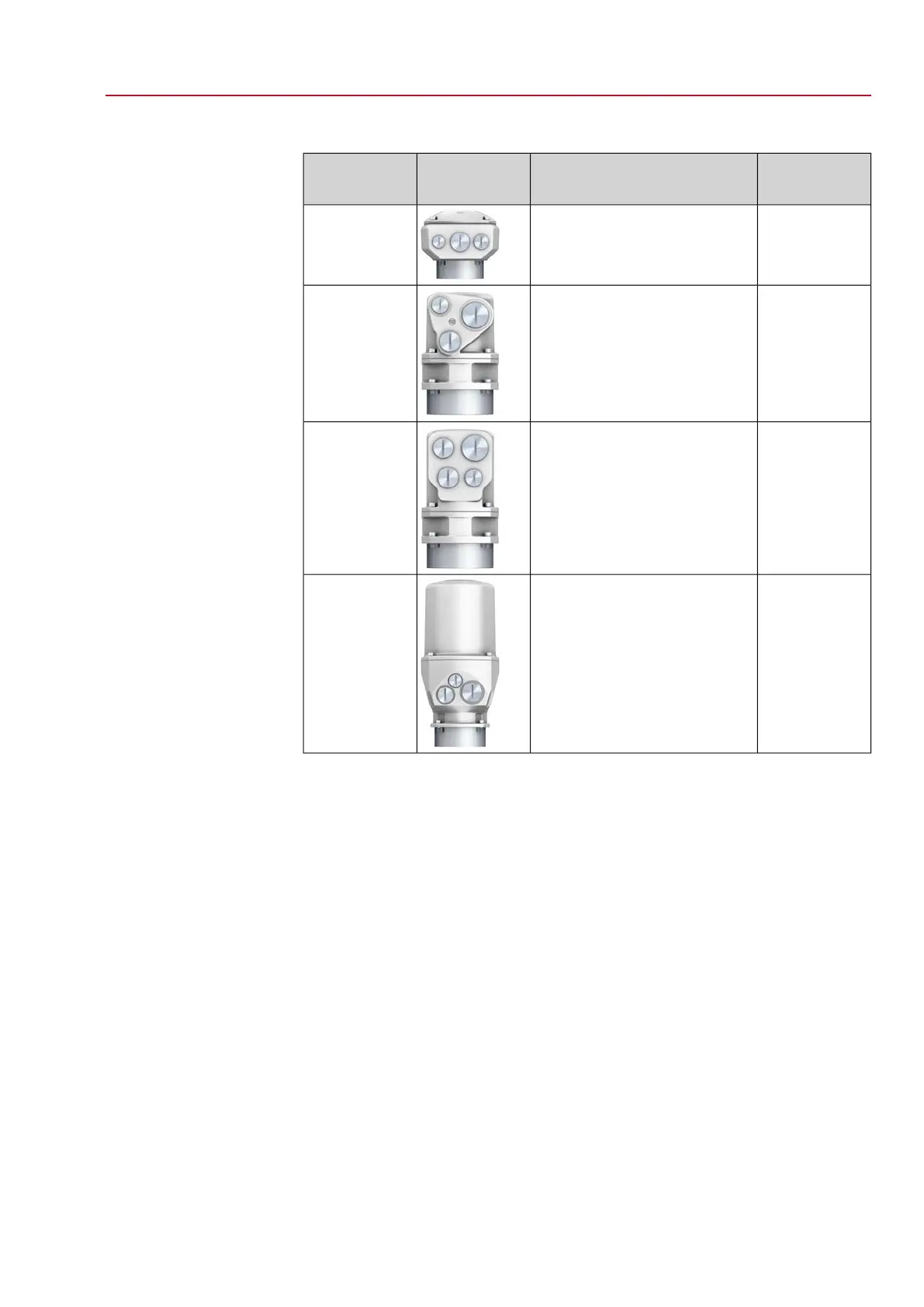

Table 15: Versions of the AUMA plug/socket connector
For description
and assembly
refer to chapter
PropertiesFigureElectrical con-
nection
➭ page 26,
KT/KM electrical
connection
Plug-in integral terminal connection
with enlarged terminal compartment
KT
➭ page 33,
KP/KPH electrical
connection
Plug/socket connector with terminal
board
KP
➭ page 33,
KP/KPH electrical
connection
Plug/socket connector with terminal
board and elevated terminal compart-
ment
KPH
➭ page 38, KES
electrical connec-
tion
Plug-in terminal connection with en-
larged terminal compartment
KES
