Aura JGSTATW2W - Installation - Hot Water Cylinder Thermostat (JGSTATW1)

Note: Optional - The JGSTATW1 can be configured for connection to a cylinder
thermostat. Please see Device Parameters on page 57. For additional wiring
centre information refer to Wiring Centre Instruction Manual.
15
www.speedfitUFH.co.uk

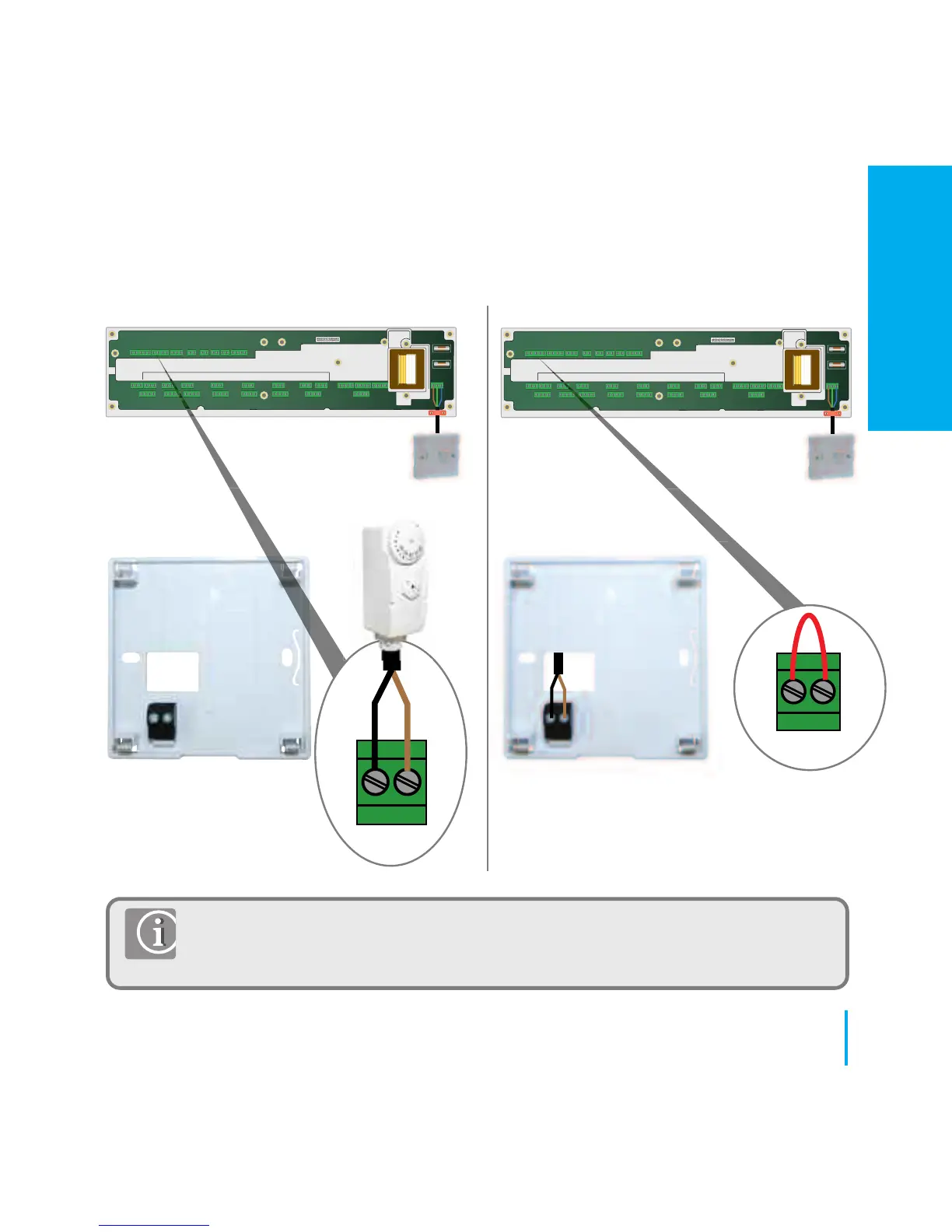

Installation - Hot Water Cylinder Thermostat (JGSTATW1)
WC connected cylinder
thermostat (Default).
HW Timer connected to
cylinder thermostat.
Link must
be fitted
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
IN OUT
Cylinder thermostat
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
IN OUT
INSTALLATION
