Aura JGSTATW2W - Installation - Hot Water Cylinder Thermostat (JGSTATW2)

Note: Optional - The JGSTATW2 can be configured for connection to a cylinder
thermostat. Please see Device Parameters on page 57. For additional wiring
centre information refer to Wiring Centre Instruction Manual.

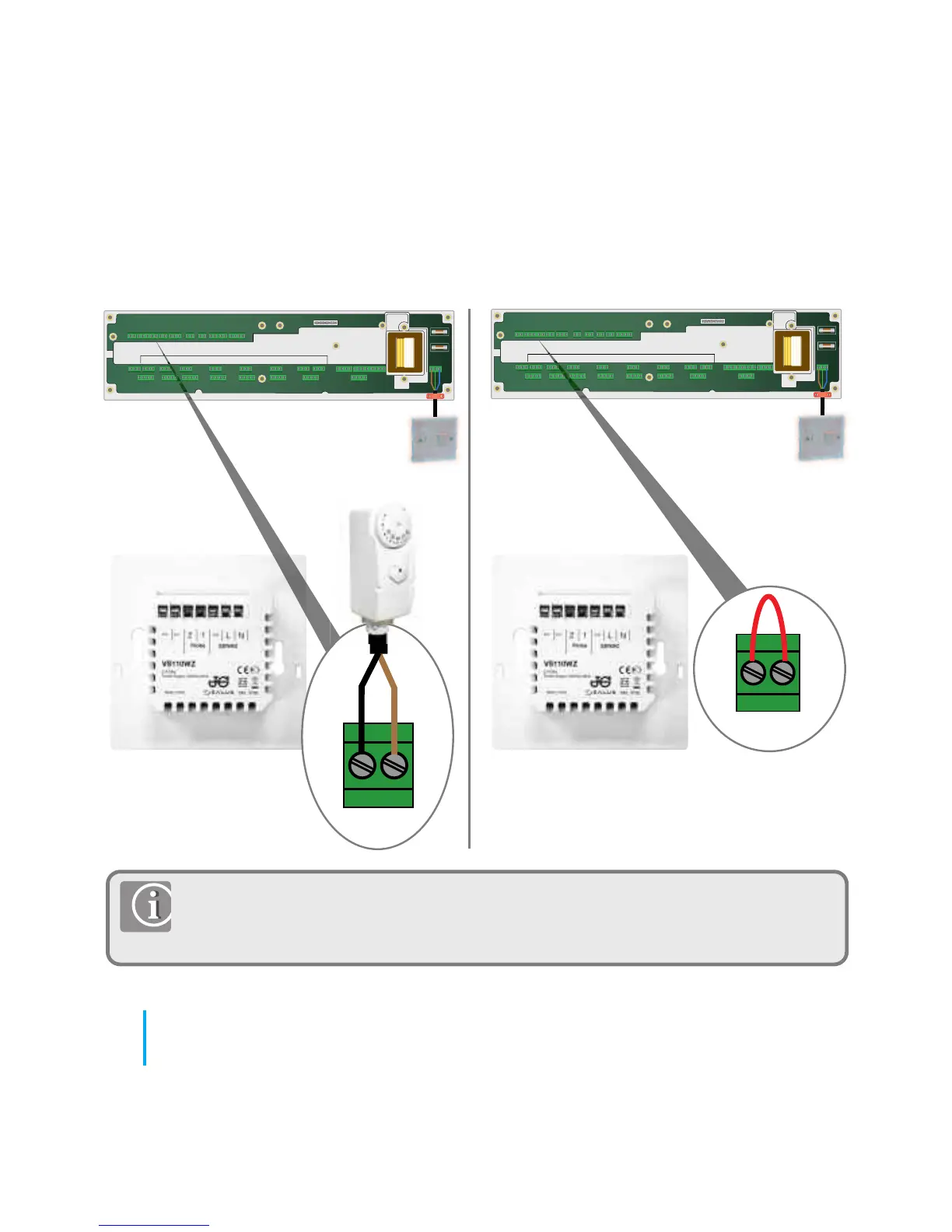

WC connected cylinder
thermostat (Default)
20
JGSTATW Instruction Manual
Installation - Hot Water Cylinder Thermostat (JGSTATW2)
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
IN OUT
Cylinder thermostat
ZONE 1
SL N L SL N L SL N L SL N L SL N L SL N L SL N LSL N L
ZONE 2 ZONE 3 ZONE 4 ZONE 5
ZONE 6 ZONE 7
ZONE 8
5 x 20mm
5 x 20mm
IN OUT
Link must
be fitted
HW Timer connected
to cylinder thermostat.
