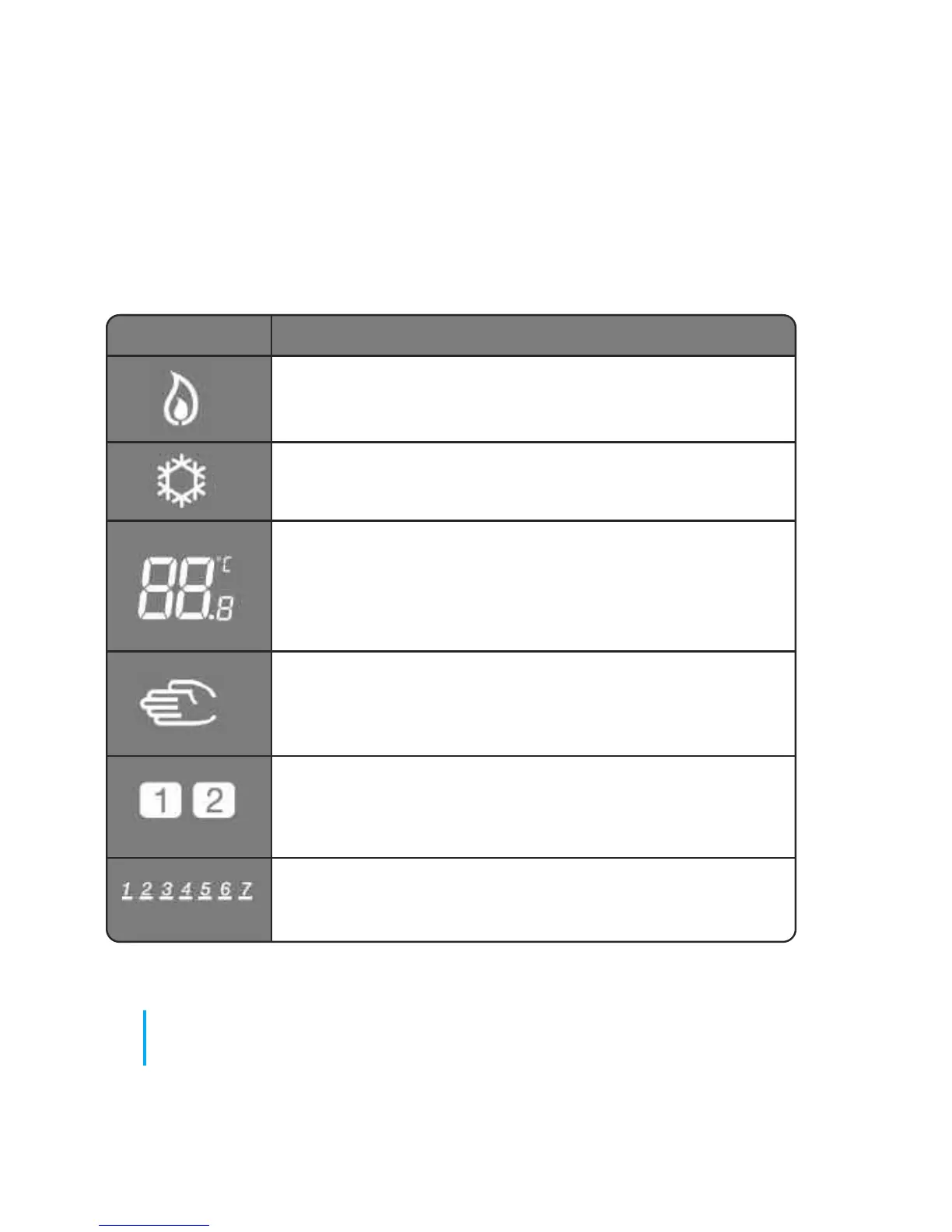

ICON FUNCTION
Heat indicator: Indicates demand for heat.
Cool mode indicator: Indicates cooling is required
(if applicable)
Temperature indicator:
Displays room temperature,
Set-temperature,
or other information.
Temporary manual override indicator: If the set
temperature is changed when in program mode,
the hand will appear until the next program start time.
Programs number indicator: Displayed in AUTO mode or
Temporary Override. The number indicates which program
is running.
Day indication: 1 = Monday
24
JGSTATW Installer Manual
Installation - LCD Graphics
