Aurora PVI-AEC-EVO - Page 97

PVI-AEC-WIND-DIR
-Vcc
+Vcc
AIn_RTN
AIn 1
(wind speed)
+Vcc_Heat
Ground
-Vcc_Heat
PVI-AEC-WIND-COMPACT
1
12
3
4
5
6
2
Note: The internal heater
(+Vcc_Heat and -Vcc_Heat) must be
supplied by supplementary power
supply. For more details about
internal heater refer to PVI-AEC-EVO
User Manual.

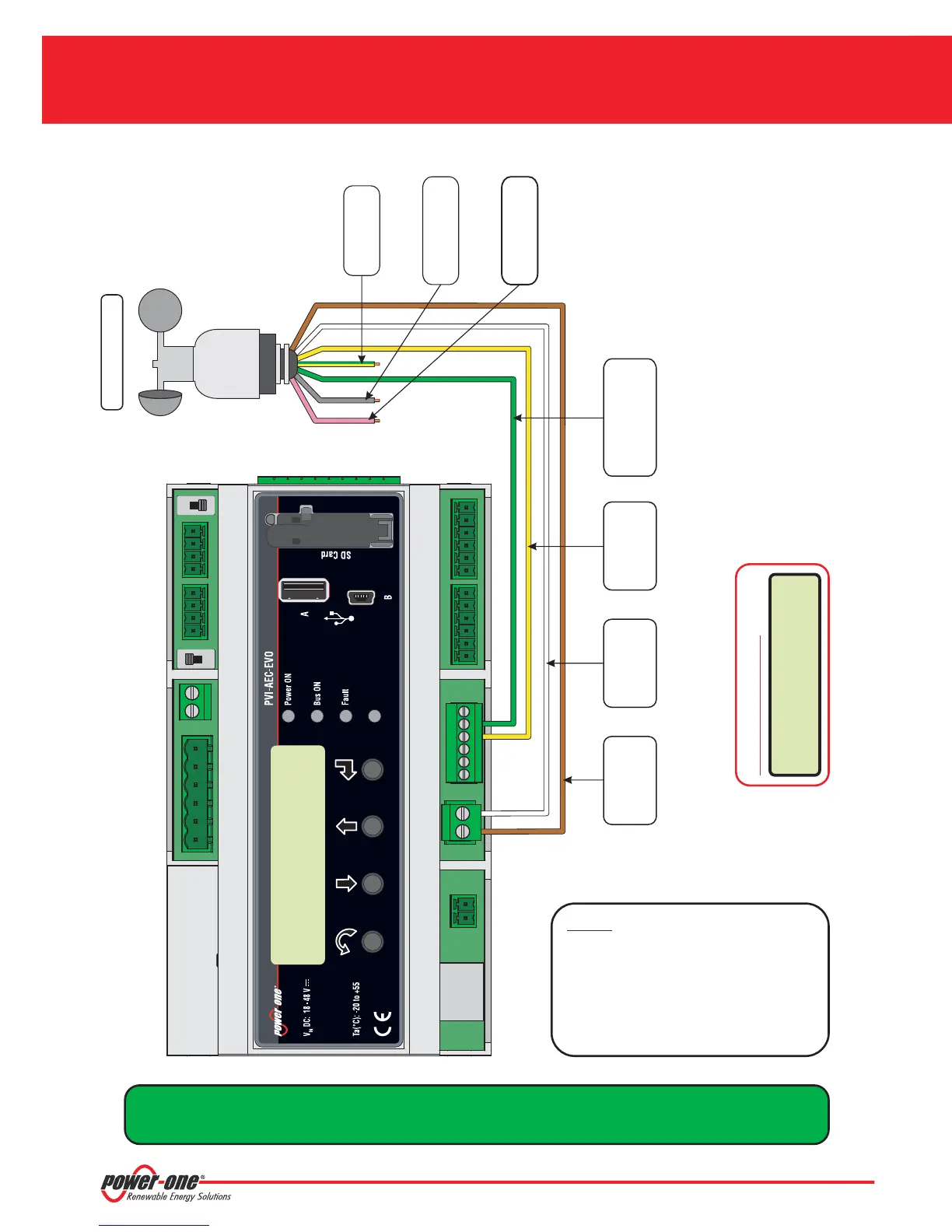

Wiring Diagrams for the Sensor PVI-AEC-WIND-COMPACT
>ANALOG INPUT1
wind-compact
*
Display Settings:
7 - APPENDIX
PVI-AEC-EVO / PVI-AEC-EVO LIGHT
QUICK INSTALLATION GUIDE
