Entering and exiting the operator’s cab.
Do not grab and pull the steering wheel in order to enter the operator’s cab, hold the
handles provided for this purpose and always support your foot on the step in order to
avoid slipping both when entering and exiting the cab.

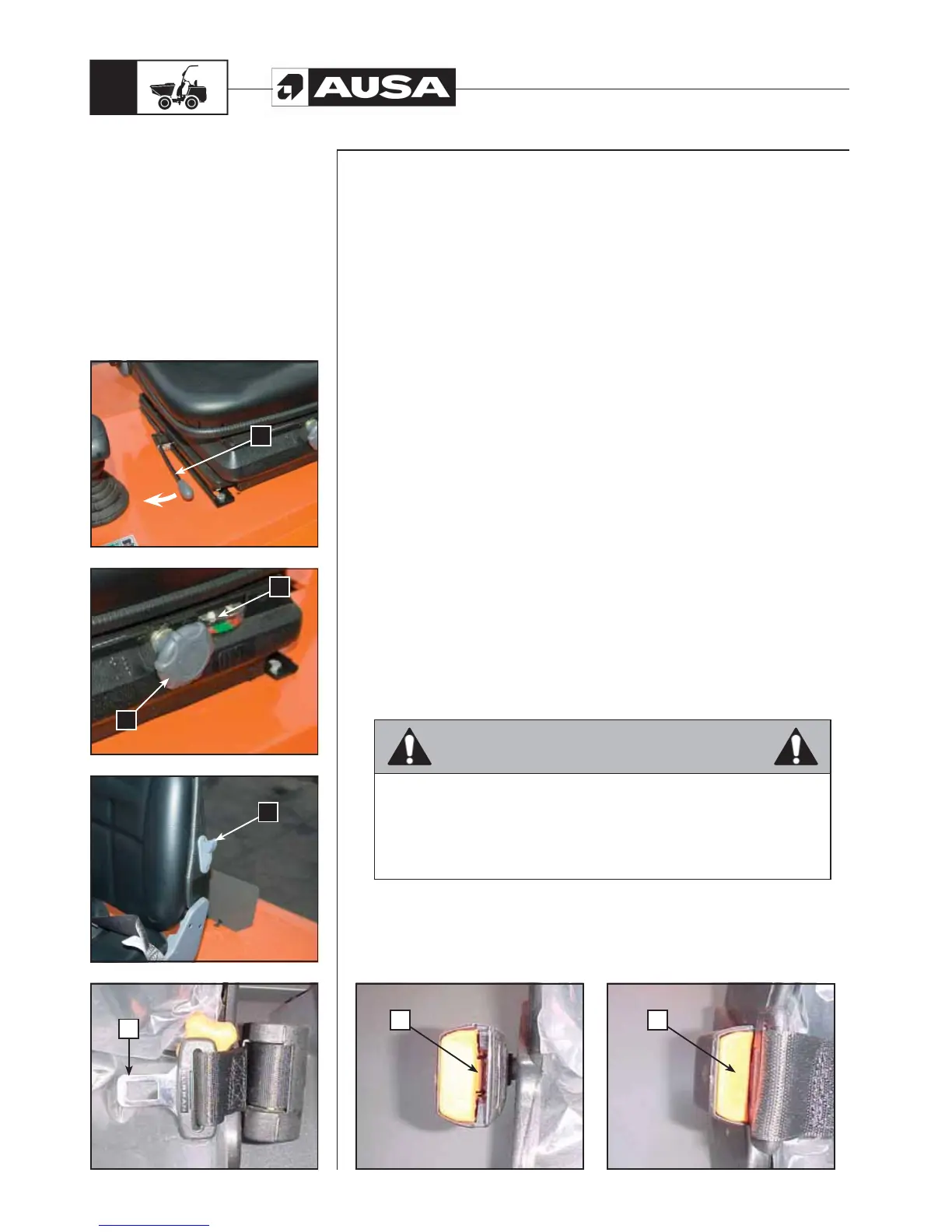

Seat adjustment (fig. 1, 2, 3)
Each day, before operating the dumper, adjust your seat to a position in which you feel
comfortable.
Pull the lever (a) to the right to unlock the seat. Slide the seat forward or backwards to
reach the desired position.
Releasing the leaver the seat locks.
The damping of the seat can be adjusted between 50 and 130 Kg, depending upon
the operator’s weight; to do so turn knob (b) clockwise or counter-clockwise in order to
adjust properly the seat damping.
For correct adjustment of the damping, with the operator sitting the needle (c) should
remain within the range of green scale into the gauge.
Using the lever (d) located on the left side of the seat backrest, the backrest inclination
can be changed. Pulling down the lever the backrest unlocks. Adjust the backrest and
release the leaver to lock again.
Ensure that you fasten your seatbelt.
Seatbelt (fig. 4, 5, 6)
To fasten the seatbelt, insert the snap (e) into the fastener (f) until your hear the locking
“click”.
To unfasten the seatbelts, press button (g).
The seat belt adapts the body of the passenger using it, giving them freedom of
movement but adjusting the belt to the physical constitution of the driver.
If the machine is parked on a steep slope, the reel could become locked; this is normal.
Additionally the reel curling device blocks the strap every time the strap is suddenly
pulled or in case of sharp braking, collisions or turning operations at high speed.
Checks
With the engine on and the dumper stopped, carry out the checks and tests indicated in
the PRE-OPERATION CHECK section of this manual.
WARNING
Before each period of use of the dumper, check the correct operation of
the steering, brakes, hydraulic controls, instruments, safety equipment and
direction control.
A machine which functions correctly is more efficient and could prevent
accidents.
Carry out all necessary adjustments or repairs before operating the dumper.
