D 900 AP / D 1000 AP / D 1000 APG
46

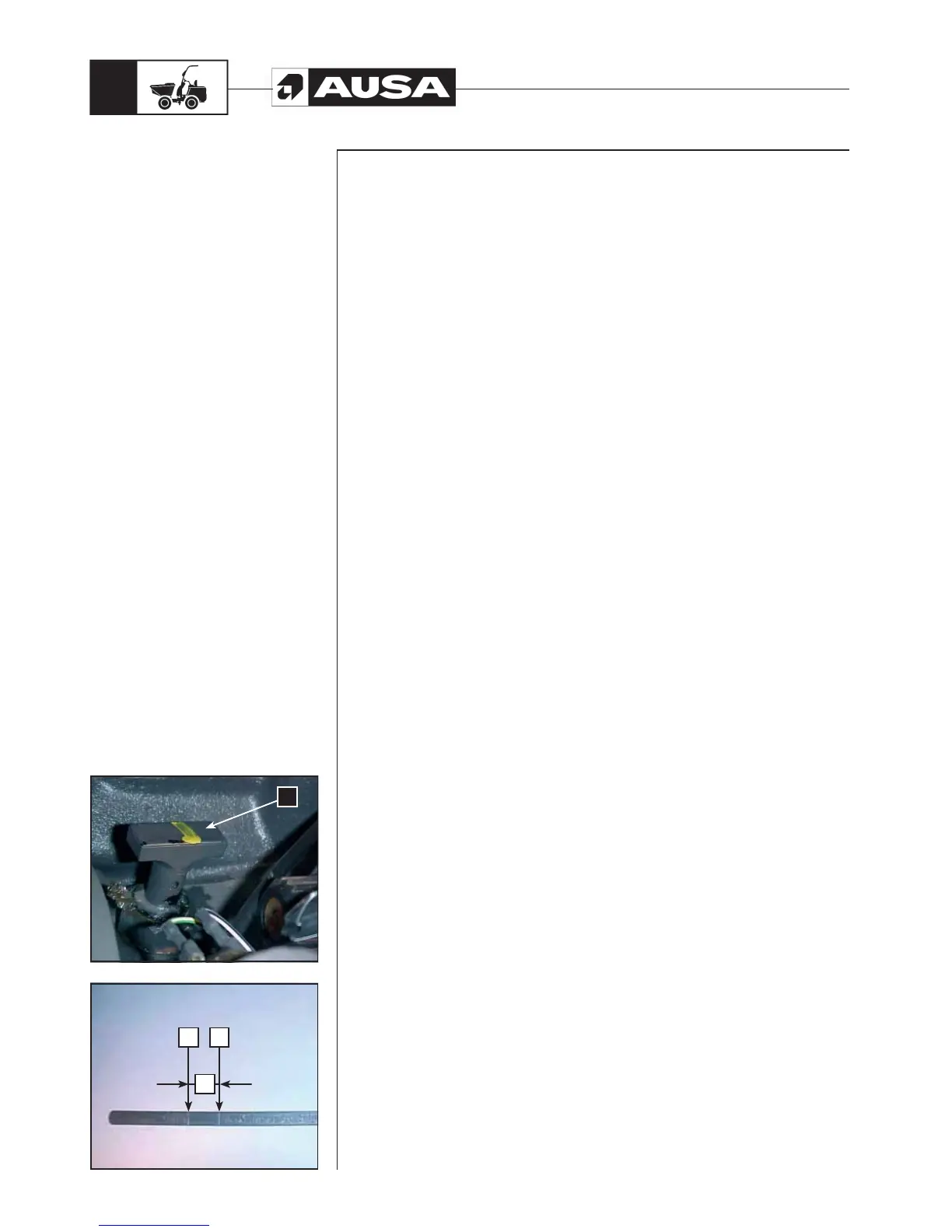

(fi g. 1)(fi g. 2)
6.- Gearbox and converter
 Gearbox and converter oil level (fig.1, 2)
Remove the dumper floor panel and access the upper part of the gearbox and the
converter.
a. Dipstick
Clean any spills.
With the vehicle on a level surface, the engine stopped and the oil cold, check the oil
level in the following way.
- Pull the oil level dipstick (a), remove it from its housing and clean it with a clean
cloth.
- Place the dipstick in its housing.
- Remove it once again from the housing and check the oil level. It must be up to
or equal to the upper level marked (fig. 2).
b. Full
c. Add
d. Operating range
- Add oil up to the upper level mark if required.
- To add oil, remove the dipstick and place a funnel in the same hole.
Do not exceed the maximum level.
- Correctly replace the dipstick.
Periodic
maintenance
operations
a
c
b
d
