AUSA D 900 AP - Fuses

D 900 AP / D 1000 AP / D 1000 APG
53

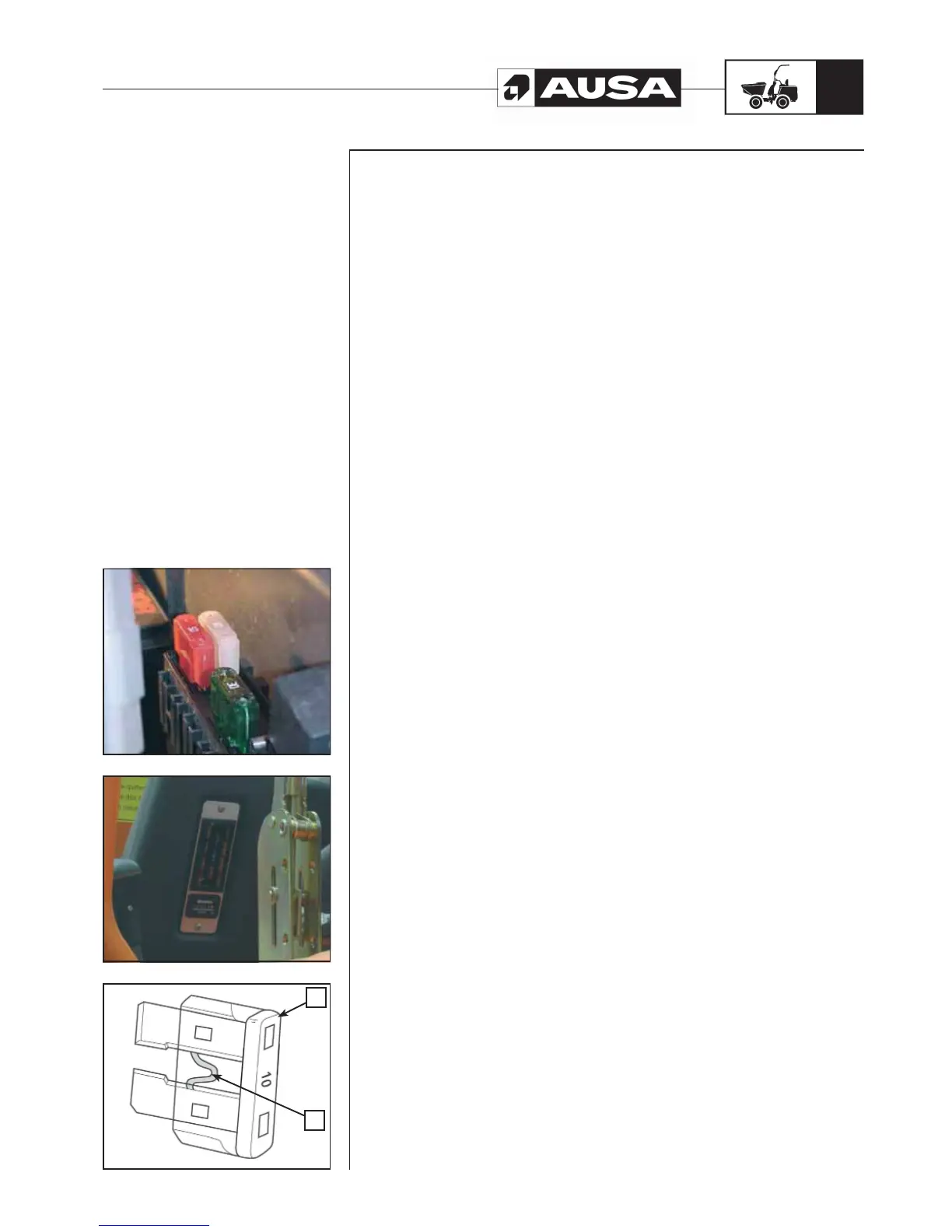

(fi g. 2)(fi g. 3) (fi g. 1)
 Fuses
If a fuse is damaged, replace it with another fuse of the same amps.
CAUTION:
Do not use fuses with higher amps, this may cause important damage. The fuses are
located in a box behind the battery and the instrument and control panel in front of the
operator.
 Fuses around the battery. (fig. 1)
FG1: Instrument and control panel supply fuse (50A)
FG2: + starter relay (40A)
FG3: + glow lamps (50A)
 Instrument and control panel fuses (fig. 2)
F1: Warning Lamps (7.5A)
F2: Reverse gear acoustic signal / position lights (5A)
F3: Position lights (5A)
F4: Low beam lights (10A)
F5: Road lights (10A)
F6: Joystick power (7.5A)
F7: Front / rear electrovalves + horn (10A)
F8: Starter motor / Stop solenoid (10A)
F9: Instrument and control panel lamps (7.5A)
F10: Rotating beacon (15A)
F11: Optionals fuse (10A)
To remove the fuses from the housing, remove the fuse box cover and extract the fuse.
 Checking the fuses (fig. 3)
Check wither the internal filament is fused.
TYPICAL PROCESS
a. Fuse
b. Check if it is fused.
Periodic
maintenance
operations
b
a
